Frigidaire 316022500 Indicator Light - AppliancePartsPros.com

Total
$0.00

Part Number:	AP2124115
MFG Part Number:	316022500
Made by:	Frigidaire

Our Price
$18.07
Regularly	You Save
~~$21.32~~	$3.25

Most Interesting

Hi all,you were very helpful in assisting me with replacing my clock timer,worked like a charm. Fantastic site. Unfortunately, we jostled the red "Speed Bake" Indicator Light (Part AP2124115) inadvertently while replacing the control panel/timer and cannot seem to figure out how to get it back in place. The stove only has small hole where the red indicator light goes (to right and top of control panel when facing back of stove). The part (which includes the red plastic indicator and actual lightbulb behind it) appears to be supposed to clip onto something to hold in place, but there is nothing to clip it onto. We tried to remove the red light and insert from front and it falls thru when you try to attach back to the white box on the other side. If you try to insert from back to front, nothing is able to hold the light assembly into place. Any ideas that might help us? Thanks you very much--again your sight is really fablulous. Given the great advice you shared to fix original problem, I thought I'd check in before I resorted to "superglue" or "duct tape" and see if you had run across this issue before?

Lisa H for Model Number GLGF386DCG

Answer Lisa, The red indicator is the light lens 5304462665 and should be pushed in from the front and the light would clip to it. If it is falling through then you will need a new light lens.

Was this helpful?

Please tell me on Electrolux part # 316022500 Light/Lamp Indicator the placement of the yellow and white wiring. I thought the yellow wire goes on the bottom and the white wire goes on top of Indicator, but when connected as stated the light does not work. The oven works fine.

Gene

Answer Hello Gene. That is correct. If the light is not working, then the switch may need to be replaced on the unit and not the light.

Was this helpful?

the hot surface light shorted out , now the oven won t work if I replace the indicator light will that fix the oven?

Rob for Model Number 790-92320302

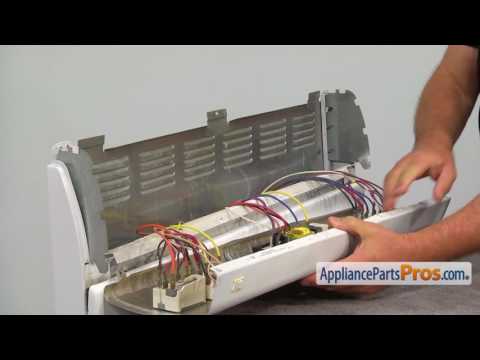

Answer Rob, Sorry, but no replacing the "hot surface" indicator light, will not solve the issue with the oven. You do need to remove the control panel rear cover panel and check for damaged wires in the control panel and make sure you have the proper power supply to the range. These are two separate, individual circuits, and the L1 circuit/wire is the common link at this point. Unless you have two issues as a coincidence. Good Luck and Thanks

Was this helpful?

Latest Questions

Does the small indicator light that fits through the panel and the switch it attaches to come with the whole piece?

Raeford B.

Answer Hello Raeford, if you need the bulb you will want to order part number 316022500. If you need the lens you will order part number 5304462665. Hope this helps!

Was this helpful?
