Note: This question is for the older version of this part, but we thought you might still find it helpful
When I push start light blinks but nothing starts.I replaced control module still same,then suddenly started. Hit cancel it drained,hit start light just blinks,would not start again. Thanks
Mark for Model Number FDB1050REM4
Answer Hello Mark. You need to check the door latch and check the door switches in the unit to see if they are bad on the unit. You can test this with a multi-meter TJMA-DMT3. Here is a link on how to use a multi-meter. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html
Note: This question is for the older version of this part, but we thought you might still find it helpful
My model # is not listed below, however is very close with a 3 instead of ast. For a latch assy part, is it possible it will work? I am having NO luck finding a replacement.
Wlm for Model Number 587.1526*900
Answer Hello WLM! The latch assembly used on model 587.15269900 is part number A00099902. Thanks!
Note: This question is for the older version of this part, but we thought you might still find it helpful

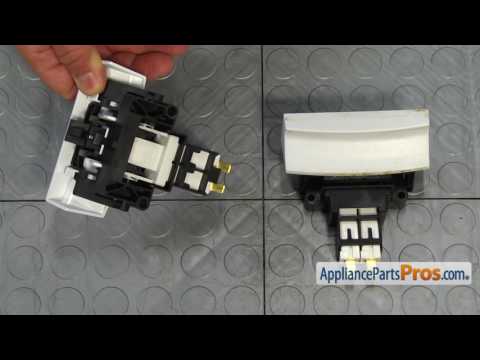

For Latch Assy Part Number: AP3867063, how can I test to confirm it is working? There are 4 points I can use a multimeter to test for closed loop.
Mict for Model Number FDB1500LFB0
Answer Hello Mict. Test each micro-switch. With the latch A00099902 attached to the strike, the switches should read closed. If not, you will need to replace the latch assembly. You can test this with a multi-meter TJMA-DMT3. Here is a link on how to use a multi-meter. Hope this helps. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html
