I am converting this range from LP to Natural gas and need to replace the orifices. Can you tell what part numbers and quantities I need.

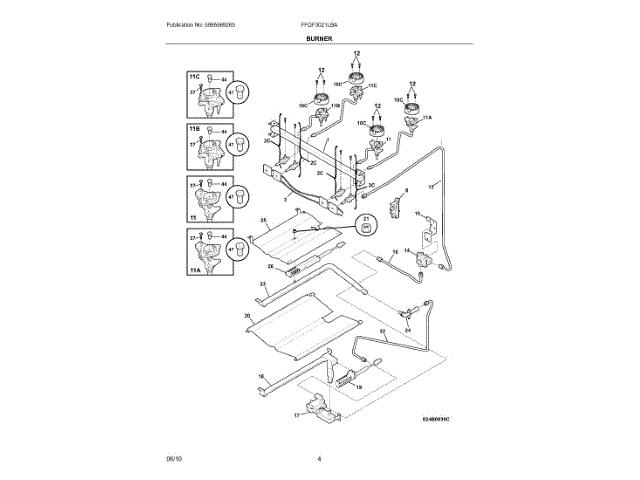

You will need the following orifices for the conversion back to natural gas on your unit. These will be for only the top as the bake and broil you will need to loosen the orifice 1 1/2 turns and close the air shutter to about 1/4 way open. Some minor adjustments may need to be made. The Regulator you will flip the pin under the cap from LP to Nat. The orifices required are right front 316527509, Right rear 316527504, Center and left front 316527500, and left rear 316527502. You need 1 each for each burner.
We need a L.P. 5000 and 9000 size surface burner orifice. Could you tell me the part #'s that we need?
Answer Hello Mark! Unfortunately, the manufacturer does not call for the LP orifices separate from the LP kit 316542415. Sorry about that!
