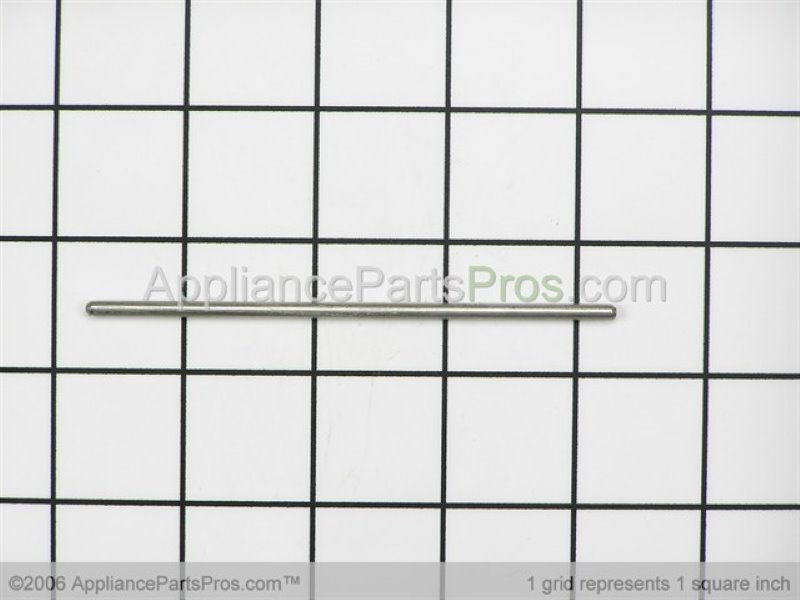

Hinge Pin

Part Number: AP3965493
MFG Part Number: 241688801
Made by: Frigidaire
Our Price
$15.86
Regularly You Save
$18.71 $2.85

In Stock — Ships Today Guaranteed

Questions & Answers

2 Questions & Answers



Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. See all items in Refrigerator Hinge.
Electrolux also makes various appliance models for Sears / Kenmore

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to find out if this part will work with your appliance.

Where can I find my model number?

More Product Images

Repair Help


Cross Reference Information

Part Number 241688801 (AP3965493) replaces 1196691, 5304421627, AH1526430, EA1526430, PS1526430.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Ask a Question

Most Interesting

The ice chute on my dispenser is broken, so I ordered a new one from your company. However, I can't install it because I can't get the hinge pin out. I've tried to knock it, pry it, and pull it out, but nothing works. Do you have any suggestions on how to get the pin out? Thanks.

Andy for Model Number Frigidaire PLHS267ZCB0

Answer

Was this helpful?

I am repairing the ice dispenser on a Kenmore refrigerator. The Door Assy-ice chute (5304421628) is broken - there is a small gear notch area on the right arm that snapped off. I have the part,. To install it I need to remove the Pin Hinge (5304421627). The ends of this pin are pretty securely installed in the Module-dispenser (5304421632). How is the Pin Hinge removed? Also, any tips on aligning the gear notches with the Damper and placement of the spring-torsion (5304421626) legs so they are in position to return the dispenser to closed.

Donald for Model Number 25351692100

Answer

Was this helpful?
