The glass top cracked on my range. Is this replacement the whole top or just the glass? Also how hard is it to replace it?
Answer Hello Betty! Yes, the smoothtop assembly 316531905 is the correct replacement. This is the whole top, glass and frame. It's not that difficult to replace the cooktop. You'll need to open the oven door and remove any screws securing the cooktop from underneath. Once those are removed you will be able to lift the top up and pull forward to remove the top. You'll need to disconnect any wiring. Install in reverse steps. Hope this helps you. Thanks.

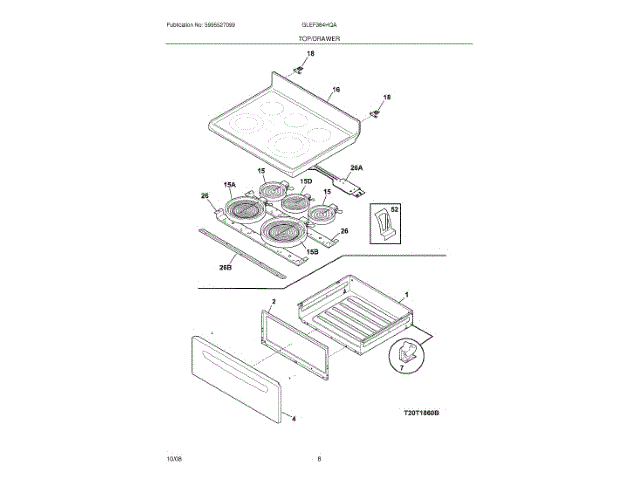

If I order the part number 16 in the diagram is this something I can put on myself or does it require professional installation
Yes you can replace this part yourself. You would want to disconnect the power and remove the screws in the door opening that hold the main top down. Once removed you will need to lift the top and slide forward and disconnect the harness. Once this is done you will place on a soft surface and transfer parts from one to the other and reinstall.
