This morning the right rear element went dead (confirmed by swapping the switches) so I'll need to replace it.

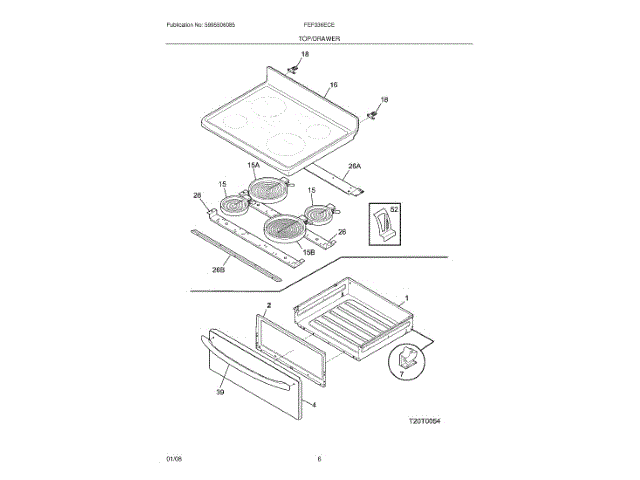

Will I need to remove the entire glass cook top unit to replace the element or is there a way to access from below? Not clear from the diagram.
To replace one of the top surface elements for this unit, you will need to remove the main top. To do this there will be 2 or 3 screws in the opening of the door at the top to remove. This will release the main top and allow you to lift the top and slide forward. Disconnect the harness and take top off and lay on a soft surface or towels. Remove the old element and install the new element.
Im getting error code 5f on all displays for each eye please help me?
Answer Hello. You had a power failure with the sabbath mode active. You will need to go into each element, using the owners manual, and turn on each element. The instructions on how to do this are in the owners manual.
I just purchased 2 replacement elements for our range. How do we replace?
Answer Hi. It will be easier to remove the door first. Then look under the top under the top Lt and Rt corners. Remove the hidden under the corner screws that mount the top to the cavity. Lift up on the glass top and support the top with the top support rod or a piece of wood. Do not damage the insulation on top of the inner cavity. Mark down the wire connections first so they are replaced efficiently. The bottom of the element has numbers that the element screws are mounted to 2 of them. Use a black marker to mark these screws so you use the same on the new elements. This will insure the centering of the burner when replaced under the glass top. There is a bracket running Lt and rt holding the burners to the bottom of the top itself. Release these bracket mount screws to replace the element itself. Look at the wire connections on the element sensor connections so you hook the wires to the same on the new elements. Thank You.
