Switch

Doug for Model Number Frigidaire Elec Dryer GLER341AS2

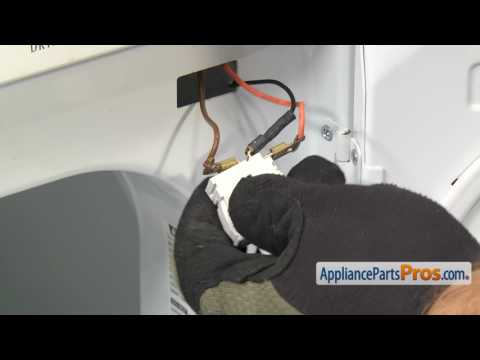

Answer Doug, If the door switch fell apart we would not have information as to how it goes back together. The wiring part of the door switch is as follows: on the switch there is a NC, C, and NO. The Brown wire will go to NC, the Blue wire will go to C or Com, and the Gray wire will go to NO.

Judd for Model Number Frigidaire Affinity Dryer FAQE7072LWO

Answer Hello Judd. If the switch is new, then you will need to check the wiring on the unit and make sure it is good. If the wiring is good, then you will need to replace the main board in the unit.

Judd for Model Number Frigidaire Affinity Dryer Model #FAQE7072LWO

Answer Hello Judd. Based on the information you provided, it sounds like the door switch 134813601 is bad and will need to be replaced on the unit.

John for Model Number frigidaire cfmv156dc b

Answer John, The monitor switch would be the one that would be closed and is the center switch. The door switch which is upper would only be closed when the door is closed and the primary switch which is bottom would be closed when the door is closed.

Carla for Model Number LER331DS0

Answer Hello Carla, We would need to know what wires came loose and if you could provide an email address we may be able to send information for you.

Jessica for Model Number fer6600es0

Answer Hello Jessica, The connections to the timer motor are: Terminal C will have Timer motor wire, White and Black from buzzer Terminal X will have Tan Terminal A will have Orange Terminal B will have Red Terminal H will have Black from signal switch
