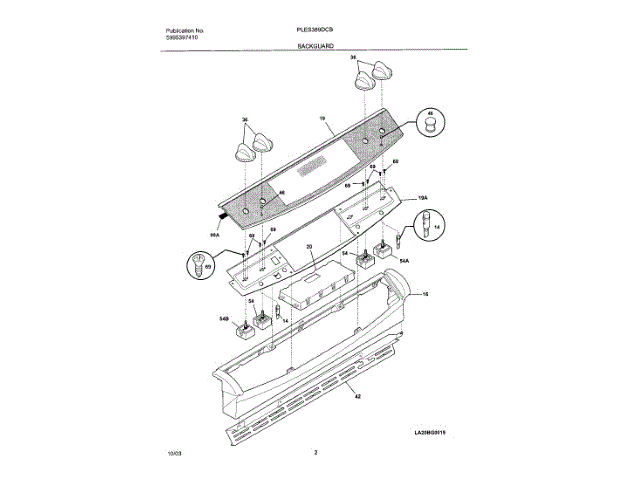

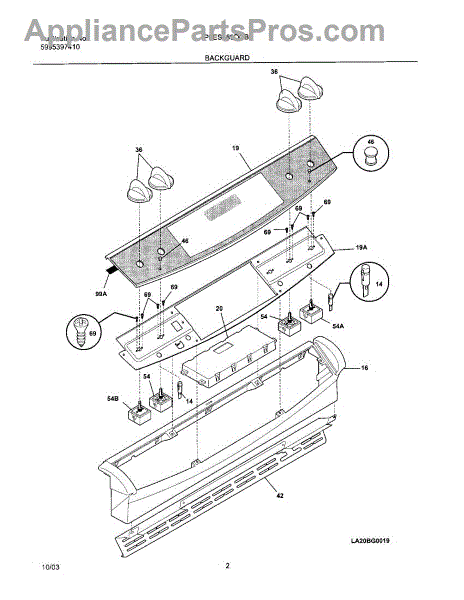

I bought the correct switch but the wireing pattern is different from the one I took out. Its a single burner rear right side of the stove. part# 903136-9010. can you help with the correct wireing.
Answer George, We have reviewed your parts order and you do hve the correct infinite switch based on your post. The switch 903136-9010 is designed to function with a six(6) inch, single ribbon element, rated at 1200 watts. It should have five(5) terminals on the back of the switch. L1 terminal, should have the black wire from the main harness attached to it. L2 terminal should have the red wire from the main harness attached to it. H1 Terminal should have a white#2 wire attached to it, that goes to one side of the element. The H2 terminal has the remaining white wire attached to it, and attaches to the sensor terminal of the element. And The P terminal will have the pink wire attached to it, thats the wire supplying power to the indicator light. Thanks and Good Luck
Error code F30 when trying to use oven what does this mean?
Answer Hi Harry. What is the exact model # of your stove or is it a wall oven? The code is a oven temperature probe needing replaced. This part # is 316217002. Probe,oven Temp - The Quick Connect May Be Different. Should It Not Fit, It Would Be Necessary To Cut Off Quick Connect And Use Porcelain Wire Nuts.
Part Number: AP3363354
made by FRIGIDAIRE
