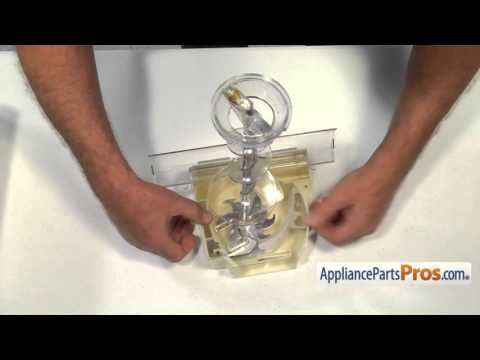

Sorry, I just asked about the placement order of blades and spacers on the icemaker and I looked at the digaram and noticed that there are 2 flat spacers and 2 stepped washers listed on the diagram but I have 3 flat washers and 2 stepped washers, how do I assemble it?
Answer Hi Frank. There are 2-different spacers used. behind the back blade there is a spacer part # WR2X4138. Inbetween the back blade and the center blade there is a "flat spacer" part # WR2X4139. Then between the middle blade and the front blade there art 2- combined spacers. First in front of the middle blade is flat part # WR2X4139. Then the spacer part # WR2X4138. In front of the (first) blade there is a auger nut part # WR01X10315. Log into our web site and place your model # in the RED search flag area. Scroll down on the lt. side to find the ice maker & dispenser diagram which shows the breakdown that I've just explained. Thank You.
I need the piece that opens the flapper to let the ice drop into the glass.
Answer Hi Carol. You will need 2 - pieces to insure proper closure of the door flapper. The ice door assembly is part # WR17X11653. The crank door recess is part # WR17X10706. Thank you.
