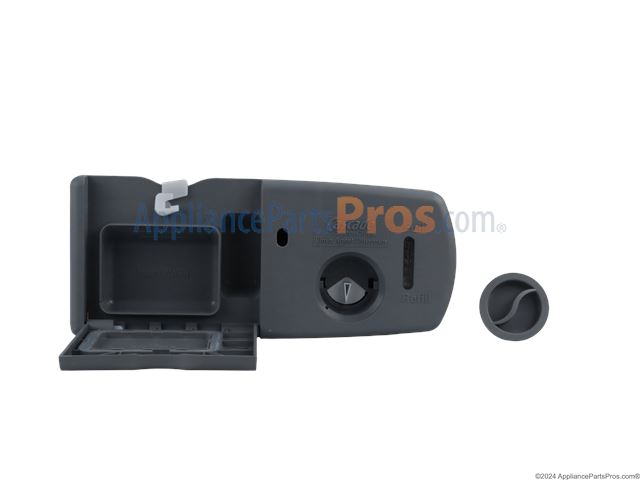

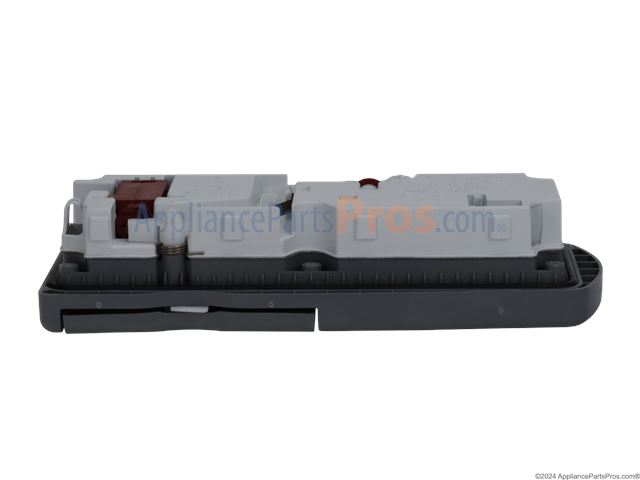

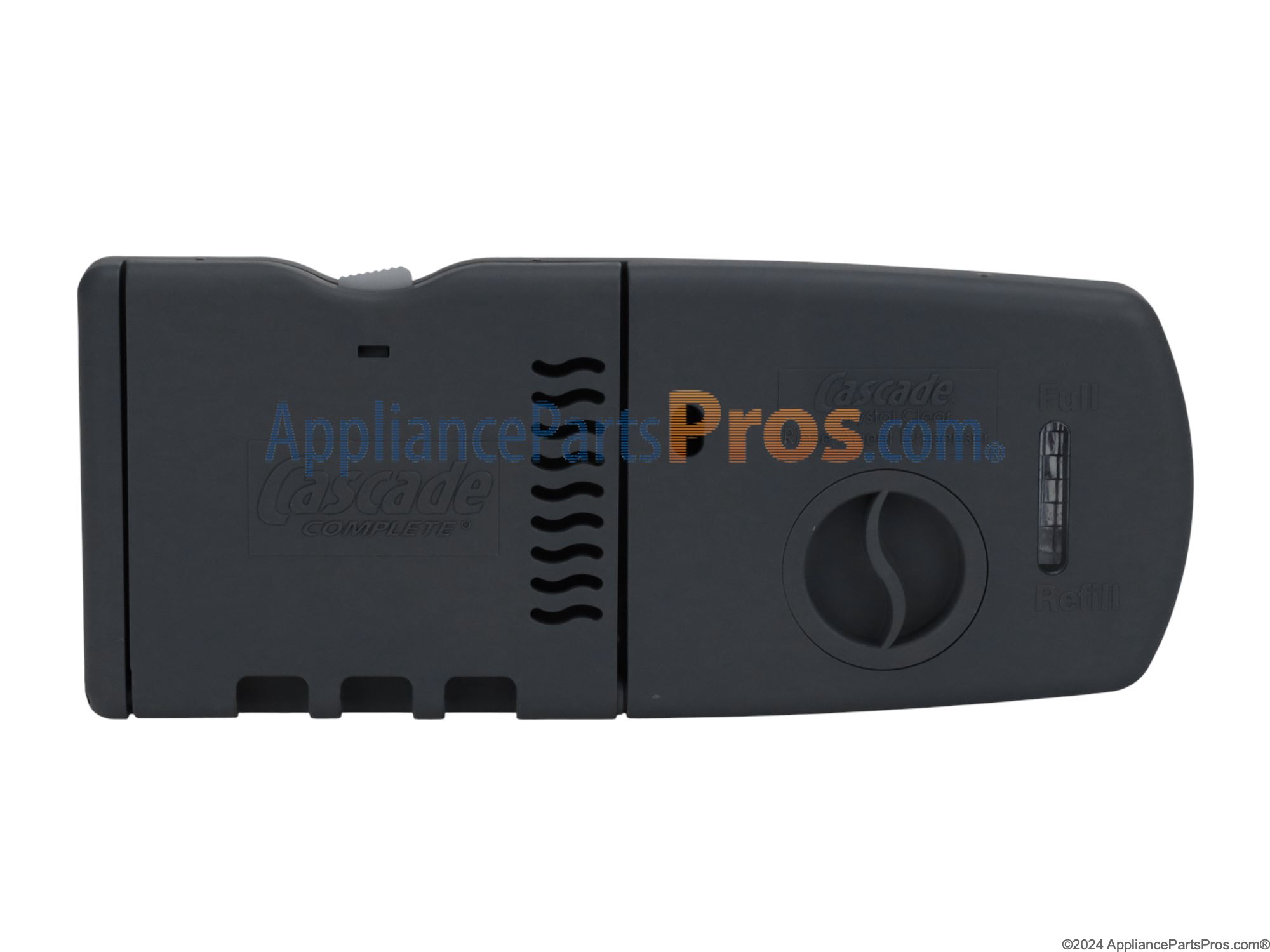

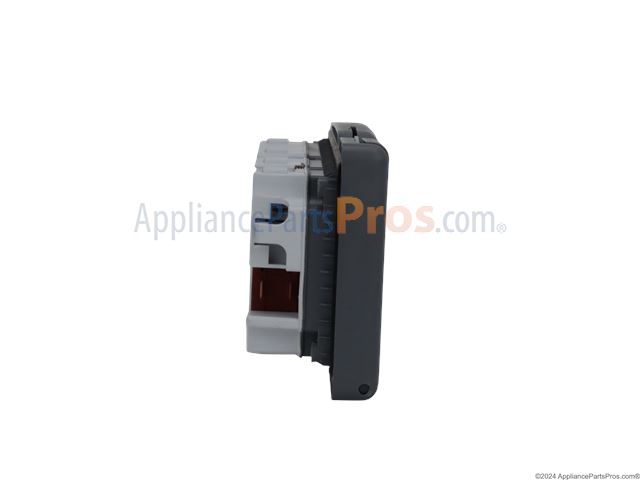

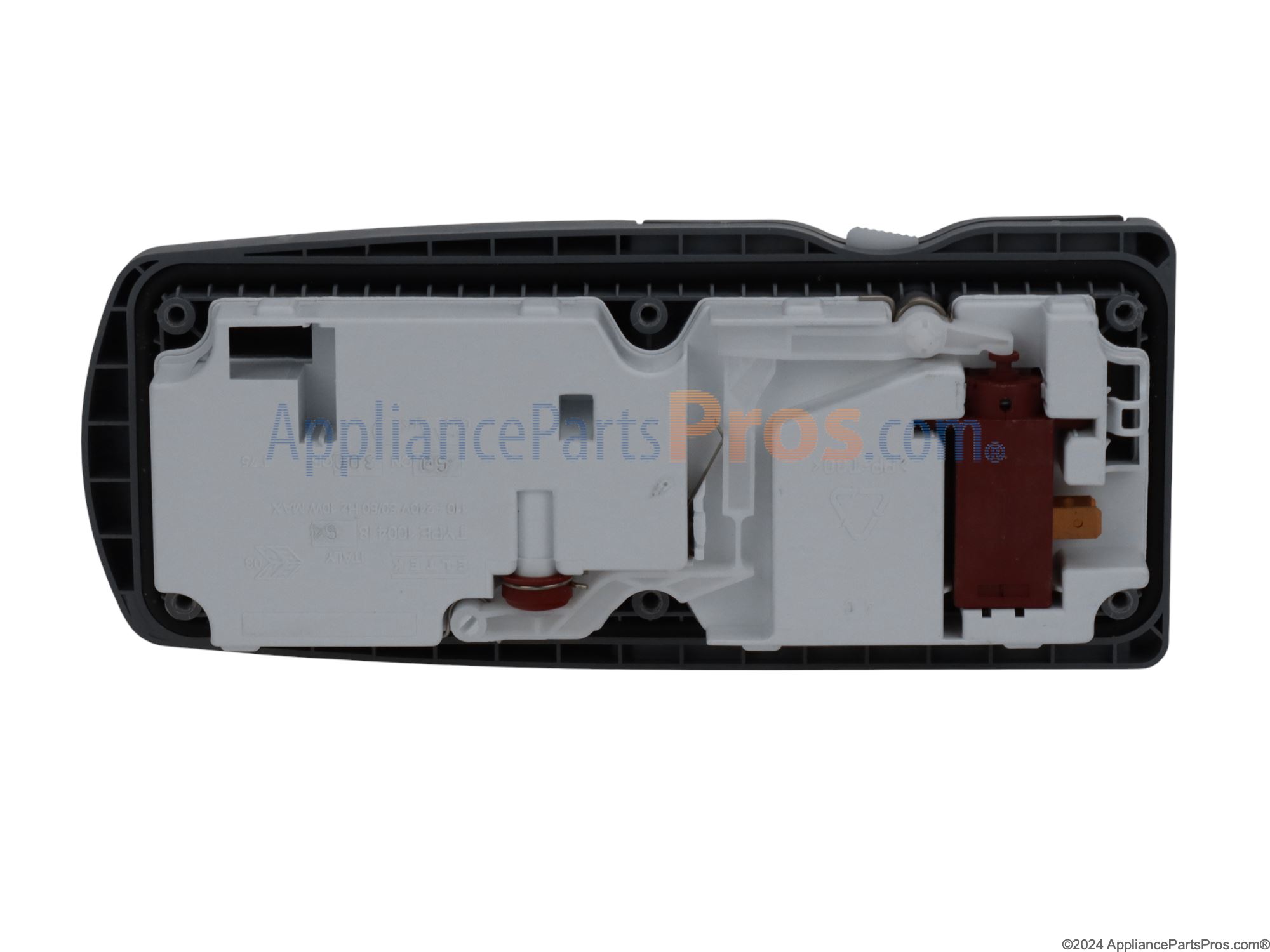

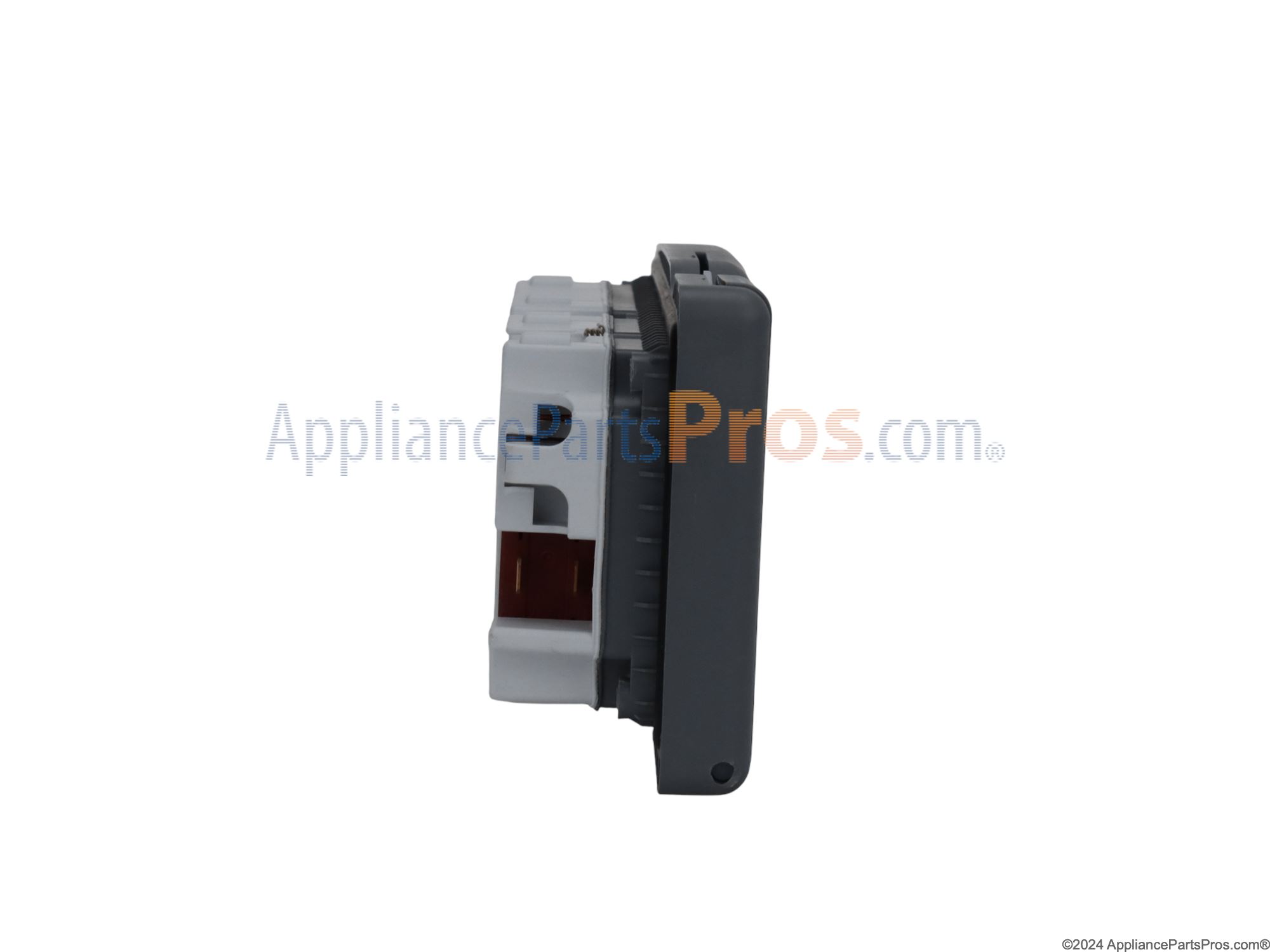

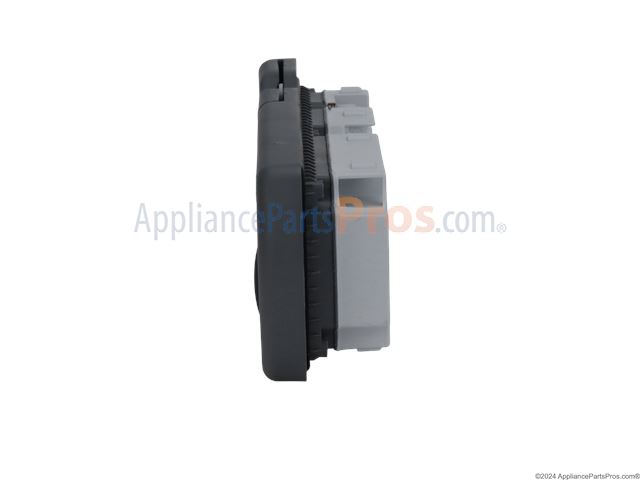

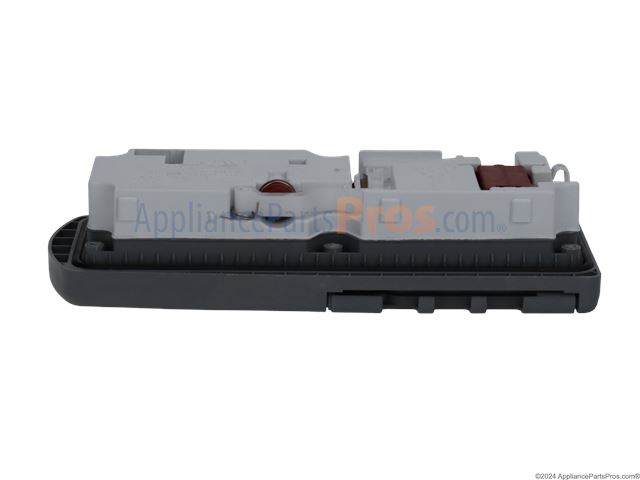

Detergent and Rinse Aid Dispenser,

Dat N

Answer Hello Dat. This is a parallel circuit. The wires can go on either terminal. If the dispenser has been replaced and still won't open, it sounds like the board may be the issue. Hope this helps.

1 person found this answer helpful.

Guest

Answer Hello, This is the correct part number for the detergent dispenser. Unfortunately, it only comes fully assembled from the manufacturer. Thanks!

1 person found this answer helpful.

Sil for Model Number GE Profile dishwasher PPW9980N00SS

Answer Hello Sil, If the dispenser door will not latch then you would want to replace the dispenser assembly. In order to change out you would remove the screws around the inner door and lift the panel. Disconnect the wiring and remove the dispenser and replace with new. The dishes will still get clean with the tablet at the bottom but it is putting it in earlier than normal.

Joe for Model Number GE PDW9980W00SS

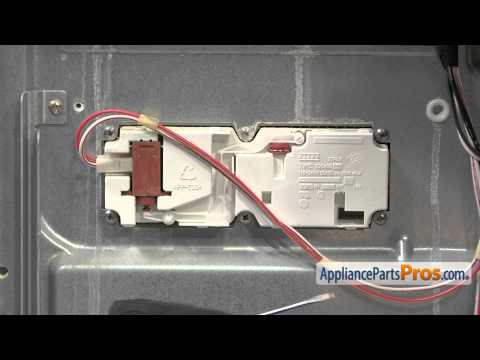

Answer Hello Joe, The detergent dispenser for unit is part number WD12X10163. To access the detergent dispenser first disconnect power from unit. Remove the screws holding the inner liner in place. Lift inner liner and disconnect the wires to the dispenser. There will be 1/4" screws that you will remove and dispenser will come out. Reinstall in reverse.

Toby Sperber

Answer Hello Toby, we do have the rinse dispenser cap WD12X10122 available. You might want to get a spare just in case it happens again. Thanks!

Joe for Model Number GE PDW8200

Answer Hello Joe, Disconnect power, there are screws on the inner door that you will have to remove. Once you remove inner door panel then you will disconnect the dispenser assembly and remove. Reinstall in reverse order.
