How do I replace the door switch on my GE Profile dryer, model number DPSB620GC1WW? If I need to open the front of the dryer, please include details on how to do that on this dryer. Thank you.
Answer Hello Ed,
You will have to take front panel off to change light switch. To do this you will need to use a putty knife in between the main top and front panel. There will be a spring clip on either side that you will depress to lift the top. Once lifted there is a screw on either side that holds the panel on. Remove screws and lift panel off.
How do I replace the door switch on my dryer and what tools will I need?
Answer Hello Jerry,

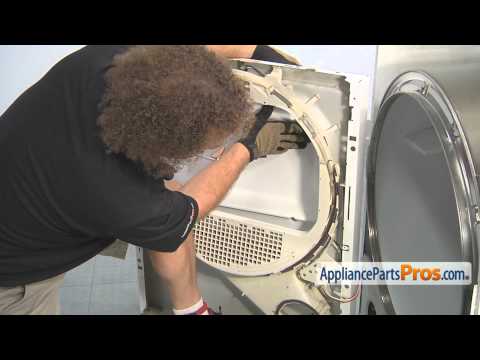

You will need a Phillips head screwdriver and a pair of needle nosed pliers. First and most important, discontinue the power supply to the unit by either turning the breaker off or unplugging the unit. Next, open the door and look straight up. There are two screws that hold the main top on. Remove these two screws and remove the top by lifting slightly and shifting it to the left. Now there are two screws, one on the left and one on the right you can see by looking down into the top. They screw in directly back toward you. Be careful not to drop them. The heads of these can use a Phillips or a square bit. Once these are out, lift the front panel slightly and pivot the front panel around, being careful of the wires. I never disconnect any as it is not necessary for this job.
Now, to prevent miswiring, write down the color of the wires in the sequence they are connected for reassemblies' sake. Use the needle nosed pliers to remove the wires. Depress the tabs on the sides of the old door switch and it will come out. Reassembly is the exact reverse of the disassembly process.
