Filter Sump and Cover Assembly

Frank S for Model Number GLC4400R10BB

Answer Frank, The only filter that there is would be the fine filter but does not stop food from getting into the sump area but stops fine particles from clogging the spray arms.

Vince for Model Number GSD6900J10WW

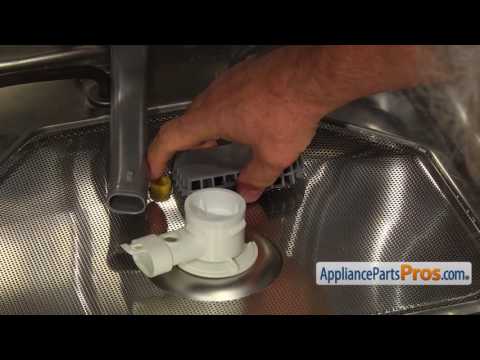

Answer Vince, Here's the info you need " To Remove Lower Arm and Fine Filter Assembly : 1. Remove lower rack from dishwasher. 2. Gently lift and rotate lower spray arm counterclockwise to remove. 3. Rotate nut hub counterclockwise to remove. Gently lift fine filter assembly up. Remove fine filter drain from sump. 4. Clean fine filter screen if soil is present. 5. To reinstall fine filter and lower spray arm reverse procedure. NOTE: When installing fine filter make sure the drain port of the filter is engaged with the drain for the fine filter."You'll also need to remove the sump cover/filter WD22X10077 and make sure there is no debris in the sump assembly.

Steve for Model Number GLD4560N00SS

Answer Hello Steve, The drain pump will make a terrible noise if it contacts the floor. It should be mounted to the unit and not contacting the floor. This is definitely where the noise is originating. Check and make sure the pump is still attached to the hanger WD01X10292.

Sebastien for Model Number PDW7712K01SS

Answer Hi Sebastian. Remove the tub filter cover. Remove the wire mesh fine filter. Remove the lower kick plate. Remove the upper filter clamp. Unclasp the sump filter by using e screwdriver carefully and unclasp it from the inside of the tub. Lift it up and out. If you are unable to then you need to remove the whole sump inlet assy. part # 505. Loosen the lt. clamp and the fwd clamp that holds it to the motor inlet. Be prepared for water drainage. Remove it from the pump inlet hose. Replace the filter in reverse steps. Thank You.

Audrey for Model Number GSD6900J00WW

Answer Hello Audrey. You need to check the water level inside the unit and make sure the water is reaching the bottom of the heater. If not, you will need to replace the water valve WD15X10003 on the unit. If the water level is low, it will prevent the water from having enough pressure to supply the system and turn the spray arms.

Mark for Model Number PDW9280L00SS

Answer Hi Mark. Remove the tub filter cover. Remove the wire mesh fine filter. Remove the lower kick plate. Remove the upper filter clamp. Unclasp the sump filter by using e screwdriver carefully and unclasp it from the inside of the tub. Lift it up and out. If you are unable to then you need to remove the whole sump inlet assy. part # 505. Loosen the lt. clamp and the fwd clamp that holds it to the motor inlet. Be prepared for water drainage. Remove it from the pump inlet hose. Replace the filter in reverse steps. Yes you will need to replace the whole inner door assy. in order to have a new bottom inner door seal as requested. It is part WD31X10067. Thank You.
