Can you provide the steps to replace the GE Grommet Tube Assembly Right Part number AP2057714?
Answer Hello Clarence,

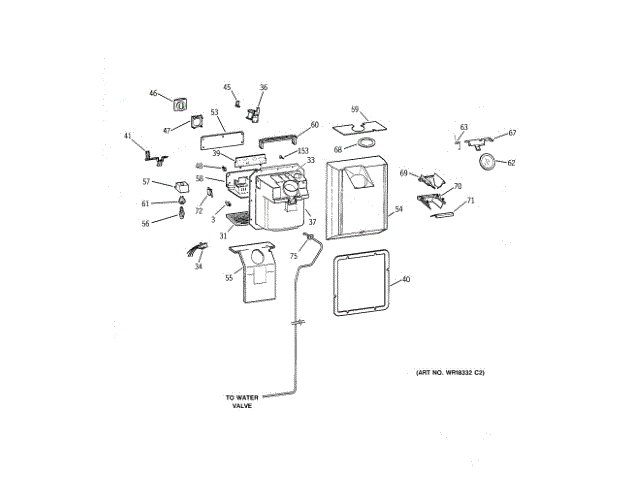

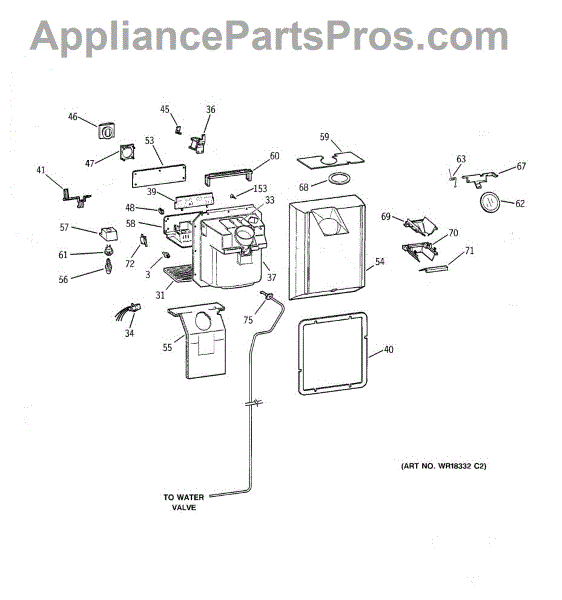

Remove the water line coupler at the bottom of the fresh food door. The dispenser cover on the front of the freezer door will have to be removed. You definitely need to unplug the unit as there is voltage inside the dispenser area. The dispenser housing may need to be removed also. If you're lucky, the new water line will simply slide down the hole where the old one pulls out from. If not, the housing and possibly the freezer door will have to come off in order to get the line fished down through the channels. This isn't going to be an easy job. There is no service guide that show any illustrations so the best picture you have to refer to is the parts explosion. You may seriously want to contact a trained technician to complete this repair. Taking it apart won't be as bad as the re-assembly. Don't take it apart and call a technician as most techs I know would charge extra to re-assemble an apparatus they didn't dis-assemble.
