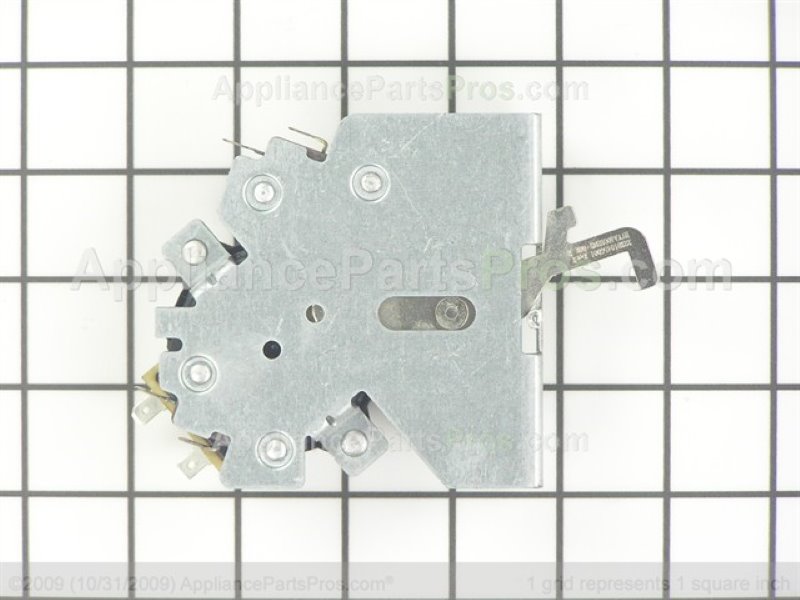

Ordered new lock latch for my oven. Part wb0210010 has been superseded to this latch wb02k10136. Need to know how to wire new one has 6 wires.
Unfortunately we do not have a wiring diagram for this model to be able to advise on the wiring. Kenmore does not supply this information and we have no way of obtaining it to be able to give the proper wiring.
how to replace oven latch on ge model # jgb915 bef
Answer Joe, First you'll need to remove power to the range, and turn off the gas supply, remove everything off the cooktop, grates, burner caps. Each burner has two(2) phillips head screws holding the burner down to the cooktop, that have to be removed before you lift the cooktop. Once the cooktop is lifted and propped up, you can unplug the wires from the latch motor and switch, Remove the mounting screws from the oven door opening and change out the latch. You may want to label or mark all the burner caps and bases and any wires you disconnect before you remove them, it'll make everything easier to re assemble.
