I am getting an F1 error and an alarm goes off on the upper portion of my double oven. I was going to replace the ERC Limit Switch.
Lawrence for Model Number jkp44gp2bg
Answer Hello Lawrence. F-1 is for Double tine
Break Relay is
βONβ in a non-
cooking or cleaning mode. Determine if problem is with
the Key Panel or Control by:
1. Pushing CLEAR/OFF pad
2. Disconnecting Ribbon
Cable from control and wait
at least 32 seconds to see
if Code re-occurs.
If code re-occurs. problem is in
the Control.
If code does not re-occur problem
is with the Key Panel.
Top left hand side limit switch shows open cntinuity, but oven works on bake and broil both. Initial problem start after self cleaning and control give a code 7. I reset power couple of time also. Any idea why oven is working with limit switch open?
Asif for Model Number jkp18bow1bb

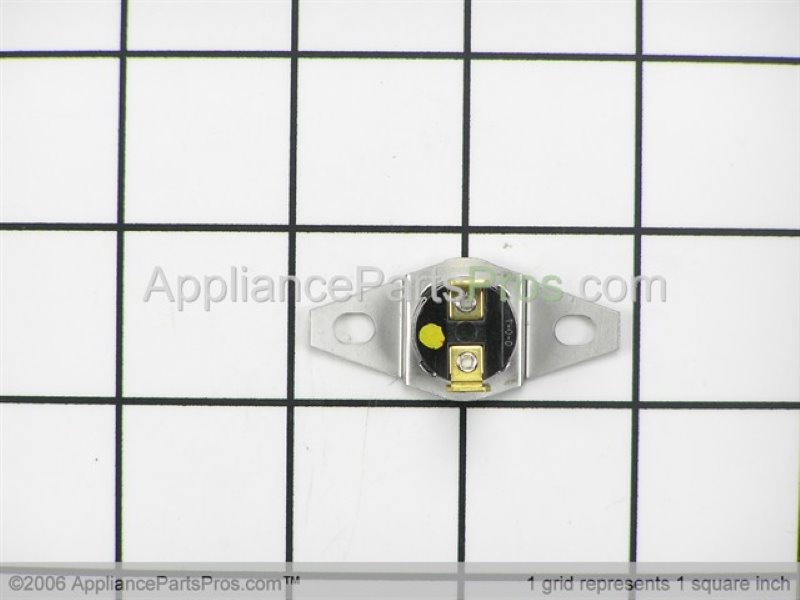

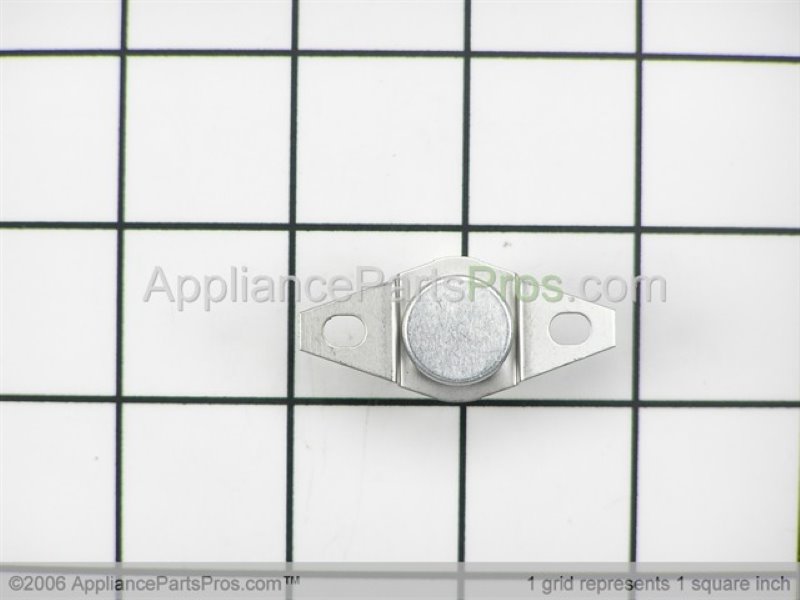

Answer Hi Asif. There are 3-thermal switches with your model. One is in line with the fan motor. The other one is in line for your door lock/unlock switches. Part # WB24K5033. This is found on the wiring diagram. They were not specified to what one is the top, but my thought will be to see if the door lock (clean mode) works.Part #WB24K5085. If it does then check the conv. fan mode as well. Or use electrical tape to bypass the wires to see what circuit will momentarily work. (Remove power first, then connect wires together). Thank You.
