Note: This question is for the older version of this part, but we thought you might still find it helpful
My GE toploader fills, pumps out, timer advances but main motor wont run. Indicator led flashes .5sec off and .5sec on in all timer positions. Lid switch is OK , motor control board is in good condition and motor continuity is ok. Any ideas what is going on

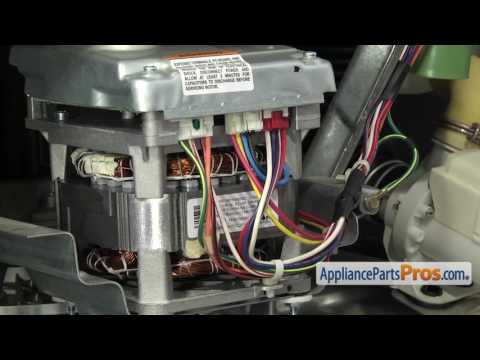

Answer John, Your first check will need to be to the in line fuse WH49X10055 located in the wire harness to the motor. Then test the voltage at the motor inverter board C2 / 6 pin connector. Voltage readings: C2 Pin 1 = Ground, C2 Pin 3 = Neutral, C2 Pin 5 to Pin 3 = 120 VAC, C2 Pin 6 to Pin 3 = 120 VAC with lid switch closed. Low Speed Agitate: C2 Pin 3 to C4 Pin 2 = 120 VAC, C2 Pin 3 to C4 Pin 4 = 120 VAC, High Speed Agitate: C2 Pin 3 to C4 Pin 3 = 120 VAC, C2 Pin 3 to C4 Pin 4 = 120 VAC. Low Speed Spin C2 Pin 3 to C4 Pin 2 = 120 VAC, C2 Pin 3 to C4 Pin 5 = 120 VAC, High Speed Spin: C2 Pin 3 to C4 Pin 3 = 120 VAC, C2 Pin 3 to C4 Pin 5 = 120 VAC. If you have the voltage readings, you'll need to replace the motor. If the voltages are not correct, then you'll need to check the wire harness or replace the timer.
