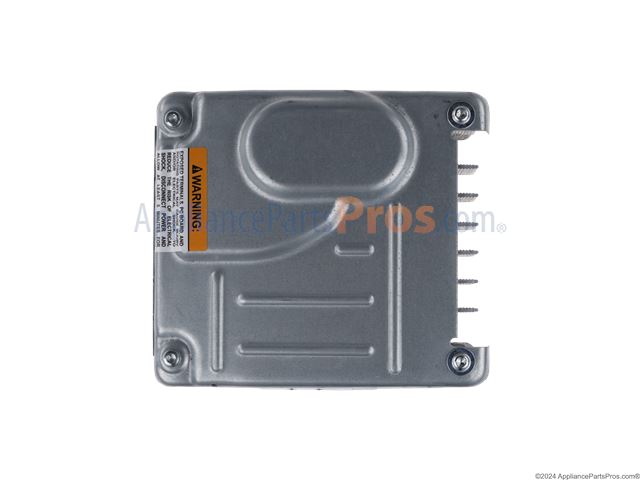

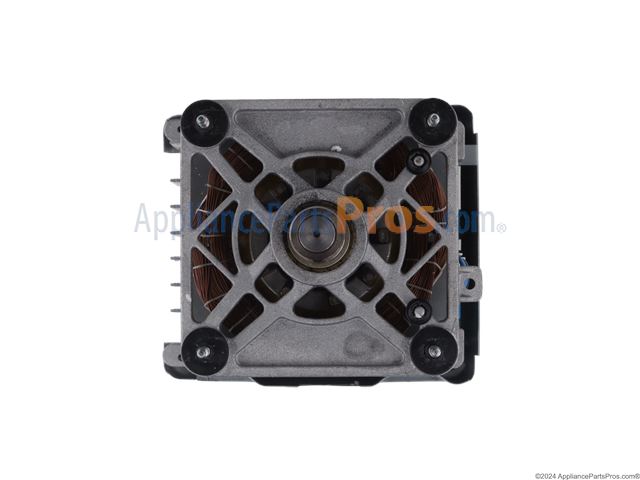

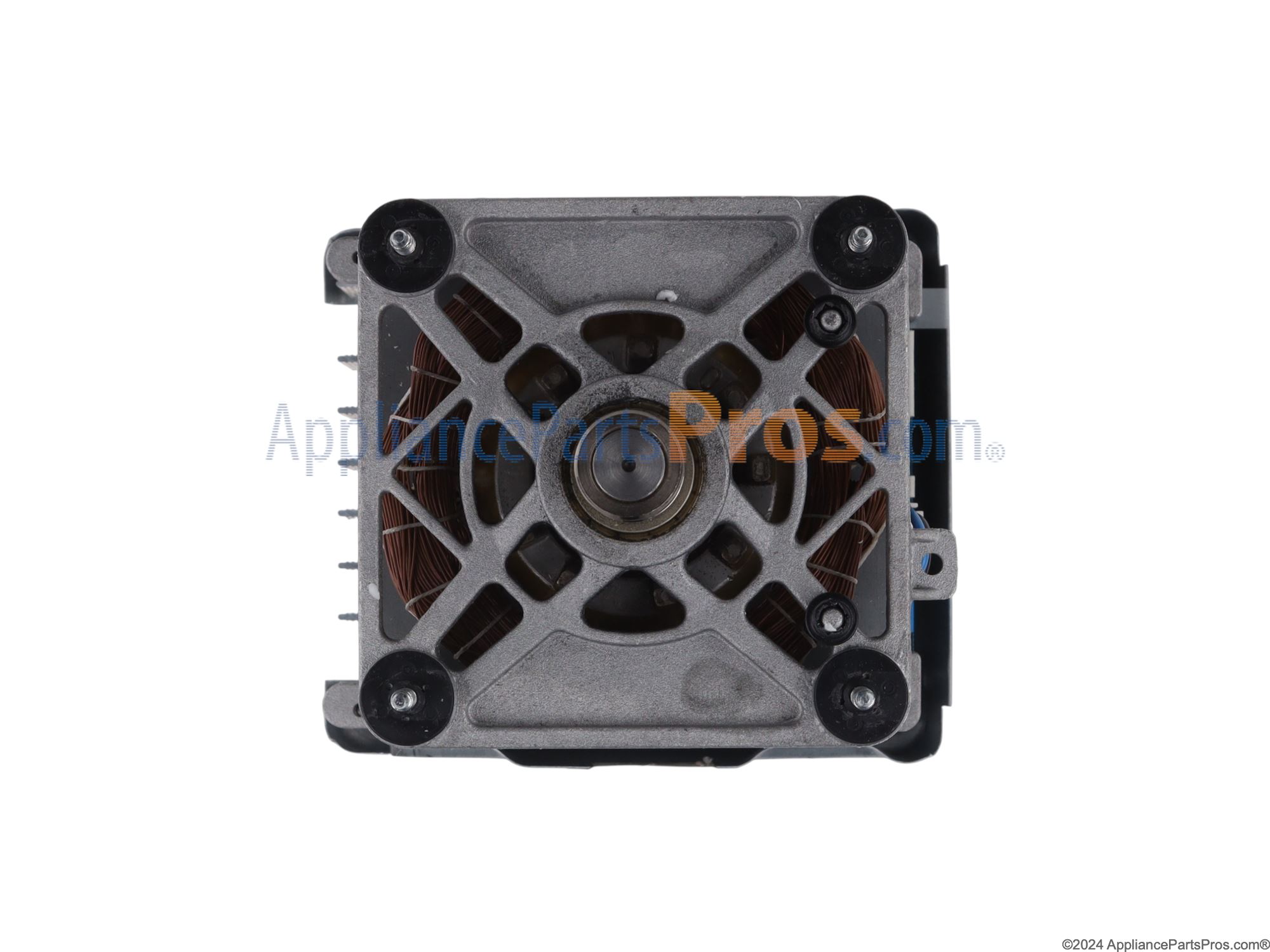

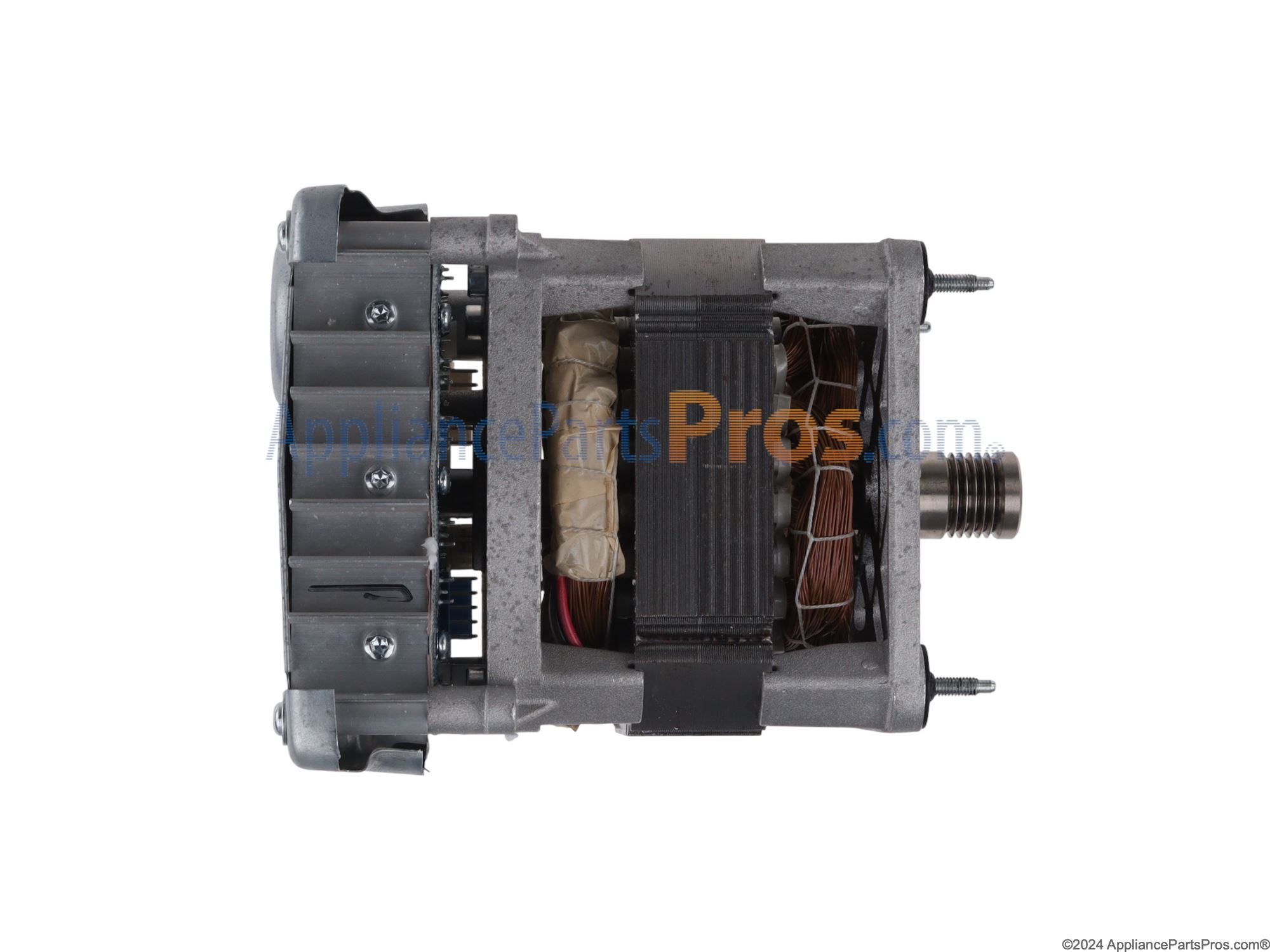

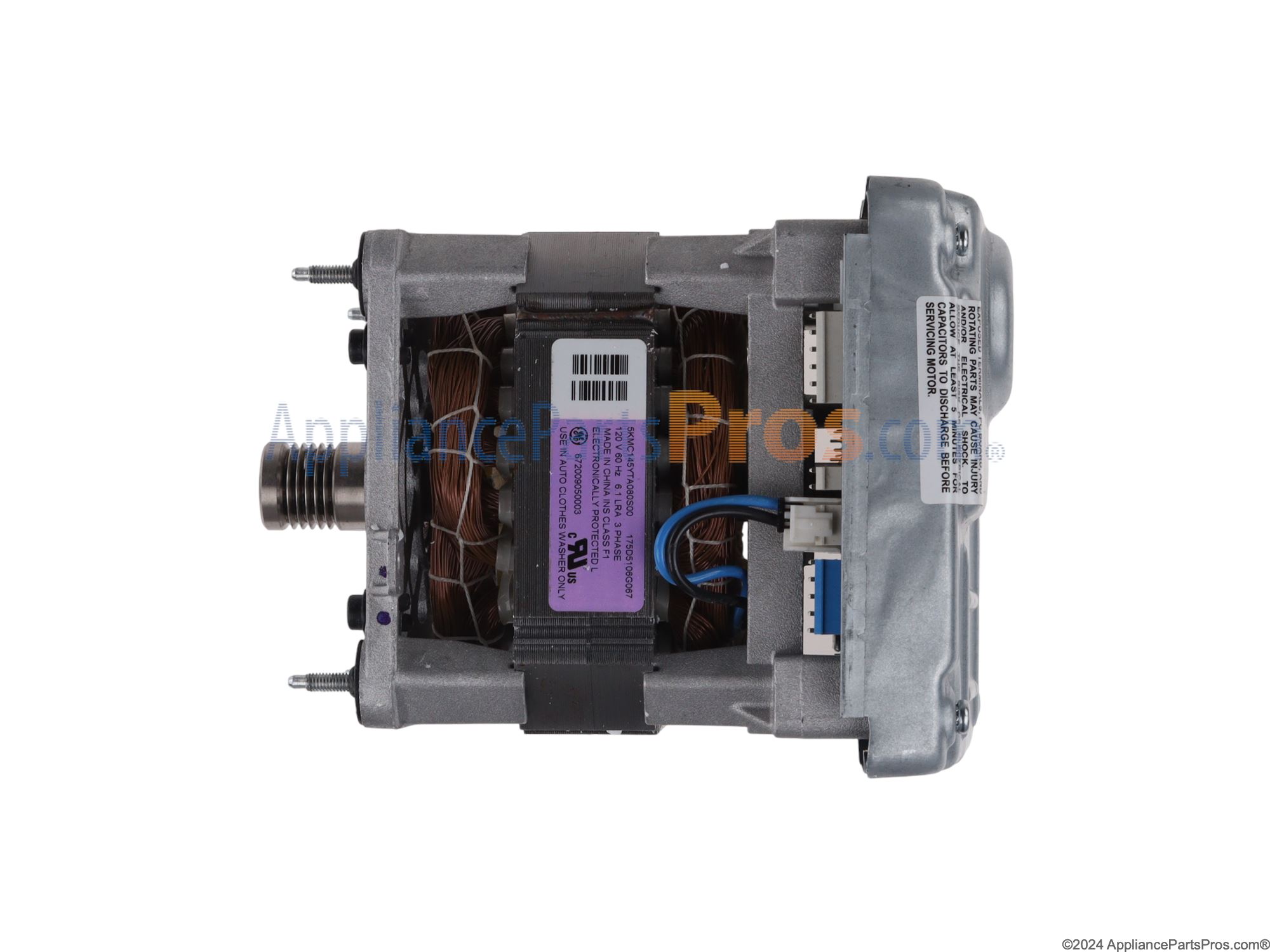

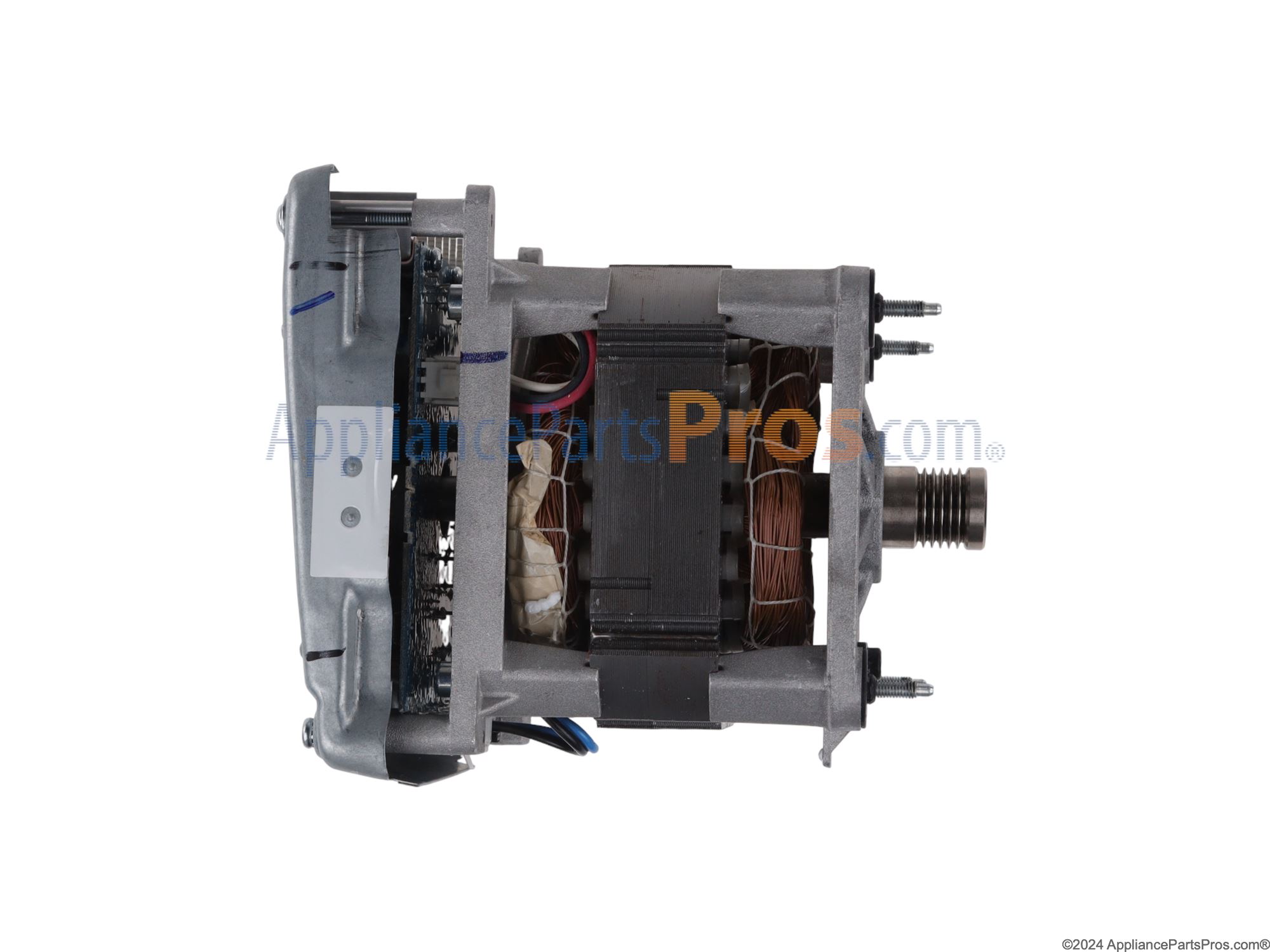

Motor,inverter,electr

Part Number: AP4536553
MFG Part Number: WH20X10076
Made by: GE
Our Price
$258.59
Regularly You Save
$307.72 $49.13

In Stock — Ships Today Guaranteed

Questions & Answers

27 Questions & Answers



Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. See all items in Washer Motor.
GE also makes various appliance models for Sears / Kenmore.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to find out if this part will work with your appliance.

Where can I find my model number?

More Product Images

Repair Help


Cross Reference Information

Part Number WH20X10076 (AP4536553) replaces 1796660, AH2577721, EA2577721, PS2577721, WH20X10064.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Read all 27 Questions

Ask a Question

Most Interesting

My GE washer will agitate but not spin cycle. Model # wjre5550k2ww. I put it in the field test mode and didn't get any codes. On the spin test it didnt spin it agitated. I replaced the clutch at the recommendation from my local appliance store. They said that it was a common problem with them. But that wasnt it either. Any suggestions of what it may be?

Jb for Model Number wjre5550k2ww

Answer

Was this helpful?

Washer does not spin or agitate. Fills and empties normally through timed cycle. Motor does not move. Tub manually moves freely in either direction. Belt, fuse, lid switch OK. Read 120vac at motor C2 connector. Green LED flashes on and off on 1 sec intervals continuously...no error codes! Mode shifter coil C7 connector reads 66.9 ohms at 74 degrees F. I get vdc readings at all C4 pins (reading between pin 5 and pins 1-4). Is this a motor only problem, or is the shifter coil and control board also a problem? Thx

Ted for Model Number GE WJRE5550K1WW

Answer

Was this helpful?

Washer will fill and empty, motor will not spin on its own basket spins freely. No green light at all on motor coming on or blinking, checked fuse for continuity and its good, assuming I need a motor. Tried to reset a few times. Light on motor will not come on at all. Wondering if it could possibly b something else but from what I've read if that light doesn't come on at All it should b fuse or motor and fuse is good.

Sergio for Model Number Whre5550k2ww

Answer

Was this helpful?

Latest Questions

A similar but slightly different no spin/ no agitate situation. Field Test passed. Resistance is good on the fuse, I have 120V at the motor. No led lit on motor. Measurement on mode shifter seems to be 0 ohms. Do I have a bad motor and mode shifter? I can do more measurements if need be.

Robert for Model Number whre5550k1ww

Answer

Was this helpful?

Hello, my GE Hydrowave stopped spinning and agitating. I pulled the front cover off to check it out. The green light was flashing 4 times, indicating mode shifter failure. Then i checked the continuity on the shifter connector and it was open, so i replaced the mode shifter shaft/tube ASM. I powered the washer back up and it still wouldn't spin or agitate. The green light still flashes 4 times. I tried the reset procedure (un-plug, wait a min, re-plug, open/close lid 6 times in 12 sec) a couple of times to no avail. I checked the continuity again on the newly installed mode shifter and it's 67.1 @ 75 degrees. What does this mean? Please help... Thank you...

Michael for Model Number WCSR4170G2WW

Answer

Was this helpful?

Yes I was reading somebody question about the 6 flashing green LED, indicating motor failure. But I am also having the same problem but I am reading 68 ohm on my test of the shaft circuit plug, you said that the reading is 98 ohms normal at temperature of 77, how important is this to check the shift coil before I purchase a motor . Thank you for a reply

Hevi for Model Number WBSR314OG2WW

Answer

Was this helpful?
