At least one pane of glass (inner) shattered on my GE Adora Electric range. How many layers of glass are there on my model and what model number do I need to replace?

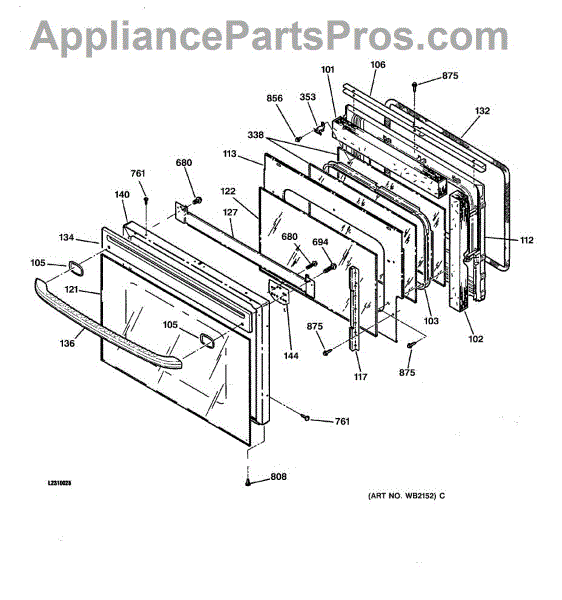

The oven door has 4 total panels of glass. The outer door has 1 pane then there is another piece which is in the middle of the door. Then there is a window pack that has 2 panes of glass. Based on the description it appears you would need to have the window pack. The part number for the window pack for your model is WB56X22160.
It appears the middle of 3 panes of glass broke on my over door. What part do I need and is this is simple repair?

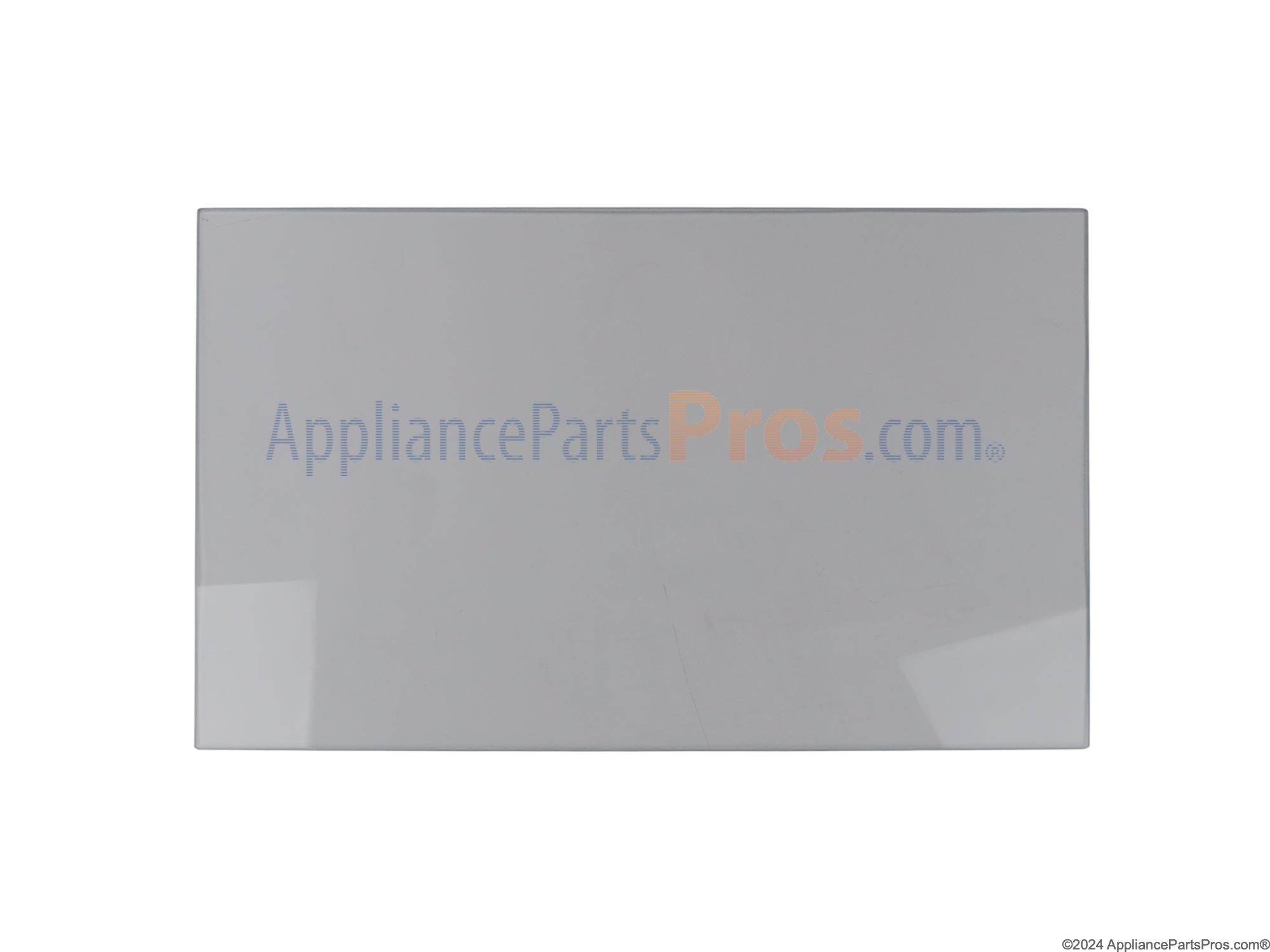

Answer Cyfan, the door glass listed as the middle door glass is part number WB57K5230. This is the door glass between the outer door glass and inner door glass pack. To change the glass in an oven door, you will need to determine how to remove the door on the model number you are working on. If you open the door to the first stopping point, some oven doors will lift off the unit in this position. On other models, you will see clips on the back of the hinge toward the opening where the hinge enters the range. If yours is like this, you will open the door all the way open, then pull the clips down until they stop and lock in place. Then close the door to the stopping point and lift the door off the range. If your door does not lift off, and it does not have the clips, then you will open the door all the way open. You will see a hole in the hinge at the bottom of the door. You will insert a pin or nail into that hole and close the door to the stopping point. Then you can lift the door off the unit. Once the door is removed, you will lay it on a soft surface and disassemble the door. Pay attention and make notes if needed for reassembly of the oven door. Once you have replaced the door glass, you will reinstall the oven door back onto the range in reverse order of the way you removed it.
