I Just got a new spay arm WD22X154... How do I open or separate the GE Pump Connect(Part No.: AP2039426), for me put new spray arm in. Does the top piece of the pump connect unscrew? snap off? I would appreciate an answer please, thanks Robert.
Answer Hello Robert. There is no need to remove the pump connect to replace the spray arm WD22X154. The base of the spray arm unscrews from the assembly. Use a screw driver to use as a pry bar. Insert it in the square opening under the spray arm assembly to unscrew. It should turn counterclockwise.
From your earlier answer to unclog the unit,how do I remove the lower spray arm and what is a t60p screen cover filter you mentioned or is that a misspelling.If so,what is the part no. and where is it located. Thank you

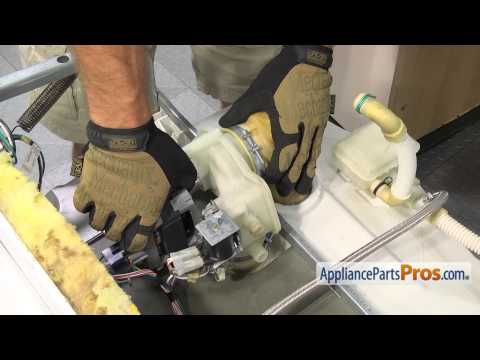

Answer Ed, you will need to remove the dishwasher from the cabinet, remove the pump assembly from the sump and the pump connect assemblies and the extract and install the new pump connector through the tub opening. There are two(2) filters in the unit WD12X417 the sump cover filter and underneath that, is the sump cap/filter WD12X418. You remove the two screws from the cover and lift both components out of the sump. Here's the basic information for removing the lower spray arm assembly," WASH ARM SERVICE AND DISASSEMBLY: 1. Check spray arm holes for bits of china, seeds and other foreign matter. 2. Check spray arm rotation.
3. Remove nut tower, LEFT HAND THREADS- by using a screwdriverblade. 4. Lift out Power Tower assembly and Nut Tower.
5. Remove 1(4" hex head screw from the center of the wash arm to release arm. 6. Spray arm hub and entire spray arm assembly
can be removed by turning spray arm hub (right hand threads) and removing. 7. Reverse to reassemble." Thanks and Good Luck
I need to know how tight do I tighten the pump connect (ap2039426) to the spray arm (wd22x154)?
Answer Hi Richard. You only need to tighten this connector just snug. Slightly use plier(s) pressure while tightening it down. Part # WD18X214. Thank You.
