How does this fit into range top if I were to do it myself... does it bolt in?? The stove top model number is GBS55DM2ww Serial # is HT2038870..Kind regards, Donald

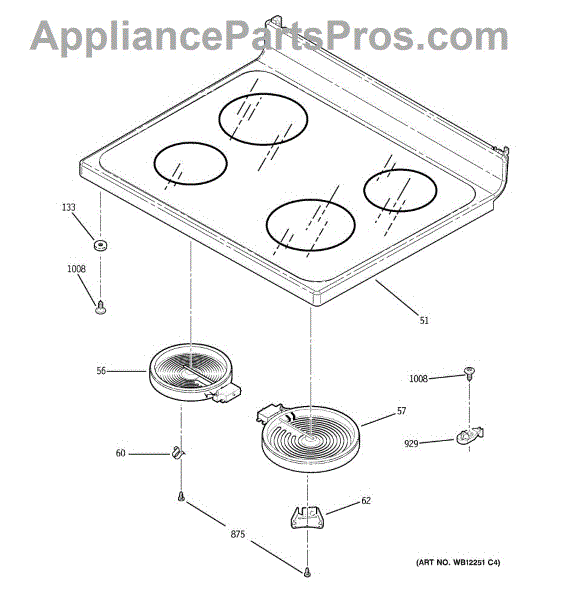

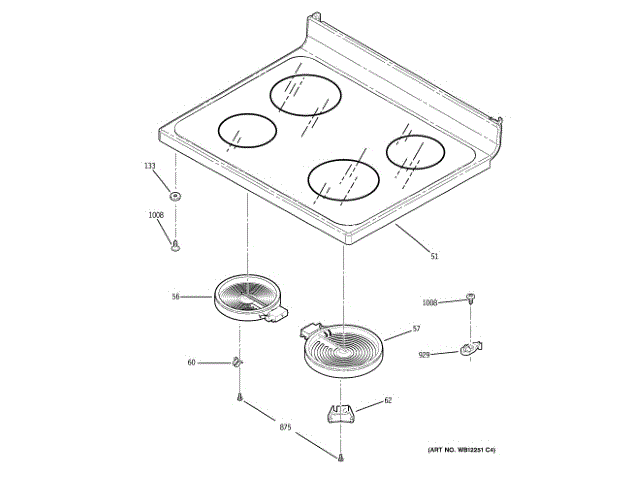

Answer Donald, you'll need to remove the two screws at the ends in the front flange, then you can raise the top. : The cooktop is fastened to the front frame by two screws. Remove the screws and lift the back edge of cooktop upward (no more than 1 to 2 inches) to unhook the cooktop hinge from the backguard pins. Pull forward. Unplug harness and unscrew ground wire located at rear of cooktop. Lift cooktop off. Once you get the cooktop dismounted and laid on a table or counter top, you can transfer the burners and indicator lights, etc. to the new cooktop and reverse the procedure. Just remember to remove power to the range, before you start anything.
Looking for directions on how to install the glass rangetop for the
Answer Julie, Could you please supply a model number, we'll need to cross reference the part diagrams and service manual to assist you properly and efficiently. Thanks
