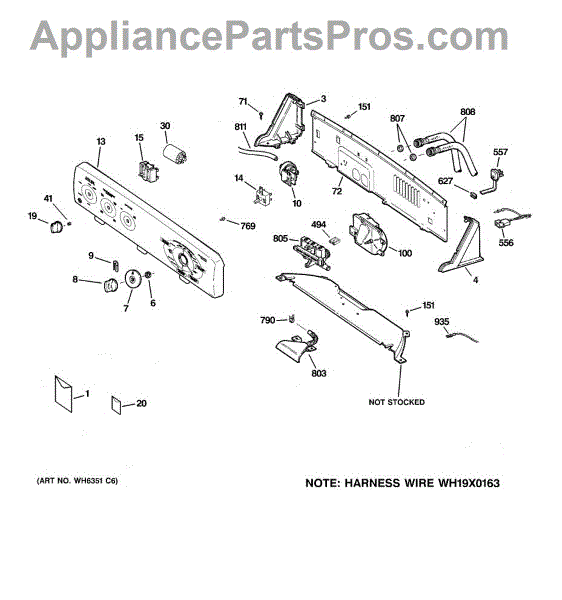

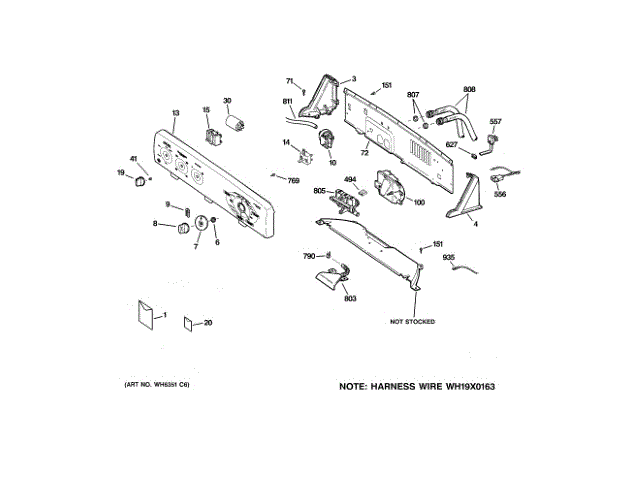

Looking for a replacement for the "Load Size" switch. Is this the switch listed as Item #10, Pressure Switch, in the parts diagram? The switch is located in the left-most position on the control panel when facing the front of the machine.
Answer Larry, Correct, the "Load Size" switch and the "pressure switch" WH12X10479 are one and the same. You also want to check the "Pressure Switch Hose" WH41X365 make sure it's not twisted, kinked or clogged. ( blow in the end of the hose when you remove it from the switch). Make sure the tub is completely empty when you install the switch.
