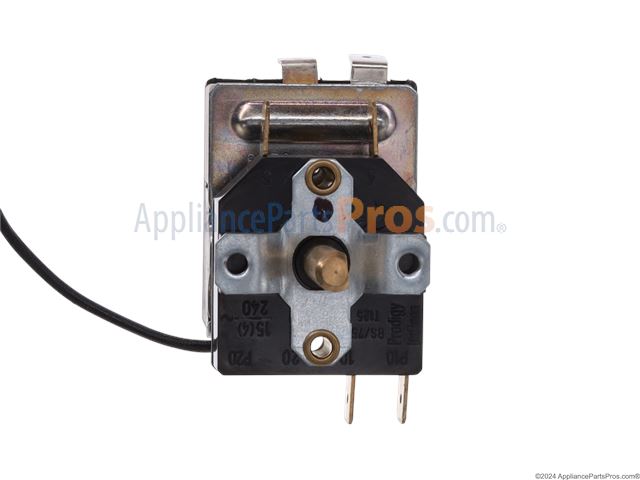

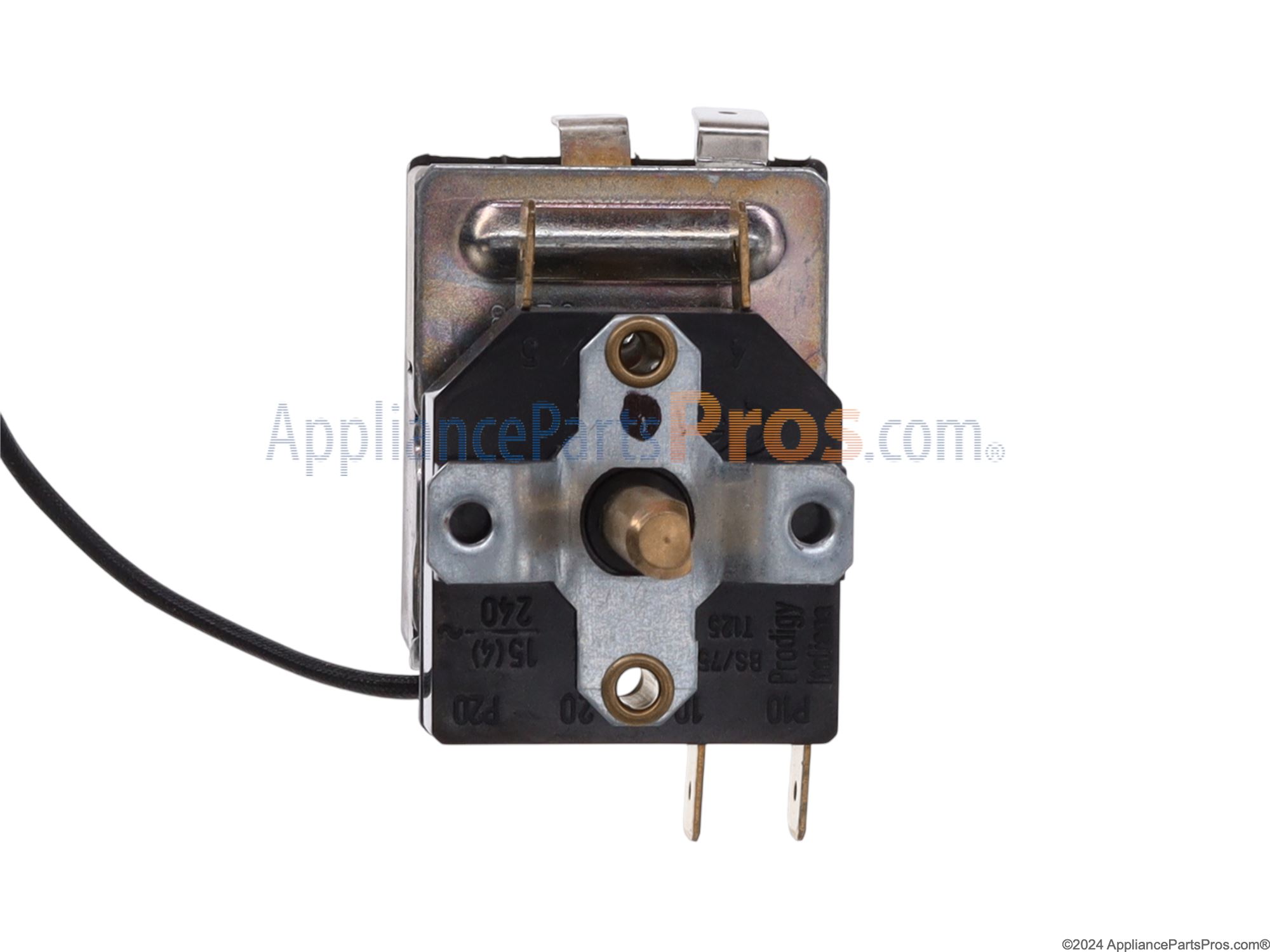

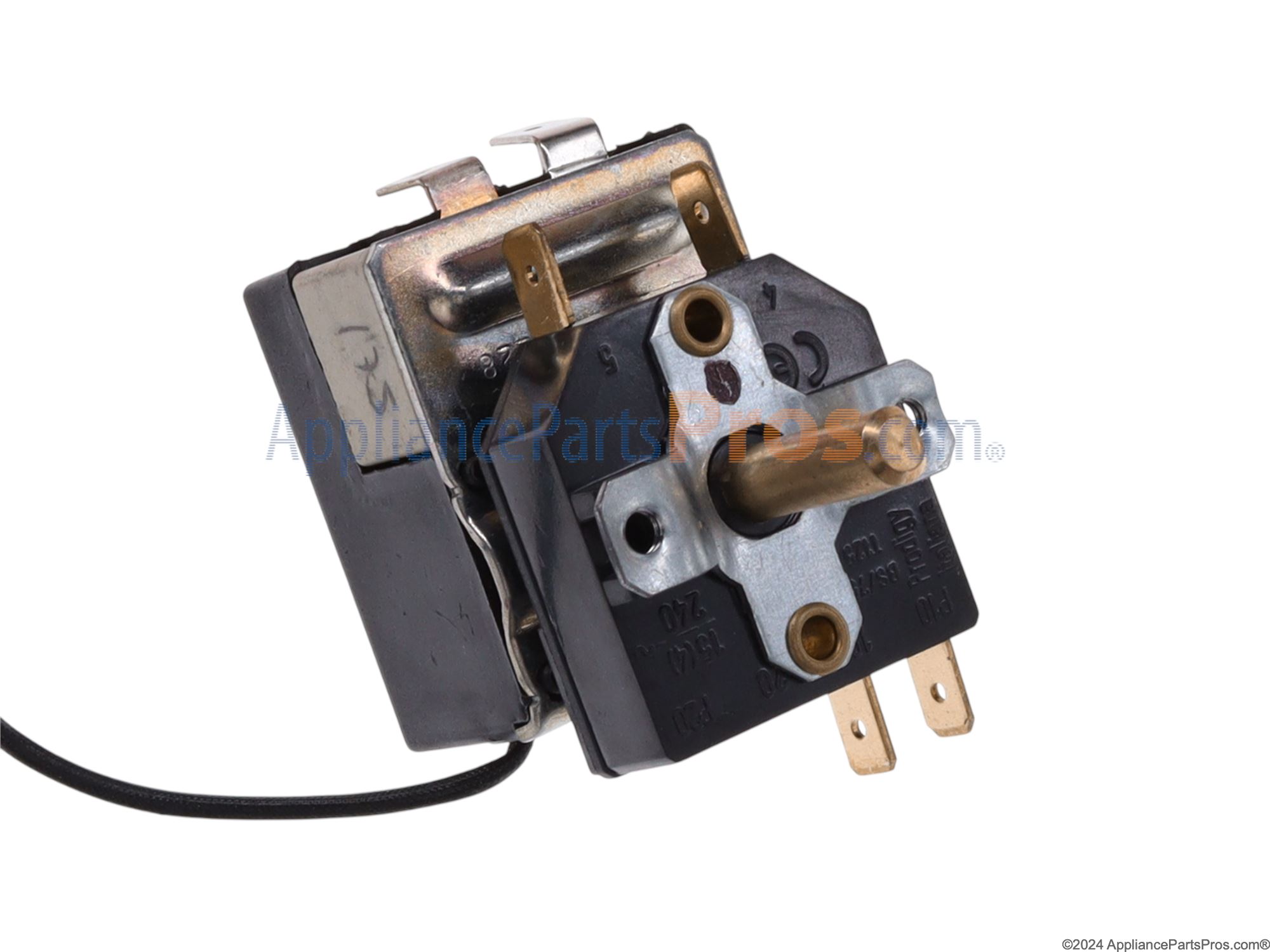

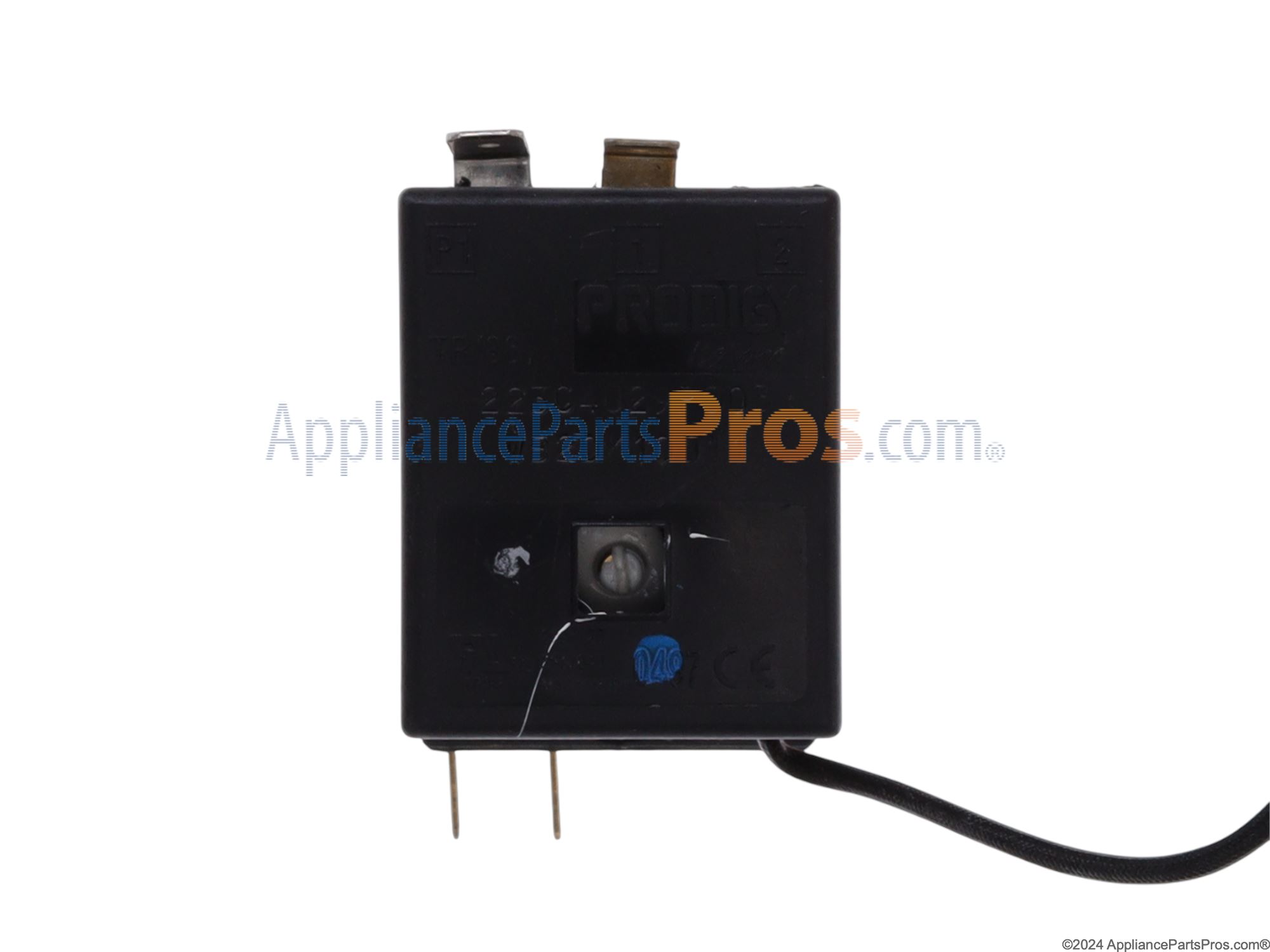

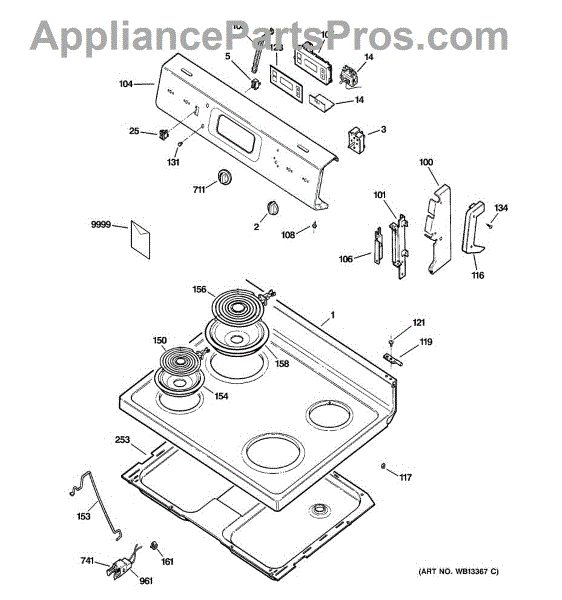

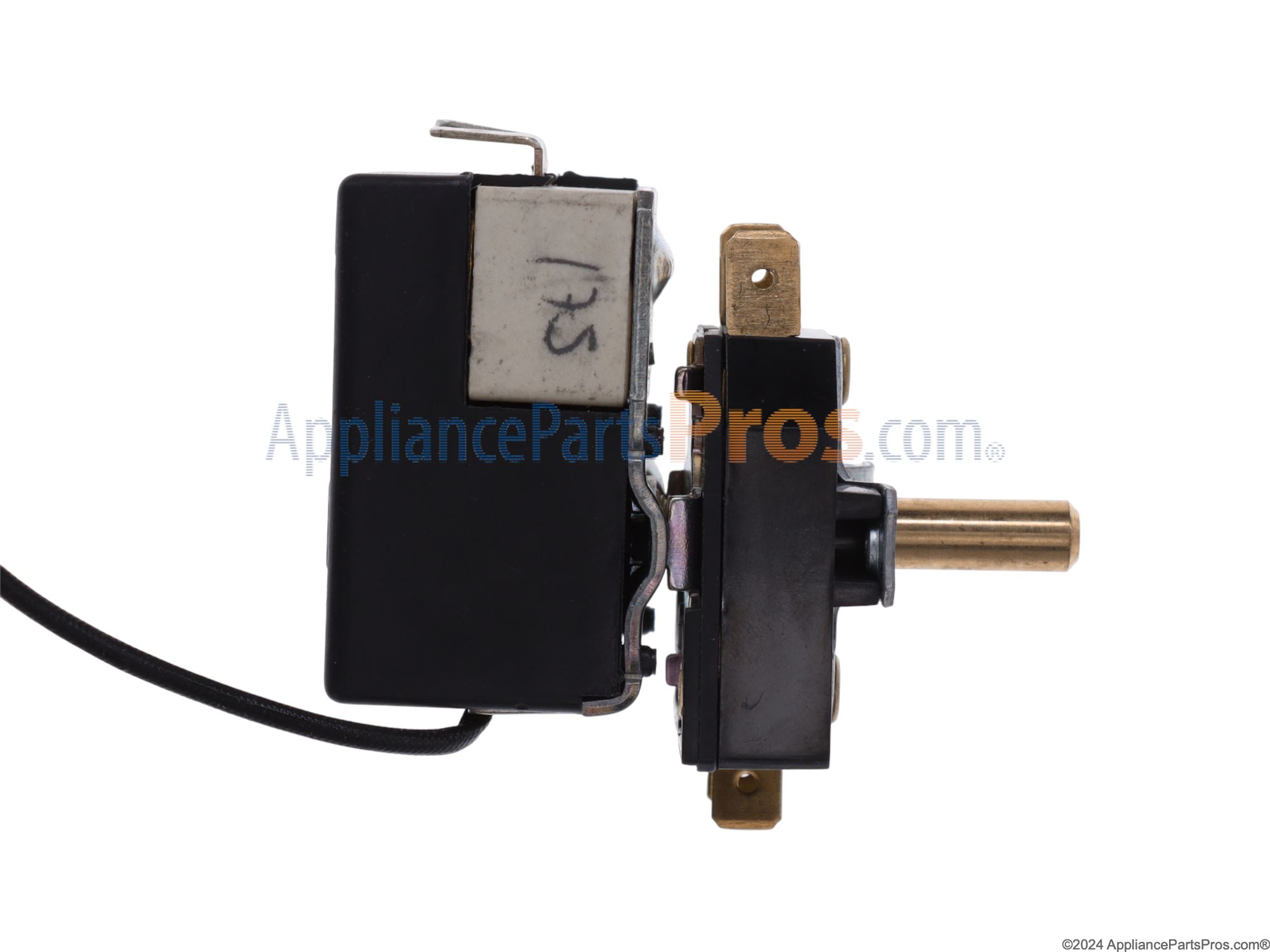

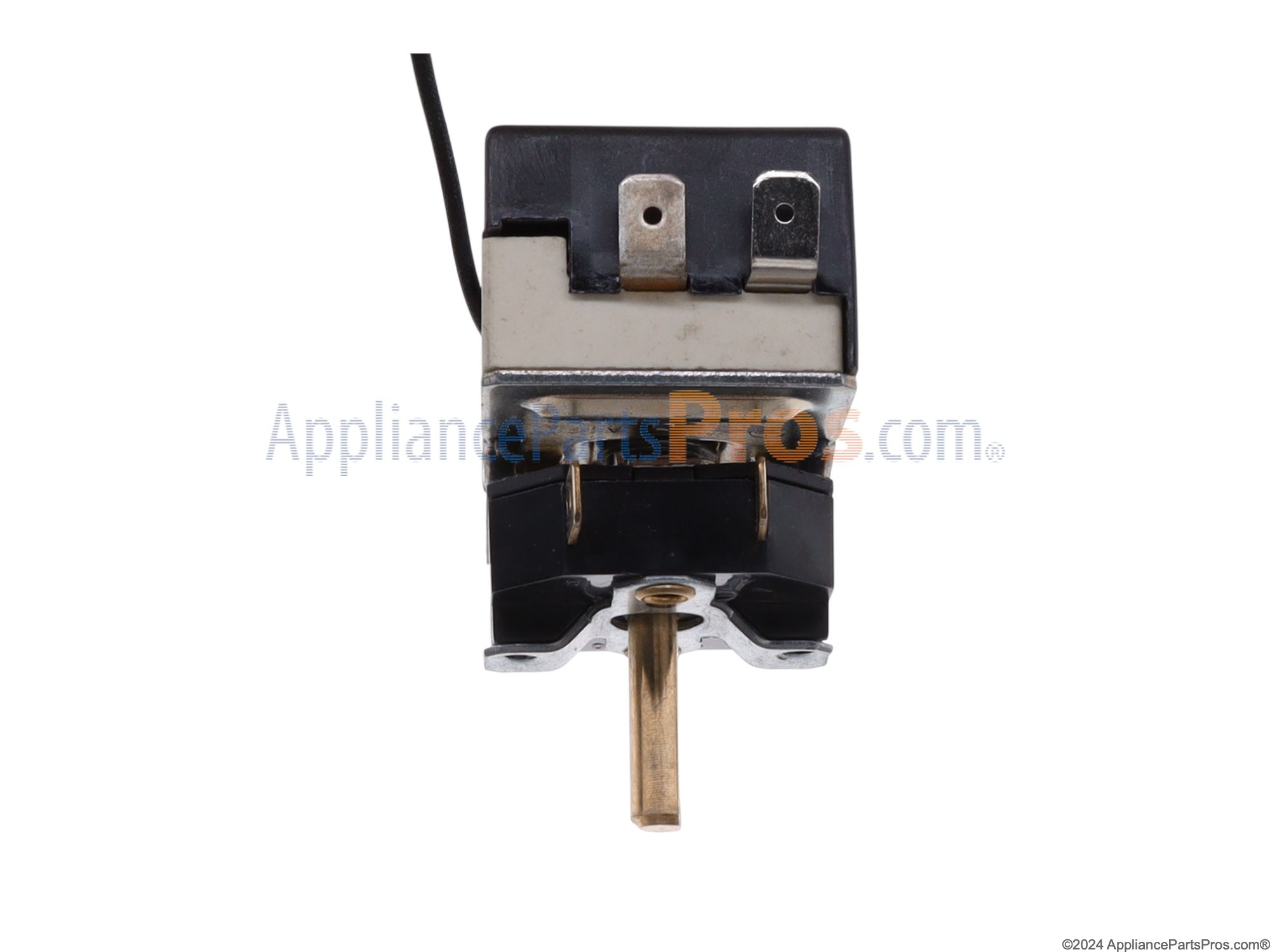

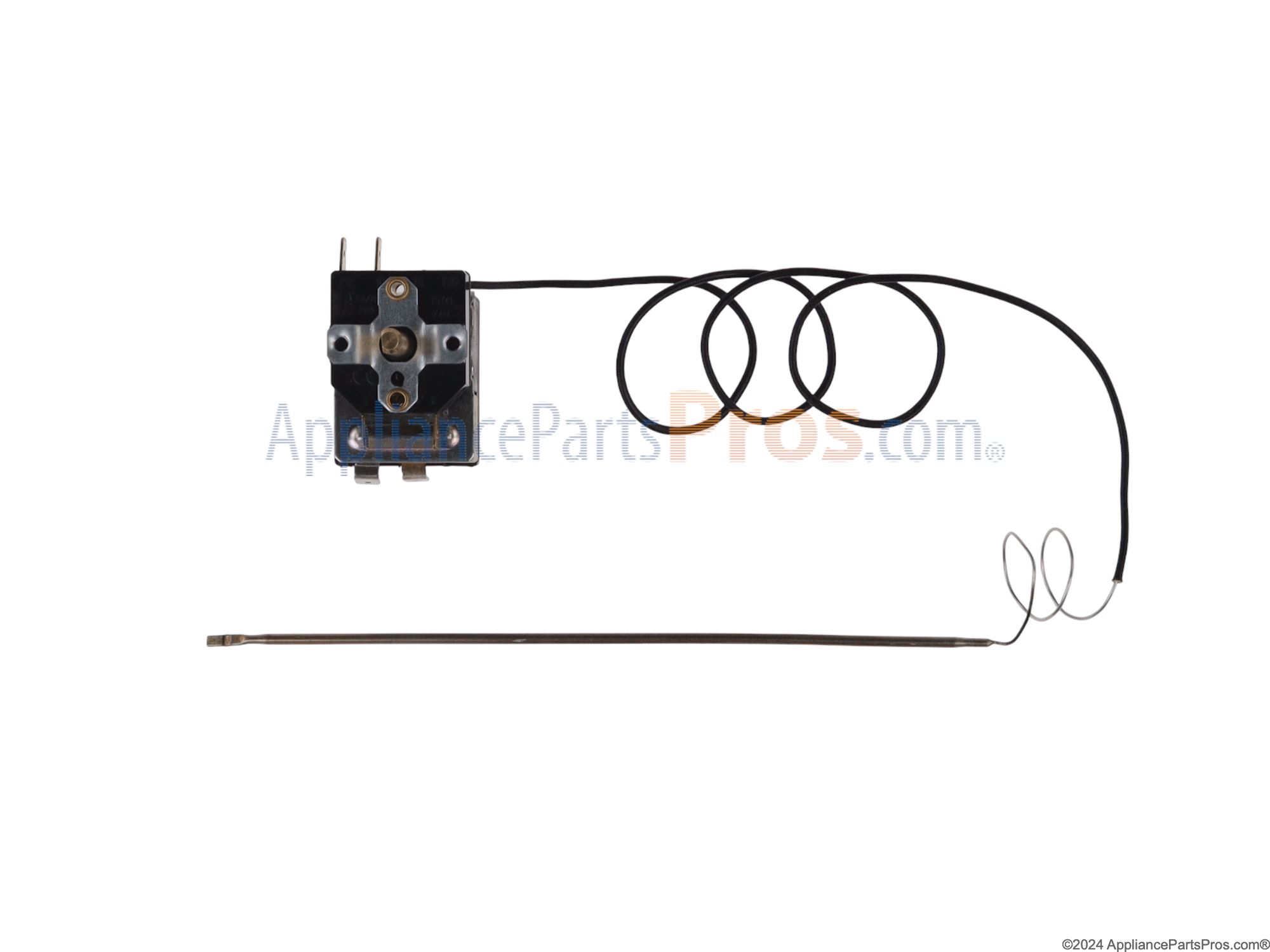

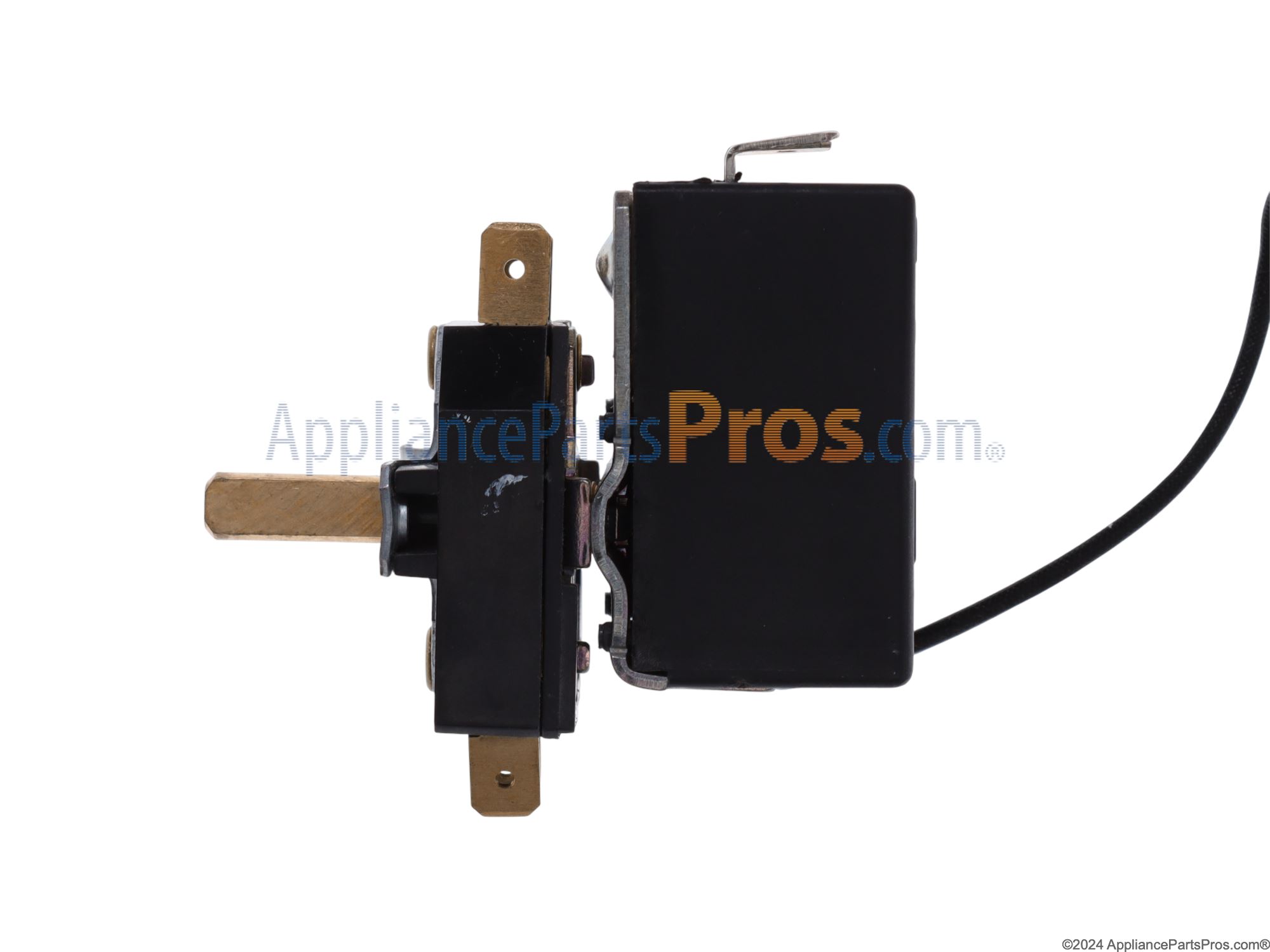

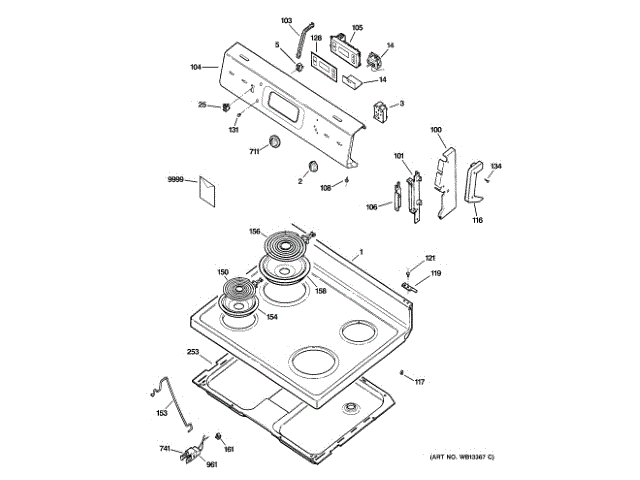

Hey guys! I have the WB20k10026 thermostat for this range but the labels on the t'stat do not correspond with my wiring diagram. The diagram showes 1,2,3,4,5,6. T'stat has 1,P1.4,5, P10, 10. Unfortunately, the old thermostat was removed leaving the wires hanging. I cannot figure this out. Can you help?
Answer Hello Deborah,
There are two wiring configurations on these. I used the wiring diagram and a bulletin from the manufacturer to get this wiring configuration.
1 = 1 = Brown and Red
P1 = 2 = Red
4 = 4 = black
5 = 5 = white (three wires)
P10 = 6 = Yellow
10 = 7 = Blue
What colors wires connect to the temperature control switch?
Answer Hello Jeff,
I'm sorry but we cannot tell what color the wires are for that thermostat without a model number so we can pull the wiring diagram. I apologize for the added inconvenience but I assure you it is necessary to have the model number from the units' I.D. tag. Thank you for your patience and understanding in this matter.
I'm looking for a oven thermostat for a GE 27 inch drop-in electric range. Its about 38 yrs. old. The model no. on the oven is JMS26001HI. Do you have one that will fit it?
Answer Hey Larry. I do apologize, but the thermostat part# WB21X5320 has been discontinued and is no longer available. The manufacturer is not providing any information on anything that would work in its place.
