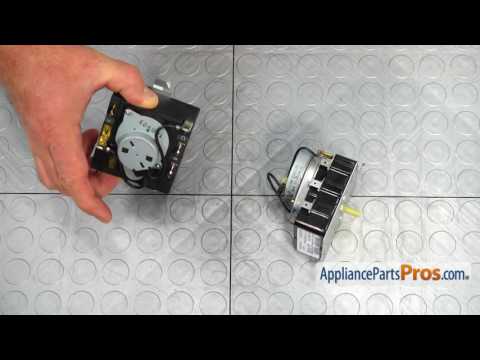

My husband bought a new timer. (The part number is WE4M533) He took the part off before I had a chance to see where each wire connects. Now I can't put it back together because I do not know which wires to connect where. I have 6 wires and the letter A B C S T and X. The COLOR wires are brown (1), white (1), yellow (1), hot pink/red (1), and the a light orange (1). oh and black. The black wire has a small end so I know where it goes, but where do the others go?
Answer Hello Tia,
There is a wiring diagram in the control panel of the unit that will decipher the wiring connections as follows: Brown to terminal "C", Yellow to terminal "X", White to terminal "T", Pink to terminal "B", Orange to terminal "A". The black should connect to terminal "S".
I need to know the colors and the letters to match up the timer?
Here are the locations and colors that go on each terminal.
Terminal H pink wire
Terminal B Black wire
Terminal C 2 brown wires
Terminal A Orange or orange/black
Terminal S Black
Terminal T White
Terminal X Yellow
