How do you replace this part? My model is PGB975SEM4SS , can you tell me step by step how to remove the old part and install the new one?
William for Model Number PGB975SEM4SS
Answer Hello William. 1.Remove oven door.
2.Remove the cooktop (see "To Raise or Remove
Cooktop" in this manual).
3.Remove manifold panel (remove (4) phillips head
screw from left, and right burner flame adjustment
switch and (3) 1/4" hex head screws from the under
side of the manifold panel.)
4.Remove cover over lock mechanism (remove (2)
1/4" hex head screws on each side of cover).
5.Label and remove wires from lock switch.

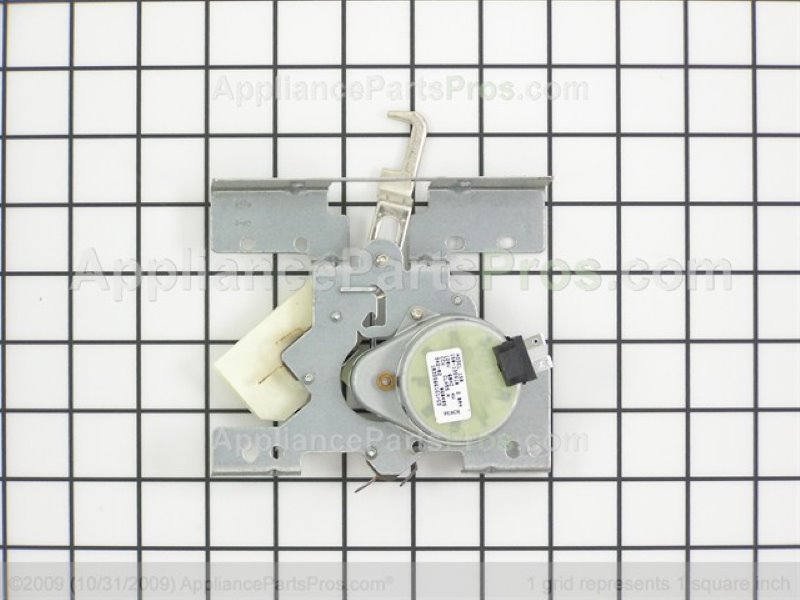

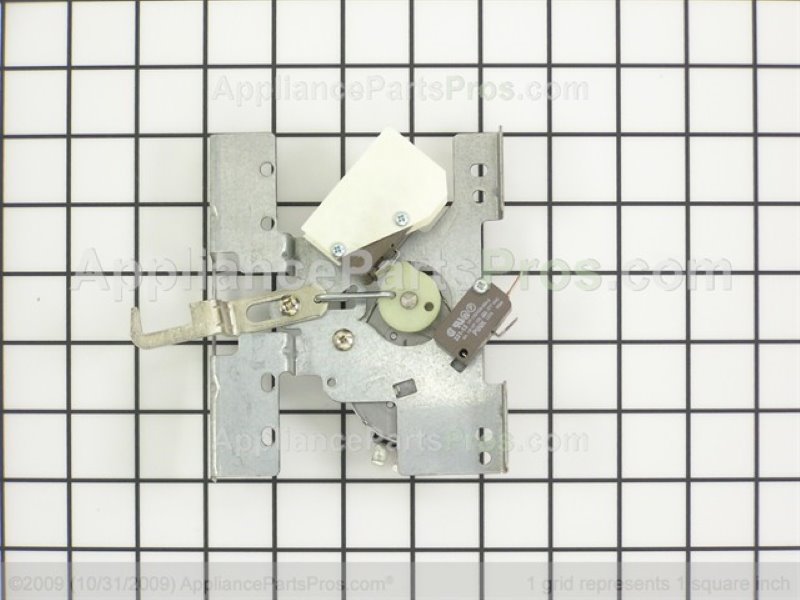

6.Remove screws securing lock mechanism to oven
frame.
7.Remove mechanism.
Note: After installing mechanism, rotate lock to
unlock position to prevent low temperature, lock-up.
