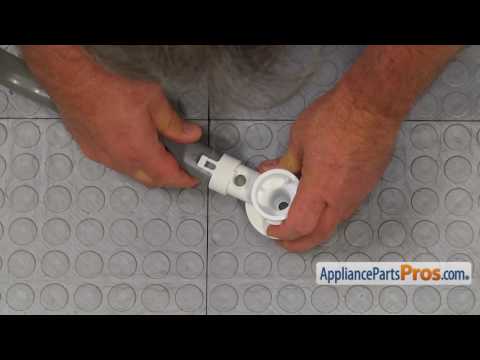

Upper Wash Arm Water Supply Tube

Part Number: AP3710053
MFG Part Number: WD12X10113
Made by: GE
Our Price
$37.33
Regularly You Save
$53.68 $16.35

In Stock — Ships Friday Guaranteed

Questions & Answers

6 Questions & Answers



Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. See all items in Dishwasher Hose Or Tube.
GE also makes various appliance models for Sears / Kenmore.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to determine if this part will work with your appliance.

Where can I find my model number?

More Product Images

Repair Help


Cross Reference Information

Part Number WD12X10113 (AP3710053) replaces 1088483, AH958923, EA958923, PS958923, WD12X10121, WD12X10213, WD18X10025.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Ask a Question

Most Interesting

Dishwasher not cleaning well. Upon investigation middle wash arm is not spinning at all. Water fill level seems ok. Sump is clean , also Did check and holes in wash arm are clean. Arm seams really wobbly. Diagram shows a bearing but mine seams like only a screw and washer and not really tight. Also where the middle rack seats on the supply tube for water to middle and upper arm should there be some type of o ring to get a tight seal? Any help is appreciated!

Dan for Model Number GE pdw8980L00SS

Answer

Was this helpful?

the two upper assemby arms do not turn, I replaced the arms, and the water supply. It seems not to have enough force to push the water to the upper arms. I'm concerned a previous service person left some aprts off,or used the wrong parts?? any ideas?

Dave for Model Number cdw938on20ss

Answer

Was this helpful?

Part 585 and 586 appear to be the same item (Upper Wash Arm Water Supply Tube). Part 586 is not the Upper Wash Arm Water Supply Tube. It appears to be another part.

Brent

Answer

Was this helpful?

Latest Questions

Concerning GE Model PDW9980L00SS Dishwasher, I am missing the o-ring for part AP3710053 Upper Wash Arm Water Supply Tube, so understand from a previous question that I need to order the entire part to get this. Here are my addition questions: 1. There is a hole next to the outlet for the water supply tube. Is there a screw that goes into the back of the dishwasher that holds this water supply tube in place? This is next to where the tube connects to the upper rack. If so, does this come with the supply tube? 2. How do you install the supply tube? I don't have a manual that shows how this is removed. Would it be helpful to have a manual for this unit? Thanks!

Charles for Model Number PDW9980L00SS

Answer

Was this helpful?

The top sprayer does not appear to be spinning. I removed the water supply tube and there appears to be a blockage in the upper half somewhere. I'm assuming the water should flow freely up thru the top and into the top sprayer. Could something get blocked in there from the water supply? I haven't been able to dislodge anything and I'm thinking the only option is to replace the part.

Rick P. for Model Number GE GLD6700N

Answer

Was this helpful?

Is their suppose to be an o-ring on the piece that protrudes and feeds water the second level inline tube that butts up against it?

Jeanette for Model Number pdw8680nooss

Answer

Was this helpful?
