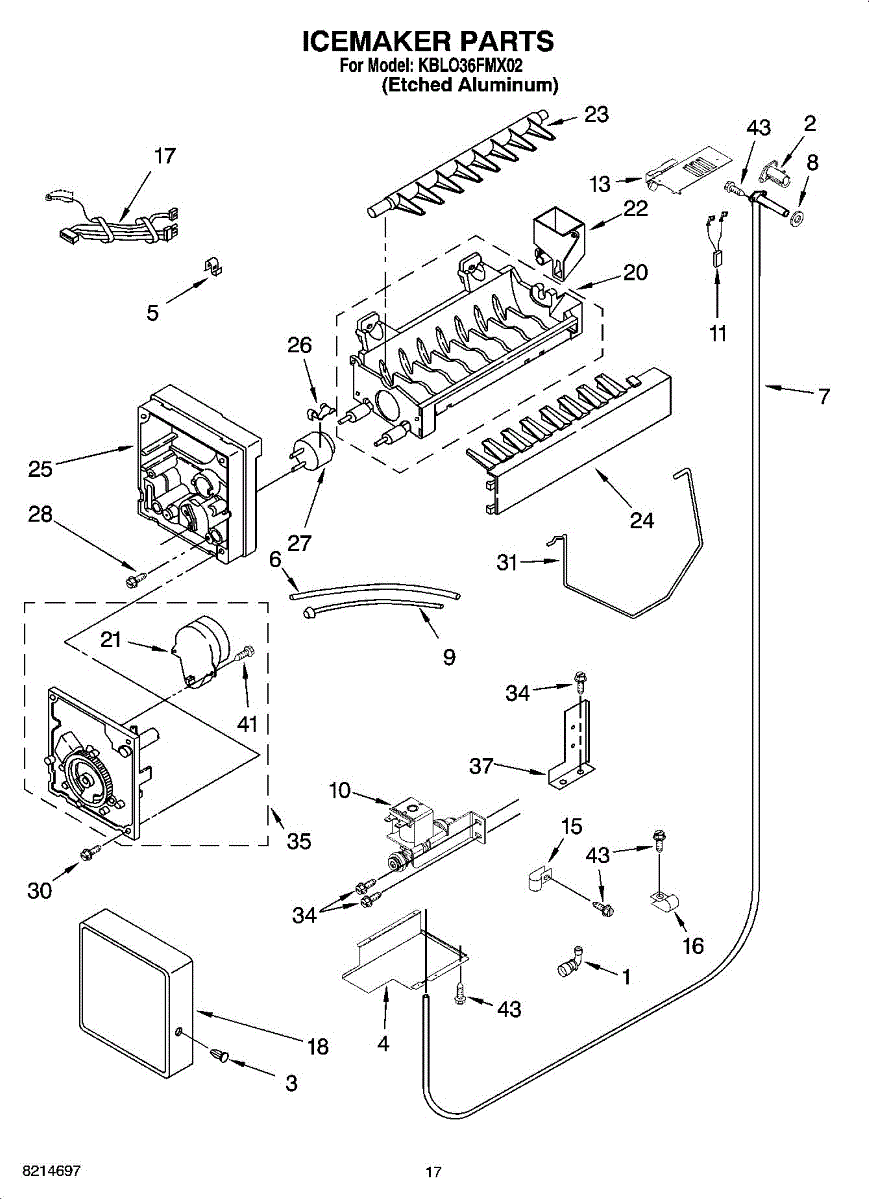

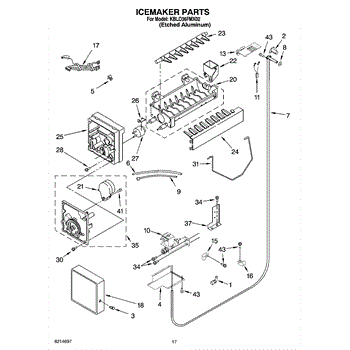

Parts for Whirlpool KBLO36FMX02: Icemaker Parts

Start New Search

36" Bottom Mount Built in Refrigerator

Location on Diagram Part Description Price & Availability
1

Tube, Valve

by Whirlpool
Part Number AP3130612

Our Price
$19.56
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
2
Heater, Fill Tube

Heater, Fill Tube

by Whirlpool
Part Number AP3175002

Our Price
$47.86
Add to Cart
3
Fastener, Snap-in

Fastener, Snap-in

by Whirlpool
Part Number AP3135855

Our Price
$1.93
Add to Cart
4

Cover, Bottom

by Whirlpool
Part Number AP3181774

  • Not available
5
Clip-Fuse

Clip-Fuse

by Whirlpool
Part Number AP2966063

Our Price
$1.93
Add to Cart
6
Tube-Water

Tube-Water

by Whirlpool
Part Number AP3956211

Our Price
$25.91
Add to Cart
7
Tube-Water

Tube-Water

by Whirlpool
Part Number AP3879401

Our Price
$29.91
Add to Cart
8
Gasket

Gasket

by Whirlpool
Part Number AP3135491

Our Price
$4.30
Add to Cart
9
Tube-Water

Tube-Water

by Whirlpool
Part Number AP3962989

Our Price
$32.75
Add to Cart
10
Valve-Inlt

Valve-Inlt

by Whirlpool
Part Number AP3879407

Our Price
$66.72
Add to Cart
11

Wire-Assy

by Whirlpool
Part Number AP3699210

Our Price
$29.28
Add to Cart
13

Shield, Heat

by Whirlpool
Part Number AP3175337

Our Price
$36.03
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
15

Clamp

by Whirlpool
Part Number AP3014929

  • Not available
16

Tube Clamp

by Whirlpool
Part Number AP3041791

Our Price
$1.93
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
17

Harns-Wire

by Whirlpool
Part Number AP4527522

Our Price
$42.32
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
18
Cover-Frnt

Cover-Frnt

by Whirlpool
Part Number AP3176273

  • Not available
20
Ice Mold

Ice Mold

by Whirlpool
Part Number AP4365074

 (4)
Our Price
$62.38
Add to Cart
21
Ice Maker Control Module

Ice Maker Control Module

by Whirlpool
Part Number AP4359694

 (14)
Our Price
$66.40
Add to Cart
22
Fill Cup & Bearing Assembly

Fill Cup & Bearing Assembly

by Whirlpool
Part Number AP3131673

 (3)
Our Price
$14.03
Add to Cart
23
Ejector

Ejector

by Whirlpool
Part Number AP2936247

Our Price
$20.37
Add to Cart
24
Ice Striper

Ice Striper

by Whirlpool
Part Number AP3132762

 (1)
Our Price
$18.97
Add to Cart
25
Support

Support

by Whirlpool
Part Number AP2987801

Our Price
$31.86
Add to Cart
26
Clip

Clip

by Whirlpool
Part Number AP3875565

Our Price
$1.99
Add to Cart
27
Icemaker Cycling Thermostat

Icemaker Cycling Thermostat

by Whirlpool
Part Number AP3135377

 (2)
Our Price
$21.66
Add to Cart
28

Screw

by Whirlpool
Part Number AP3180267

Our Price
$3.53
Add to Cart
30
Screw

Screw

by Whirlpool
Part Number AP2945057

Our Price
$5.57
Add to Cart
31
Arm-Shut

Arm-Shut

by Whirlpool
Part Number AP3854508

Our Price
$21.98
Add to Cart
34
Screw

Screw

by Whirlpool
Part Number AP3128541

Our Price
$4.29
Add to Cart
35
Icemaker Motor Module

Icemaker Motor Module

by Whirlpool
Part Number AP3177342

 (3)
Our Price
$77.45
Add to Cart
37

Bracket

by Whirlpool
Part Number AP3777223

  • Not available
41

Screw 3-24 X 3/8

by Whirlpool
Part Number AP3042578

Our Price
$4.28
Add to Cart
43
Screw

Screw

by Whirlpool
Part Number AP3039491

Our Price
$1.88
Add to Cart
100
Icemaker

Icemaker

by Whirlpool
Part Number AP4701264

Our Price
$129.90
Add to Cart
