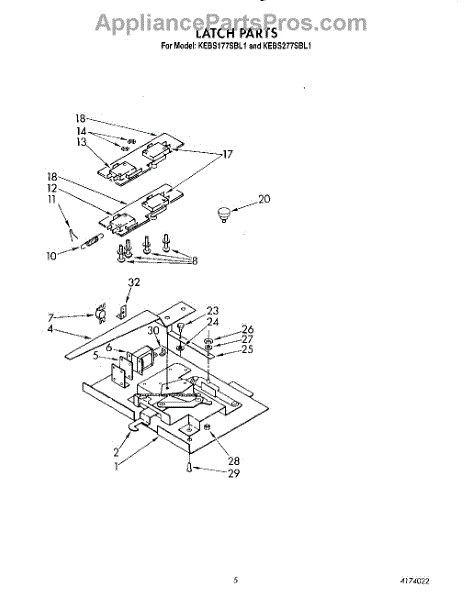

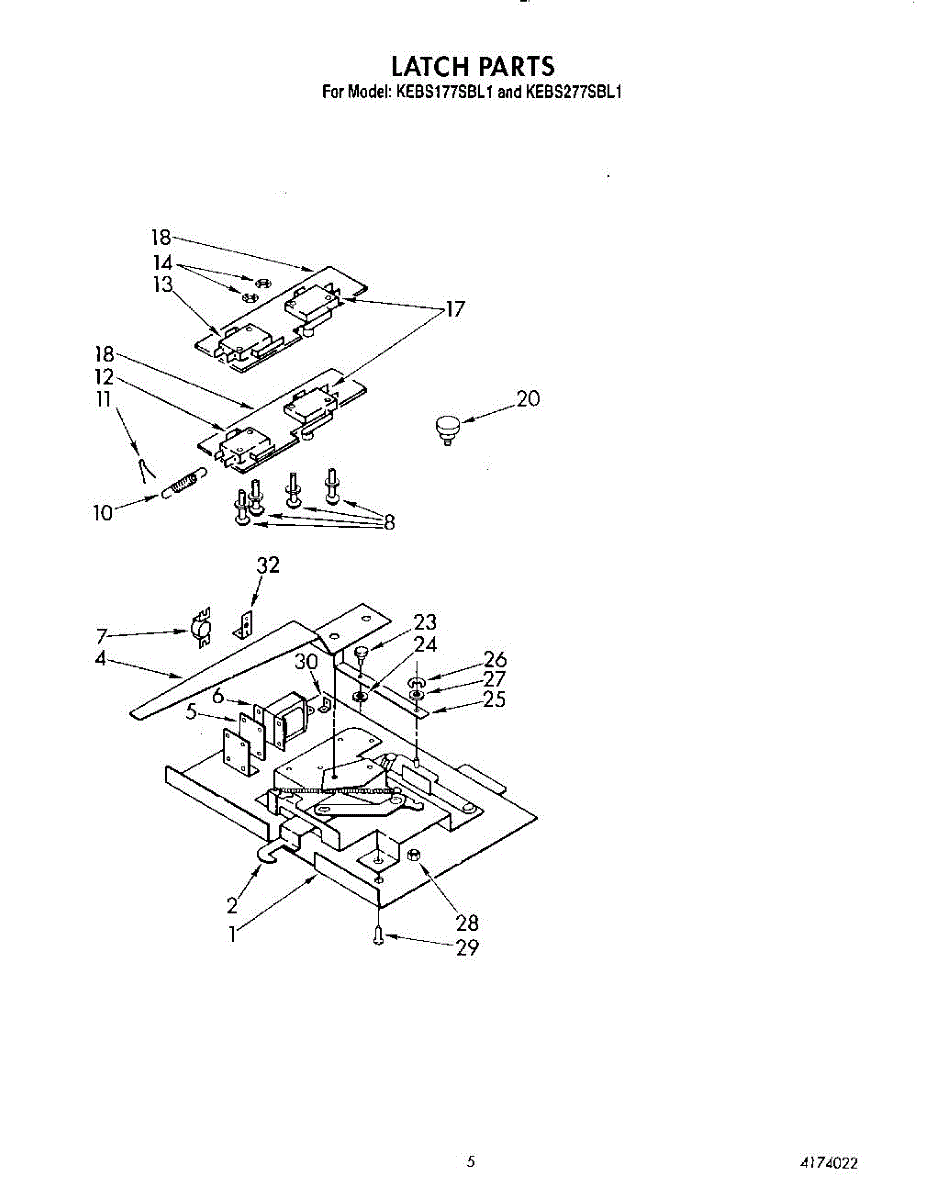

Parts for KitchenAid KEBS177SWH0: Latch Parts

Start New Search

Electric Built in Oven

Location on Diagram Part Description Price & Availability
1

Plate

by Whirlpool
Part Number AP3075910

  • Not available
2
Latch Assembly

Latch Assembly

by Whirlpool
Part Number AP2923040

  • Not available
4

Not Available

by Whirlpool
Part Number AP3026544

  • Not available
5

Bracket, Mounting

by Whirlpool
Part Number AP3026497

  • Not available
6

Solenoid

by Whirlpool
Part Number AP2921365

  • Not available
7

Thrmst-Fix

by Whirlpool
Part Number AP3119555

  • Not available
7
Thrmst-Fix

Thrmst-Fix

by Whirlpool
Part Number AP3119574

  • Not available
8

Screw

by Whirlpool
Part Number AP3075964

  • Not available
10

Spring

by Whirlpool
Part Number AP2921368

  • Not available
11

Cotter Pin

by Whirlpool
Part Number AP2921369

  • Not available
12
Switch

Switch

by Whirlpool
Part Number AP3119526

  • Not available
13
Switch

Switch

by Whirlpool
Part Number AP3026299

  • Not available
14

Nut

by Whirlpool
Part Number AP3075965

  • Not available
17
Switch, Latch

Switch, Latch

by Whirlpool
Part Number AP2922528

  • Not available
18

Insulator

by Whirlpool
Part Number AP2921911

  • Not available
20

Screw

by Whirlpool
Part Number AP3075978

  • Not available
23

Screw

by Whirlpool
Part Number AP3075948

  • Not available
24

Spacer

by Whirlpool
Part Number AP3075916

  • Not available
25

Arm

by Whirlpool
Part Number AP3075949

  • Not available
26

Retainer

by Whirlpool
Part Number AP3075979

  • Not available
27

Washer

by Whirlpool
Part Number AP3055057

  • Not available
28

Nut

by Whirlpool
Part Number AP3075977

  • Not available
29

Screw

by Whirlpool
Part Number AP3154447

  • Not available
30

Bracket, Switch

by Whirlpool
Part Number AP3026486

  • Not available
32

Harns-Wire

by Whirlpool
Part Number AP3053633

  • Not available
32

Insulator Sleeve, Safety Switch

by Whirlpool
Part Number AP3053634

  • Not available
32

Harness, Latch

by Whirlpool
Part Number AP3053786

  • Not available
32

Bracket

by Whirlpool
Part Number AP3075962

  • Not available

Use & Care Guide

by Whirlpool
Part Number AP3053641

  • Not available

Instructions, Installation (trim Kit)

by Whirlpool
Part Number AP3053642

  • Not available

List, Repair Parts

by Whirlpool
Part Number AP3053643

  • Not available
