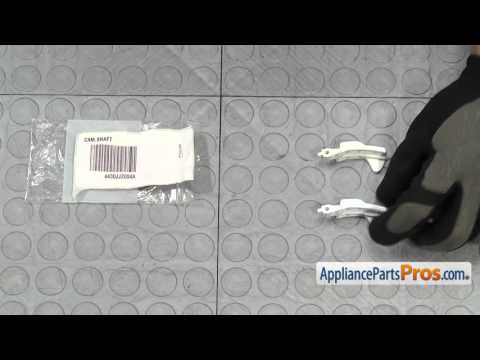

What is the size of the screw I need to attach this cam to the door? There wasn't one in the package with the cam. Thanks.
Cindy for Model Number LRFC25750TT LG Fridge
Answer Hello Cindy! Unfortunately, we do not have this information available as the manufacturer does not list the size or type. However, the screw needed is part number 1SZZJA3011D. Thanks!
Thank you so much for the prompt response. Can you give me installation instructions. It looks like I need to pull off the door gasget to get to this piece....
Jeff M. for Model Number LRFD25850ST
Answer Jeff, No, you do not need to remove the door gasket, But, you do have the removed the complete door : Left Door 1. Disconnect water supply tube by pushing back on the disconnect ring . 2. Open door. Loosen top hinge cover screw . Use flat tip screwdriver to pry back hooks on front underside of cover . Lift up cover. 3. Disconnect door switch wire harness . Remove cover. 4. Attach the tube on the door with door. 5. Pull out the tube. 6. Disconnect the three wire harnesses . Remove the grounding screw . 7. Rotate hinge lever counterclockwise and remove. Lift top hinge free of hinge lever latch . CAUTION: When lifting hinge free of latch, be careful that door does not fall forward. 8. Lift door up from middle hinge pin and remove door. 9. Place door, inside facing up, down onto a non-scratching surface. Right Door 1. Open door. Loosen top hinge cover screw . Lift up cover . 2. Disconnect door switch wire harness . Remove cover.
3. Disconnect wire harness . Remove the grounding screw. 4. Rotate hinge lever clockwise and remove. Lift top hinge free of hinge lever latch. 5. Lift door up from middle hinge pin and remove door. 6. Place door, inside facing up, down onto a non-scratching surface. You should find the lower half of the closer/cam assembly attached to the middle door hinge assembly, and the cam will be attached to the bottom of the door. Good Luck and Thanks
