Does p/n 4890JD1072A come with the 4 roller assemblies or do they need to be ordered separately?

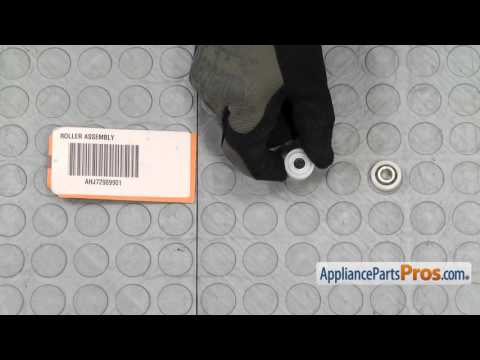

The Tv Cover 3550JJ0009A does not come with the 4 rollers attached and they rollers AHJ72989901 would need to be purchased separately and would require ordering 4. You would also need to order 4 screws 1SZZJA3011B to install the rollers.
These have all come out from under my drawers 1 by 1....each looks cracked so will need to replace them, but WHERE do they attach? Each one dropped out when I opened a drawer so I know they belong with the drawers somewhere, but I see no place for them to attach!
Answer Hi Sharon. We have looked in the service manual. It does not explain any drawer assy. or shelf roller functions and dis assembly process. In looking at the parts view it shows the glass cover-t/v. part # 4890JD1072A that the rollers connect to. Right above the drawers. On the underside of the cover there are areas for each roller to screw on to. There are 1-roller on each outer side. Then there are 2- center areas where the rollers go there. You will need 4- rollers part # AHJ72989901 and 4- screws part # 1SZZJA3011B. Thank You.
