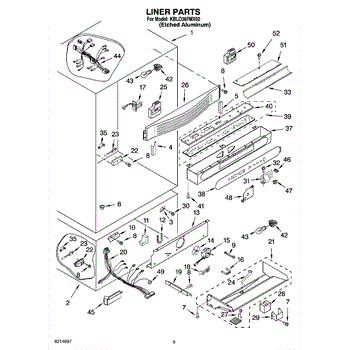

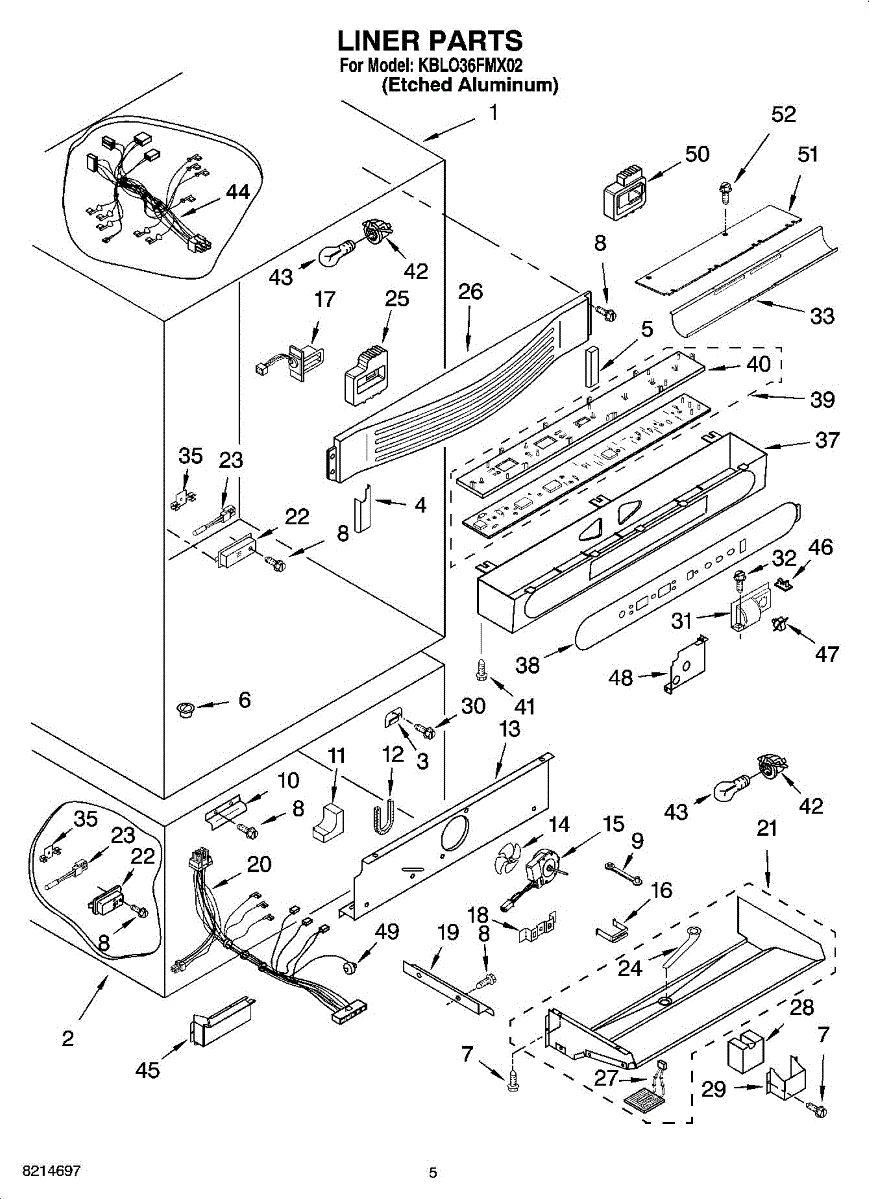

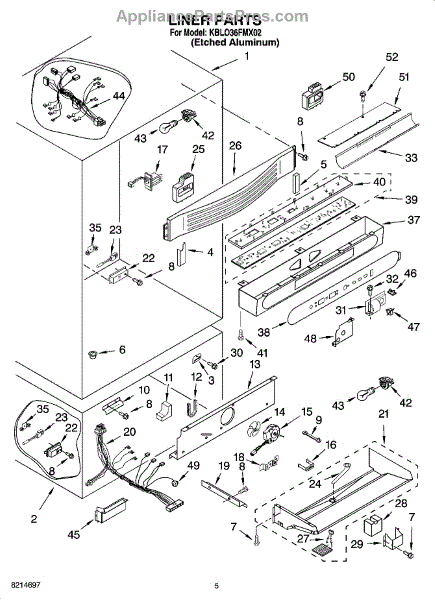

Parts for KitchenAid KBLO36FMX02: Liner Parts

Start New Search

36" Bottom Mount Built in Refrigerator

Location on Diagram Part Description Price & Availability
Refrigerater Water Filter

Refrigerater Water Filter

by Whirlpool
Part Number AP3672633

Our Price
$45.01
Add to Cart
Refrigerator Water Filter 2 Pack

Refrigerator Water Filter 2 Pack

by Whirlpool
Part Number AP3962047

Our Price
$93.37
Add to Cart
3

Cover, Heat Exchanger

by Whirlpool
Part Number AP3128560

Our Price
$21.94
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
4

Diffuser Cap, Left Side

by Whirlpool
Part Number AP3130587

Our Price
$39.57
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
5

Diffuser Cap, Right Side

by Whirlpool
Part Number AP2992629

Our Price
$39.46
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
6
Release Valve

Release Valve

by Whirlpool
Part Number AP2984541

Our Price
$25.82
Add to Cart
7
Screw

Screw

by Whirlpool
Part Number AP3039491

 (1)
Our Price
$1.88
Add to Cart
8
Screw

Screw

by Whirlpool
Part Number AP3039491

 (1)
Our Price
$1.88
Add to Cart
9
Fan Blade

Fan Blade

by Whirlpool
Part Number AP3672786

Our Price
$39.49
Add to Cart
10

Wiring Channel, Freezer Rear

by Whirlpool
Part Number AP2992631

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
11

Foam, Fan Shroud

by Whirlpool
Part Number AP3128564

Our Price
$40.44
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
12

Grommet, Flexible

by Whirlpool
Part Number AP3128565

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13

Shroud, Evaporator Fan

by Whirlpool
Part Number AP3128566

Our Price
$39.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
14
Evaporator Fan Motor Blade

Evaporator Fan Motor Blade

by Whirlpool
Part Number AP3132749

Our Price
$20.59
Add to Cart
15
Motor-Evap

Motor-Evap

by Whirlpool
Part Number AP4411660

Our Price
$90.73
Add to Cart
16
Fan Blade

Fan Blade

by Whirlpool
Part Number AP3672786

Our Price
$39.49
Add to Cart
17
Air Baffle Assembly

Air Baffle Assembly

by Whirlpool
Part Number AP3174991

Our Price
$139.75
Add to Cart
18

Bracket

by Whirlpool
Part Number AP3128569

Our Price
$22.17
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
19

Wiring Channel

by Whirlpool
Part Number AP3181415

Our Price
$48.94
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
20

Harns-Wire

by Whirlpool
Part Number AP3778612

Our Price
$43.23
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
21

Evap Cover Assy

by Whirlpool
Part Number AP3799103

Our Price
$104.76
Add to Cart
22

Cover, Thermistor

by Whirlpool
Part Number AP2935874

Our Price
$3.67
Add to Cart
23
Thermistor

Thermistor

by Whirlpool
Part Number AP3757728

Our Price
$17.35
Add to Cart
24
Tube-Drain

Tube-Drain

by Whirlpool
Part Number AP3109128

Our Price
$67.80
Add to Cart
25

Insulation, Baffle

by Whirlpool
Part Number AP3128574

Our Price
$28.91
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
26

Cover, Air Diffuser

by Whirlpool
Part Number AP3128575

Our Price
$54.60
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
27
Tube-Drain

Tube-Drain

by Whirlpool
Part Number AP3109128

Our Price
$67.80
Add to Cart
28

Insulation, Tube Drain

by Whirlpool
Part Number AP2992645

Our Price
$38.37
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
29

Cover, Tube Drain

by Whirlpool
Part Number AP2992646

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
30
Screw

Screw

by Whirlpool
Part Number AP3039491

 (1)
Our Price
$1.88
Add to Cart
31

Housing, Switch

by Whirlpool
Part Number AP3128576

Our Price
$35.47
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
32
Screw

Screw

by Whirlpool
Part Number AP3134934

Our Price
$2.45
Add to Cart
33

Lens-Light

by Whirlpool
Part Number AP3777314

Our Price
$77.46
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
35

Clip, Thermistor

by Whirlpool
Part Number AP3085988

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
37

Contrl-Box

by Whirlpool
Part Number AP3608700

  • Not available
38

Overlay

by Whirlpool
Part Number AP3180733

  • Not available
39
Electronic Control Board

Electronic Control Board

by Whirlpool
Part Number AP3962998

Our Price
$222.64
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
40

Insert

by Whirlpool
Part Number AP3776645

Our Price
$25.31
Add to Cart
41
Screw

Screw

by Whirlpool
Part Number AP3128541

Our Price
$4.48
Add to Cart
42
Light Socket Kit

Light Socket Kit

by Whirlpool
Part Number AP3108436

 (3)
Our Price
$20.52
Add to Cart
43
Bulb-Ligh

Bulb-Ligh

by Whirlpool
Part Number AP4067417

 (1)
Our Price
$3.81
Add to Cart
44

Harns-Wire

by Whirlpool
Part Number AP3139860

Our Price
$57.42
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
45

Channel, Wiring Freezer Light

by Whirlpool
Part Number AP3180201

  • Not available
46

Wiring Clip

by Whirlpool
Part Number AP3044371

Our Price
$3.68
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
47
Switch

Switch

by Whirlpool
Part Number AP4557588

 (1)
Our Price
$19.51
Add to Cart
48

Wiring Cover, Icemaker

by Whirlpool
Part Number AP2992660

Our Price
$35.58
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
49
Bimetl-Def

Bimetl-Def

by Whirlpool
Part Number AP4374827

Our Price
$25.61
Add to Cart
50

Diffuser

by Whirlpool
Part Number AP5807832

Our Price
$24.32
Add to Cart
51
Support, Control Bracket

Support, Control Bracket

by Whirlpool
Part Number AP3175327

Our Price
$26.87
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
52
Screw

Screw

by Whirlpool
Part Number AP2999563

Our Price
$1.98
Add to Cart
