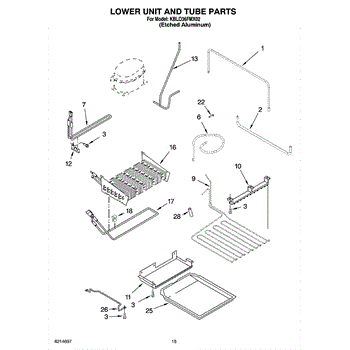

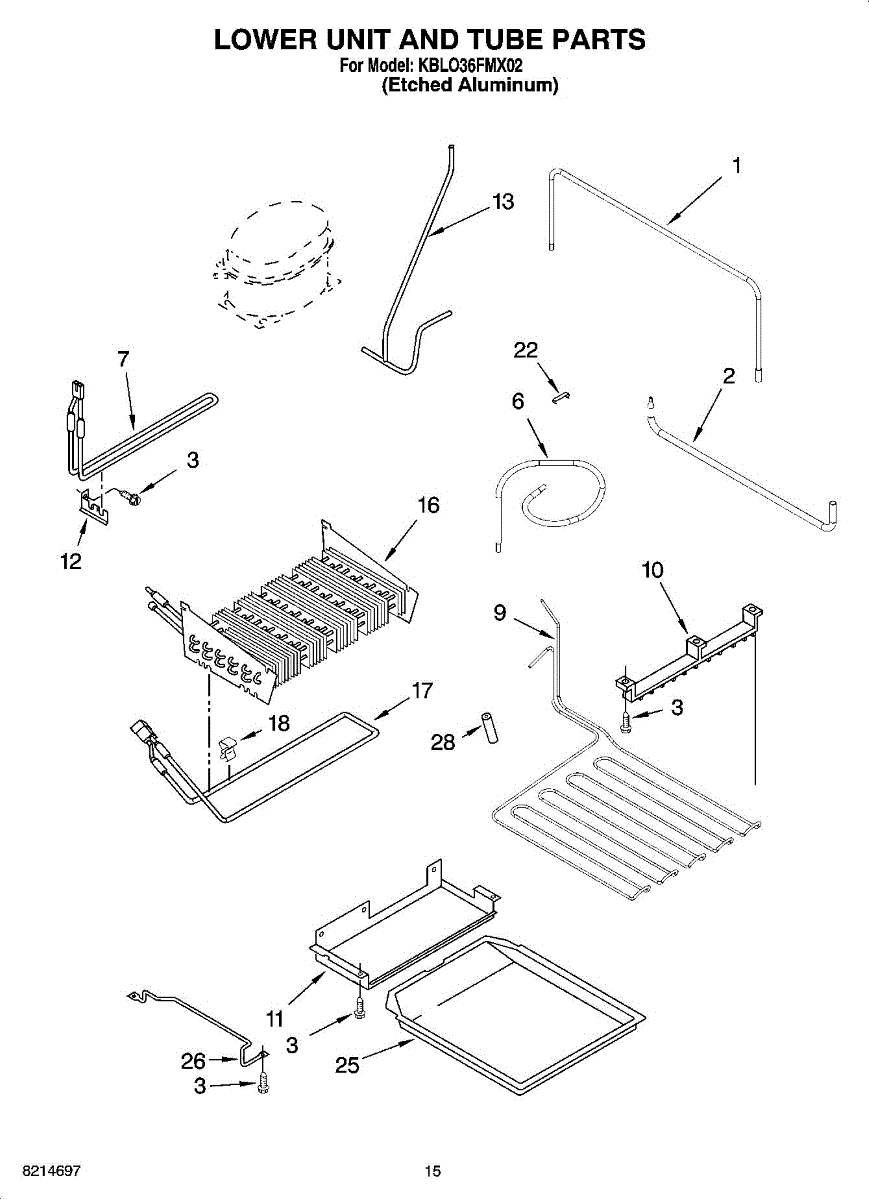

Parts for Whirlpool KBLO36FMX02: Lower Unit and Tube Parts

Start New Search

36" Bottom Mount Built in Refrigerator

Location on Diagram Part Description Price & Availability
1

Tube

by Whirlpool
Part Number AP3882910

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
2

Tube-Extns

by Whirlpool
Part Number AP3179785

Our Price
$21.26
Add to Cart
3
Screw

Screw

by Whirlpool
Part Number AP3039491

Our Price
$1.88
Add to Cart
6

Tube

by Whirlpool
Part Number AP3179784

Our Price
$24.49
Add to Cart
7
Heater, Defrost (rear)

Heater, Defrost (rear)

by Whirlpool
Part Number AP3128608

Our Price
$42.70
Add to Cart
9
Heater-Pan

Heater-Pan

by Whirlpool
Part Number AP3902986

Our Price
$96.80
Add to Cart
10

Hanger, Heater

by Whirlpool
Part Number AP3086080

Our Price
$17.96
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
11

Shield, Drain Pan

by Whirlpool
Part Number AP3041880

Our Price
$49.47
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
12

Support Heater

by Whirlpool
Part Number AP3046564

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13

Tube, Discharge

by Whirlpool
Part Number AP3181773

Our Price
$22.07
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
16

Evaporator

by Whirlpool
Part Number AP3777299

Our Price
$162.95
Add to Cart
17
Heater, Defrost (front)

Heater, Defrost (front)

by Whirlpool
Part Number AP3128609

Our Price
$42.91
Add to Cart
18

Clamp, Heater

by Whirlpool
Part Number AP3128610

Our Price
$2.80
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
22

Clip

by Whirlpool
Part Number AP4358150

Our Price
$17.84
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
25
Pan-Drip

Pan-Drip

by Whirlpool
Part Number AP3040833

Our Price
$48.34
Add to Cart
26

Bracket, Drain Pan (left)

by Whirlpool
Part Number AP3041786

  • Not available
26

Bracket, Drain Pan (right)

by Whirlpool
Part Number AP3041787

Our Price
$21.73
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
28

Damper, Heater

by Whirlpool
Part Number AP3130611

Our Price
$25.46
Add to Cart
