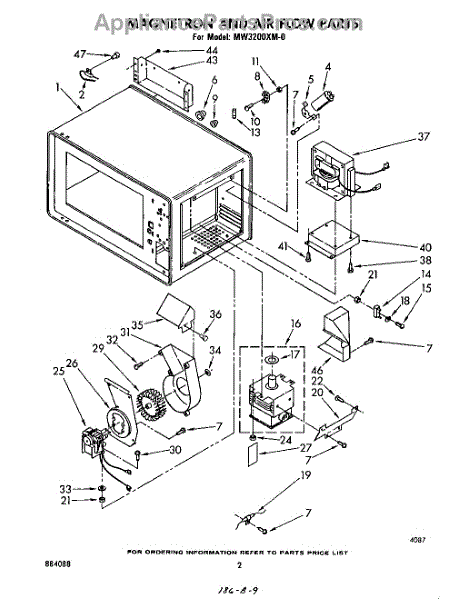

Parts for Whirlpool MW3200XM0: Magnetron and Air Flow Parts

Start New Search

Microwave

Location on Diagram Part Description Price & Availability
2

Protector, Thermal

by Whirlpool
Part Number AP2997787

  • Not available
4

Capacitor

by Whirlpool
Part Number AP3023102

  • Not available
5

Bracket, Capacitor Mounting

by Whirlpool
Part Number AP3023103

  • Not available
6

Bushing, Large

by Whirlpool
Part Number AP3023104

  • Not available
7
Screw

Screw

by Whirlpool
Part Number AP3127552

 (1)
Our Price
$2.80
Add to Cart
8

Block-Fuse

by Whirlpool
Part Number AP3603506

  • Not available
9

Bushing, Small

by Whirlpool
Part Number AP3023105

  • Not available
10

Screw

by Whirlpool
Part Number AP3152580

  • Not available
11

Nut

by Whirlpool
Part Number AP2987026

  • Not available
13
Fuse 15A

Fuse 15A

by Whirlpool
Part Number AP3117830

Our Price
$10.12
Add to Cart
14
Diode

Diode

by Whirlpool
Part Number AP2997868

  • Not available
15

Screw

by Whirlpool
Part Number AP3073671

Our Price
$4.47
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
16

Magnetron (includes Illus. NO.17)

by Whirlpool
Part Number AP3023386

  • Not available
17

Gasket, Magnetron

by Whirlpool
Part Number AP2997795

  • Not available
18

Lockwasher

by Whirlpool
Part Number AP3176306

  • Not available
19

Thermal Protector, Magnetron

by Whirlpool
Part Number AP2997796

  • Not available
20

Support, Magnetron

by Whirlpool
Part Number AP3023107

  • Not available
21

Compression Nut

by Whirlpool
Part Number AP3042782

Our Price
$5.39
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
22

Screw, 6-32 X 1/4 Phillips Pan Head

by Whirlpool
Part Number AP3023141

  • Not available
24

Nut

by Whirlpool
Part Number AP3068058

  • Not available
25

Motor, Blower

by Whirlpool
Part Number AP3023110

  • Not available
26

Bracket, Blower

by Whirlpool
Part Number AP3023111

  • Not available
27

Foil Tape

by Whirlpool
Part Number AP3023112

  • Not available
29

Wheel, Blower

by Whirlpool
Part Number AP3023113

  • Not available
30

Screw

by Whirlpool
Part Number AP3138811

Our Price
$4.46
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
31

Housing, Blower

by Whirlpool
Part Number AP3023115

  • Not available
32

Screw

by Whirlpool
Part Number AP2996269

  • Not available
33

Latch

by Whirlpool
Part Number AP2945350

  • Not available
34

E-Ring, Blower Wheel

by Whirlpool
Part Number AP2997802

  • Not available
35

Duct, Blower

by Whirlpool
Part Number AP3023118

  • Not available
36
Rivet

Rivet

by Whirlpool
Part Number AP3015393

Our Price
$4.29
Add to Cart
37

Transformer

by Whirlpool
Part Number AP3023120

  • Not available
38

Bolt, 10-32 X 1-3/8

by Whirlpool
Part Number AP3023121

  • Not available
40

Support, Transformer

by Whirlpool
Part Number AP3023122

  • Not available
41

Screw, 10-32 X 3/8

by Whirlpool
Part Number AP3068061

  • Not available
43

Baffle, Exhaust

by Whirlpool
Part Number AP3023123

  • Not available
44

Rivet

by Whirlpool
Part Number AP3023124

  • Not available
46

Duct, Cavity

by Whirlpool
Part Number AP3023125

  • Not available
47

Rivet

by Whirlpool
Part Number AP3023248

  • Not available

Guide, Cooking

by Whirlpool
Part Number AP3068105

  • Not available

RCK310 Wall Mount Kit

by Whirlpool
Part Number AP3074258

  • Not available

Instructions, Installation

by Whirlpool
Part Number AP3074260

  • Not available

Cookbook

by Whirlpool
Part Number AP3074261

  • Not available

List, Repair Parts

by Whirlpool
Part Number AP3074264

  • Not available

Guide, Use & Care

by Whirlpool
Part Number AP3074368

  • Not available
  • Not available
Silicone Adhesive Sealant

Silicone Adhesive Sealant

by Whirlpool
Part Number AP3134060

Our Price
$29.47
Add to Cart
