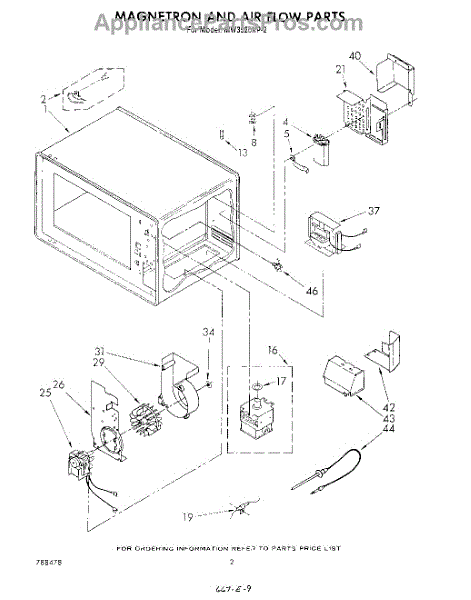

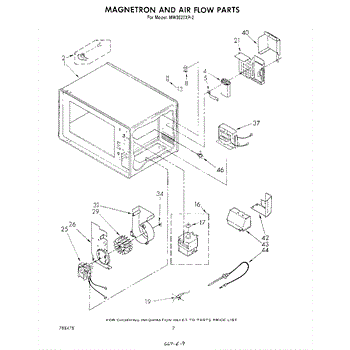

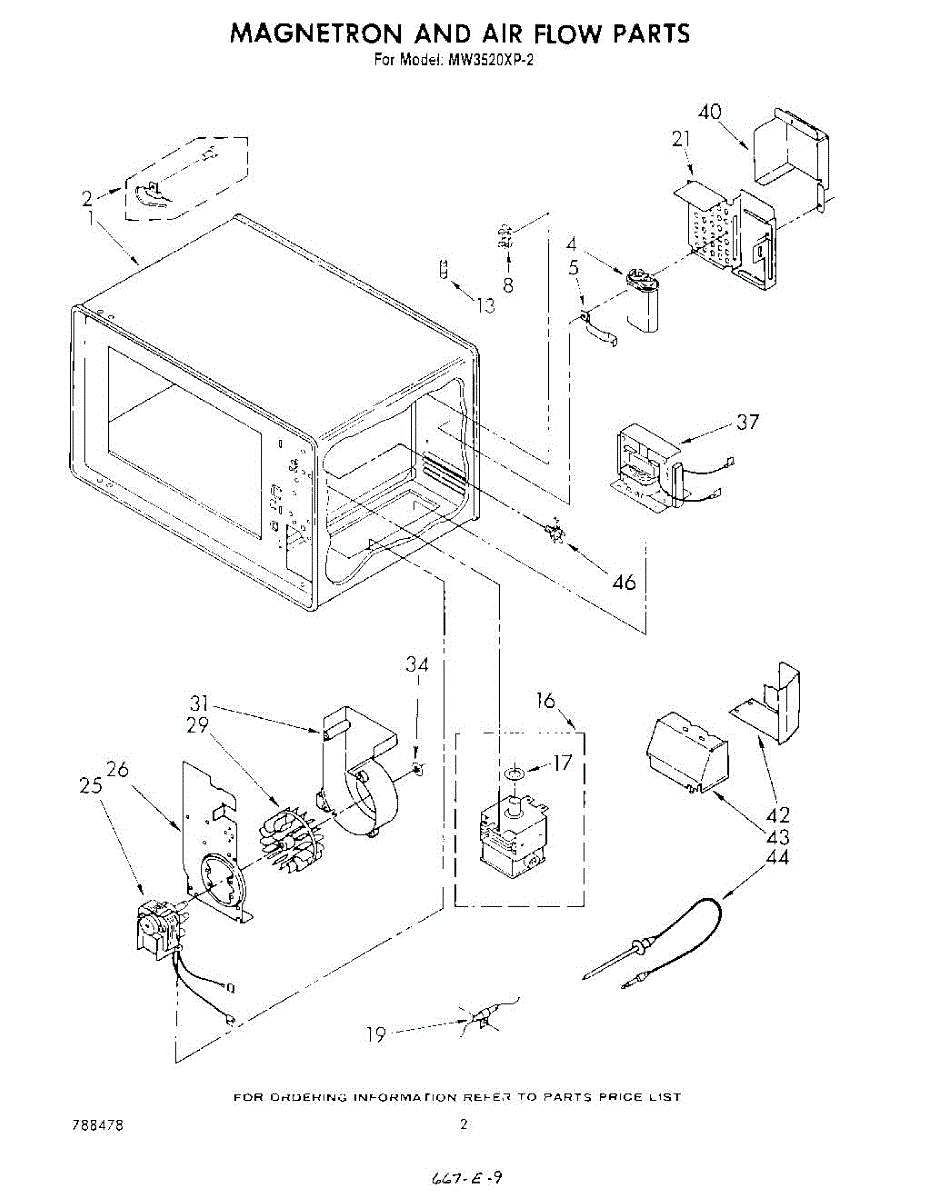

Parts for Whirlpool MW3520XP2: Magnetron and Air Flow Parts

Start New Search

Microwaves*

Location on Diagram Part Description Price & Availability
2

Protector, Thermal

by Whirlpool
Part Number AP2998086

  • Not available
4
Capactr-Mg

Capactr-Mg

by Whirlpool
Part Number AP3117828

  • Not available
5

Bracket, Capacitor Mounting

by Whirlpool
Part Number AP2997838

  • Not available
5
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
8

Nut

by Whirlpool
Part Number AP2987026

  • Not available
8

Screw

by Whirlpool
Part Number AP3152580

  • Not available
8

Block-Fuse

by Whirlpool
Part Number AP3603506

  • Not available
13
Fuse 15A

Fuse 15A

by Whirlpool
Part Number AP3117830

Our Price
$10.12
Add to Cart
16

Nut

by Whirlpool
Part Number AP3068058

  • Not available
16
Magnetron

Magnetron

by Whirlpool
Part Number AP3109457

Our Price
$153.53
Add to Cart
17

Gasket, Magnetron

by Whirlpool
Part Number AP2997795

  • Not available
19

Thermal Protector, Magnetron

by Whirlpool
Part Number AP2997796

  • Not available
21

Cover, Lead

by Whirlpool
Part Number AP2997861

  • Not available
21
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
25

Latch

by Whirlpool
Part Number AP2945350

  • Not available
25

Motor, Blower (includes Illus. 34)

by Whirlpool
Part Number AP2997798

  • Not available
25
Diode

Diode

by Whirlpool
Part Number AP2997868

  • Not available
25

Screw

by Whirlpool
Part Number AP3138811

Our Price
$4.29
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
26

Bracket, Blower

by Whirlpool
Part Number AP2997897

  • Not available
26
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
29

Wheel-Blower

by Whirlpool
Part Number AP2997887

  • Not available
31

Screw

by Whirlpool
Part Number AP2996269

  • Not available
31

Housing, Blower (includes Illus. 34)

by Whirlpool
Part Number AP2997888

  • Not available
34

E-Ring, Blower Wheel

by Whirlpool
Part Number AP2997802

  • Not available
37
High Voltage Transformer

High Voltage Transformer

by Whirlpool
Part Number AP2997947

  • Not available
37

Screw, 10-32 X 3/8

by Whirlpool
Part Number AP3068061

  • Not available
40

Cover, Lead

by Whirlpool
Part Number AP2997873

  • Not available
40
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
42

Air Duct, Front

by Whirlpool
Part Number AP2997898

  • Not available
42
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
43

Air Duct, Rear

by Whirlpool
Part Number AP2997899

  • Not available
43
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
44

Probe, Temperature

by Whirlpool
Part Number AP2997904

  • Not available
46

Nut, 1/4 Hex

by Whirlpool
Part Number AP2943263

  • Not available
46

Jack, Probe

by Whirlpool
Part Number AP2997963

  • Not available
46

Washer

by Whirlpool
Part Number AP3068128

  • Not available
46

Lock Washer

by Whirlpool
Part Number AP3077027

  • Not available

MK100 Under-the-Cabinet Mounting Kit

by Whirlpool
Part Number AP3068078

  • Not available

Driver, Torx (t-20)

by Whirlpool
Part Number AP3068090

  • Not available

Wall Mount Kit

by Whirlpool
Part Number AP3068113

  • Not available

Cookbook

by Whirlpool
Part Number AP3068115

  • Not available

Guide, Use & Care

by Whirlpool
Part Number AP3068131

  • Not available

List, Repair Parts

by Whirlpool
Part Number AP3068150

  • Not available
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Silicone Adhesive Sealant

Silicone Adhesive Sealant

by Whirlpool
Part Number AP3134060

Our Price
$28.59
Add to Cart
