Where can I find a image of these parts, showing how they are installed?
Jr for Model Number 61003425 and 61003421

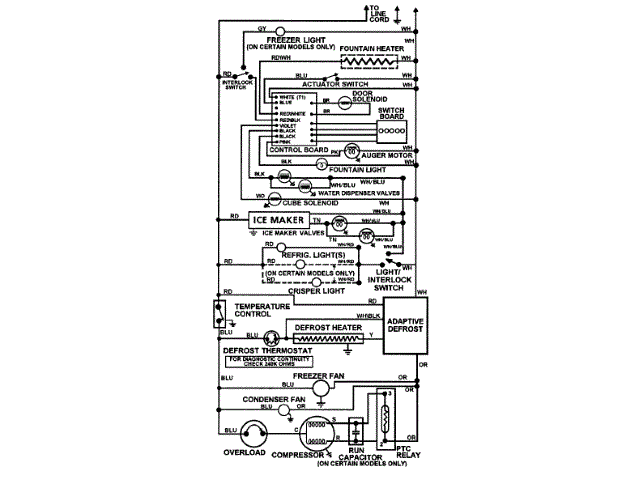

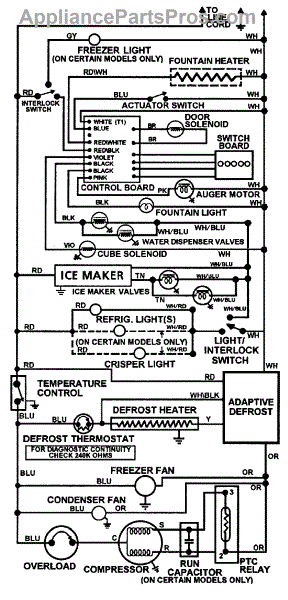

Answer JR, Apparently you're working on a Maytag refrigeration product, and you're working on the water and ice dispenser. We'll send you the information we have,but The 61003421 control is mounted on the backside of the dispenser escutcheon, and the 61003425 control board is mounted the the bracket switch assembly, and they are connected together by the 4 pin wire harness on the control board.
