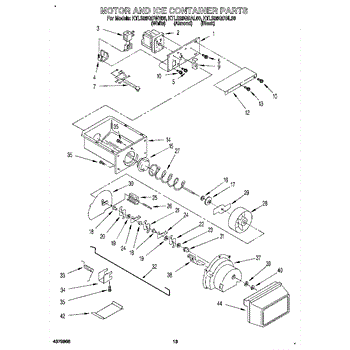

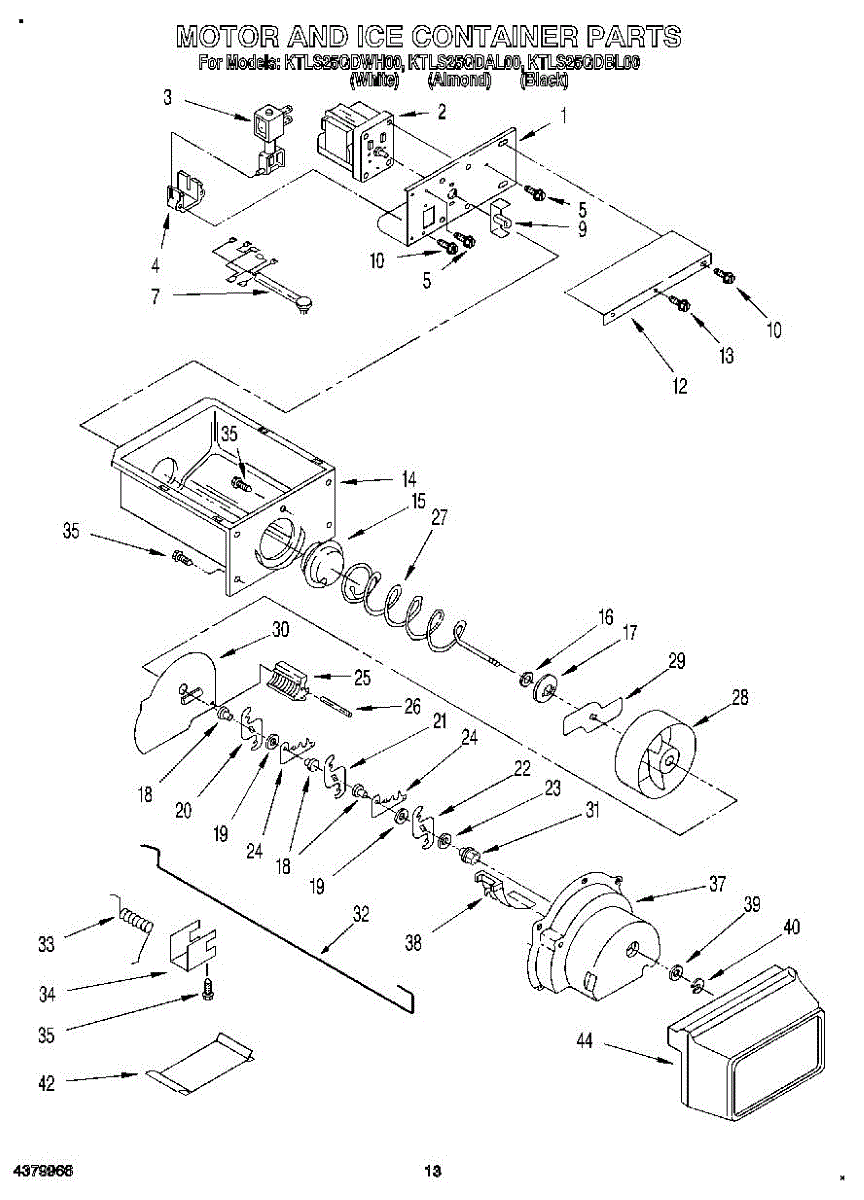

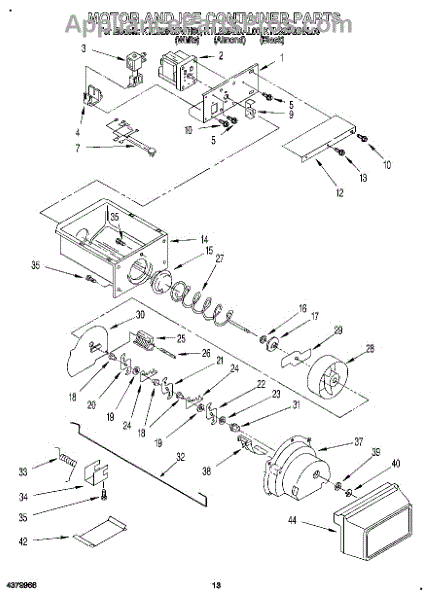

Parts for KitchenAid KTLS25QDBL00: Motor and Ice Container Parts

Start New Search

Top-Mount Refrigerator

Location on Diagram Part Description Price & Availability
1

Bracket, Motor

by Whirlpool
Part Number AP2976907

  • Not available
2
Ice Dispenser Motor

Ice Dispenser Motor

by Whirlpool
Part Number AP2991305

 (2)
Our Price
$116.04
Add to Cart
3
Solenoid

Solenoid

by Whirlpool
Part Number AP3132895

Our Price
$53.41
Add to Cart
4
Solenoid Guide

Solenoid Guide

by Whirlpool
Part Number AP3132881

Our Price
$4.48
Add to Cart
5
Screw

Screw

by Whirlpool
Part Number AP3085030

Our Price
$4.47
Add to Cart
7

Wiring Assembly, Ice Dispenser

by Whirlpool
Part Number AP2976909

  • Not available
9
Motor Coupling

Motor Coupling

by Whirlpool
Part Number AP4363997

 (4)
Our Price
$8.90
Add to Cart
10
Screw

Screw

by Whirlpool
Part Number AP3133440

 (1)
Our Price
$2.45
Add to Cart
12

Cover, Motor

by Whirlpool
Part Number AP2976910

  • Not available
13
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$4.33
Add to Cart
14

Ice Container No Longer Available

by Whirlpool
Part Number AP2976911

  • Not available
15
Auger Coupling

Auger Coupling

by Whirlpool
Part Number AP2998629

Our Price
$7.32
Add to Cart
16

Stop, Cone

by Whirlpool
Part Number AP2936424

  • Not available
17

Feeder Cone

by Whirlpool
Part Number AP2936425

  • Not available
18
Spacer, Step

Spacer, Step

by Whirlpool
Part Number AP3037579

Our Price
$5.41
Add to Cart
19
Spacer, Flat

Spacer, Flat

by Whirlpool
Part Number AP3037577

Our Price
$12.30
Add to Cart
20
Blade

Blade

by Whirlpool
Part Number AP4511103

 (1)
Our Price
$19.53
Add to Cart
21
Blade

Blade

by Whirlpool
Part Number AP4511104

Our Price
$25.88
Add to Cart
22
Blade

Blade

by Whirlpool
Part Number AP4511105

Our Price
$27.88
Add to Cart
23
Washer

Washer

by Whirlpool
Part Number AP2967610

 (1)
Our Price
$3.86
Add to Cart
24
Blade, Fixed

Blade, Fixed

by Whirlpool
Part Number AP2941102

Our Price
$12.83
Add to Cart
25
Block Blade

Block Blade

by Whirlpool
Part Number AP3133316

Our Price
$4.48
Add to Cart
26
Roll Pin

Roll Pin

by Whirlpool
Part Number AP2936434

Our Price
$5.44
Add to Cart
27
Conveyor

Conveyor

by Whirlpool
Part Number AP2976912

  • Not available
28
Ice Dispenser Drum

Ice Dispenser Drum

by Whirlpool
Part Number AP3109184

 (23)
Our Price
$20.23
Add to Cart
29
Ice Dispenser Drum

Ice Dispenser Drum

by Whirlpool
Part Number AP3109184

 (23)
Our Price
$20.23
Add to Cart
30
Ice Bucket Baffle

Ice Bucket Baffle

by Whirlpool
Part Number AP2978246

 (2)
Our Price
$9.43
Add to Cart
31
Bearing Nut

Bearing Nut

by Whirlpool
Part Number AP2936439

 (1)
Our Price
$4.80
Add to Cart
32

Control Arm

by Whirlpool
Part Number AP2976913

  • Not available
33
Return Spring

Return Spring

by Whirlpool
Part Number AP2936516

Our Price
$18.94
Add to Cart
34
Rod Retainer Clip

Rod Retainer Clip

by Whirlpool
Part Number AP2936517

Our Price
$4.47
Add to Cart
35
Screw

Screw

by Whirlpool
Part Number AP3001684

Our Price
$3.41
Add to Cart
37
Crusher Housing

Crusher Housing

by Whirlpool
Part Number AP4373156

Our Price
$39.73
Add to Cart
38
Ice Deflector

Ice Deflector

by Whirlpool
Part Number AP2936521

 (1)
Our Price
$7.32
Add to Cart
39
Plain Washer

Plain Washer

by Whirlpool
Part Number AP2936522

Our Price
$4.48
Add to Cart
40
Retainer Ring

Retainer Ring

by Whirlpool
Part Number AP2936523

Our Price
$4.47
Add to Cart
42

Deflector No Longer Available.

by Whirlpool
Part Number AP3103401

  • Not available
44

Front Cover, Ice Container

by Whirlpool
Part Number AP2979456

  • Not available

Door Removal Instructions

by Whirlpool
Part Number AP3064897

  • Not available

Care & Use Guide

by Whirlpool
Part Number AP3065227

  • Not available

Service & Wiring Sheet

by Whirlpool
Part Number AP3065228

  • Not available

Energy Guide

by Whirlpool
Part Number AP3065230

  • Not available
Clip Kit

Clip Kit

by Whirlpool
Part Number AP3069258

Our Price
$7.06
Add to Cart
Cork Sealer

Cork Sealer

by Whirlpool
Part Number AP3069517

Our Price
$34.90
Add to Cart
Door Insulation

Door Insulation

by Whirlpool
Part Number AP3069998

Our Price
$62.41
Add to Cart

Putty Sealer

by Whirlpool
Part Number AP3071650

Our Price
$52.04
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3072564

Our Price
$28.98
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.67
Add to Cart

Epoxy Repair Kit (aluminum Tubing)

by Whirlpool
Part Number AP3078606

  • Not available
Vinyl Tape

Vinyl Tape

by Whirlpool
Part Number AP3078669

Our Price
$34.21
Add to Cart
Permagum Sealer

Permagum Sealer

by Whirlpool
Part Number AP3080365

Our Price
$29.82
Add to Cart
Alumilastic Cement

Alumilastic Cement

by Whirlpool
Part Number AP3103415

 (2)
Our Price
$26.58
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130529

Our Price
$30.12
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130530

Our Price
$36.03
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130531

Our Price
$36.79
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130532

  • Not available
Service Valve

Service Valve

by Whirlpool
Part Number AP3130533

Our Price
$39.17
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130534

Our Price
$28.87
Add to Cart
Insulation

Insulation

by Whirlpool
Part Number AP3131348

Our Price
$171.92
Add to Cart

Envelope

by Whirlpool
Part Number AP3132225

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Grease

Grease

by Whirlpool
Part Number AP3133334

Our Price
$29.19
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

 (4)
Our Price
$4.00
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

 (1)
Our Price
$3.94
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

 (2)
Our Price
$4.65
Add to Cart

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

 (7)
Our Price
$7.06
Add to Cart
Primer

Primer

by Whirlpool
Part Number AP3134815

Our Price
$22.53
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$12.10
Add to Cart
Porcelain Touch-Up Paint

Porcelain Touch-Up Paint

by Whirlpool
Part Number AP3134941

Our Price
$14.01
Add to Cart
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$84.80
Add to Cart

Torx KEY3

by Whirlpool
Part Number AP3136045

Our Price
$4.33
Add to Cart

Modular Im Svc 120V

by Whirlpool
Part Number AP4434485

  • Not available
