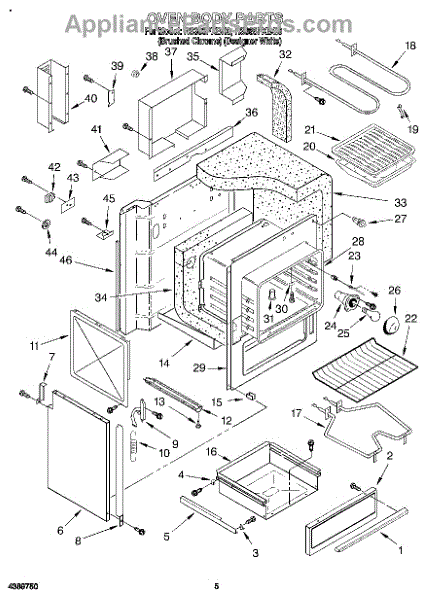

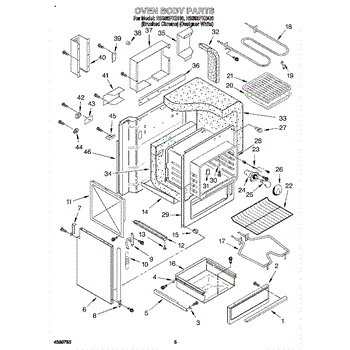

Parts for Whirlpool RS385PXBQ0: Oven Body Parts

Start New Search

30" Electric Slide-in Range Self-Clean Oven

Location on Diagram Part Description Price & Availability
1

Handle, Drawer (white)

by Whirlpool
Part Number AP2983499

  • Not available
1

Handle, Drawer (black)

by Whirlpool
Part Number AP2983668

  • Not available
1

Screw

by Whirlpool
Part Number AP3065368

  • Not available
2

Screw NO.10-32X17/22

by Whirlpool
Part Number AP2960755

  • Not available
2

Panel, Drawer (white)

by Whirlpool
Part Number AP2983502

  • Not available
2

Panel, Drawer (black)

by Whirlpool
Part Number AP2983677

  • Not available
3

Screw 1032

by Whirlpool
Part Number AP2962343

  • Not available
3
Yy-Block-F

Yy-Block-F

by Whirlpool
Part Number AP2962713

  • Not available
4

Block-Slid

by Whirlpool
Part Number AP2960895

  • Not available
4

Y-Screw 8-

by Whirlpool
Part Number AP2962279

  • Not available
5

Support-Dr

by Whirlpool
Part Number AP2962712

  • Not available
6

Panel, Bodyside (left Side)

by Whirlpool
Part Number AP2983507

  • Not available
6

Panel, Bodyside (right Side)

by Whirlpool
Part Number AP2983508

  • Not available
7

Filler, Side

by Whirlpool
Part Number AP2962740

  • Not available
7

Screw

by Whirlpool
Part Number AP2983687

  • Not available
8

Trim, Side (black Right Hand)

by Whirlpool
Part Number AP2983840

  • Not available
8

Trim, Side (black Left Hand)

by Whirlpool
Part Number AP2983841

  • Not available
8

Trim, Side (white Right Hand)

by Whirlpool
Part Number AP2983842

  • Not available
8

Trim, Side (white Left Hand)

by Whirlpool
Part Number AP2983843

  • Not available
9

Screw, 10-32 X 5/8

by Whirlpool
Part Number AP3002035

  • Not available
9
Hinge, Left Side

Hinge, Left Side

by Whirlpool
Part Number AP3082872

Our Price
$30.33
Add to Cart
9
Hinge, Right Side

Hinge, Right Side

by Whirlpool
Part Number AP3082873

Our Price
$24.71
Add to Cart
10

Spring, Door

by Whirlpool
Part Number AP2983300

  • Not available
11

Retainer, Side

by Whirlpool
Part Number AP2983588

  • Not available
11
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
12

Rail, Base (includes No. 13)

by Whirlpool
Part Number AP2983947

  • Not available
13
Foot-Level

Foot-Level

by Whirlpool
Part Number AP3881372

  • Not available
14

Retainer, Lower

by Whirlpool
Part Number AP2983520

  • Not available
15

Spacer-Exp

by Whirlpool
Part Number AP2962894

  • Not available
16

Drawer, Storage

by Whirlpool
Part Number AP2960855

  • Not available
17
Element, Bake

Element, Bake

by Whirlpool
Part Number AP2983523

Our Price
$81.54
Add to Cart
18
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
18
Broil Element

Broil Element

by Whirlpool
Part Number AP3104219

Our Price
$39.32
Add to Cart
19
Support-Br

Support-Br

by Whirlpool
Part Number AP2963065

Our Price
$2.80
Add to Cart
20
Broil Pan Set

Broil Pan Set

by Whirlpool
Part Number AP3837379

Our Price
$16.71
Add to Cart
21
Broil Pan Set

Broil Pan Set

by Whirlpool
Part Number AP3837379

Our Price
$16.71
Add to Cart
22
Rack

Rack

by Whirlpool
Part Number AP2962445

Our Price
$44.80
Add to Cart
23

Screw

by Whirlpool
Part Number AP3015891

  • Not available
23
Oven Temperature Sensor

Oven Temperature Sensor

by Whirlpool
Part Number AP3130719

 (5)
Our Price
$26.44
Add to Cart
24

Screw NO.10-32X17/22

by Whirlpool
Part Number AP2960755

  • Not available
24

Housing, Lite

by Whirlpool
Part Number AP2983528

  • Not available
25
Light Bulb
Sale

Light Bulb

by Whirlpool
Part Number AP3607217

 (2)
Our Price
$2.50
Add to Cart
26

Lens, Oven Lite

by Whirlpool
Part Number AP2983530

  • Not available
27

Switch, Door

by Whirlpool
Part Number AP2983965

  • Not available
28

Body, Oven

by Whirlpool
Part Number AP2983532

  • Not available
29

Frame, Front

by Whirlpool
Part Number AP2983533

  • Not available
30

Cover

by Whirlpool
Part Number AP2962533

  • Not available
30
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
31

Tube, Vent

by Whirlpool
Part Number AP2983535

  • Not available
32

Insulation

by Whirlpool
Part Number AP3104257

  • Not available
33

Insulation

by Whirlpool
Part Number AP3104258

  • Not available
34

Insulation, Oven

by Whirlpool
Part Number AP3077641

  • Not available
35

Shield, Wire

by Whirlpool
Part Number AP2983266

  • Not available
36

Shield, Wire

by Whirlpool
Part Number AP2983539

  • Not available
37

Shield, Upper

by Whirlpool
Part Number AP2983540

  • Not available
37

Screw

by Whirlpool
Part Number AP2983687

  • Not available
38

Bushing, Snap

by Whirlpool
Part Number AP2983541

  • Not available
39

Plate, Flue Cover

by Whirlpool
Part Number AP2983542

  • Not available
39

Screw

by Whirlpool
Part Number AP2983687

  • Not available
40

Cover, Upper Wire

by Whirlpool
Part Number AP2983543

  • Not available
40
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
41

Cover, Lite Wire

by Whirlpool
Part Number AP2983544

  • Not available
41
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
42

Bracket, Cord

by Whirlpool
Part Number AP2983825

  • Not available
43

Screw

by Whirlpool
Part Number AP2962178

  • Not available
43

Shield, Disconnect

by Whirlpool
Part Number AP2983546

  • Not available
44

Washer

by Whirlpool
Part Number AP2955642

  • Not available
44

Screw NO.10-32X17/22

by Whirlpool
Part Number AP2960755

  • Not available
45

Mounting Plate, Service

by Whirlpool
Part Number AP2962721

  • Not available
45
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
46

Chain

by Whirlpool
Part Number AP2962801

  • Not available
46

Back, Main

by Whirlpool
Part Number AP2983549

  • Not available

Chain

by Whirlpool
Part Number AP2962801

  • Not available
