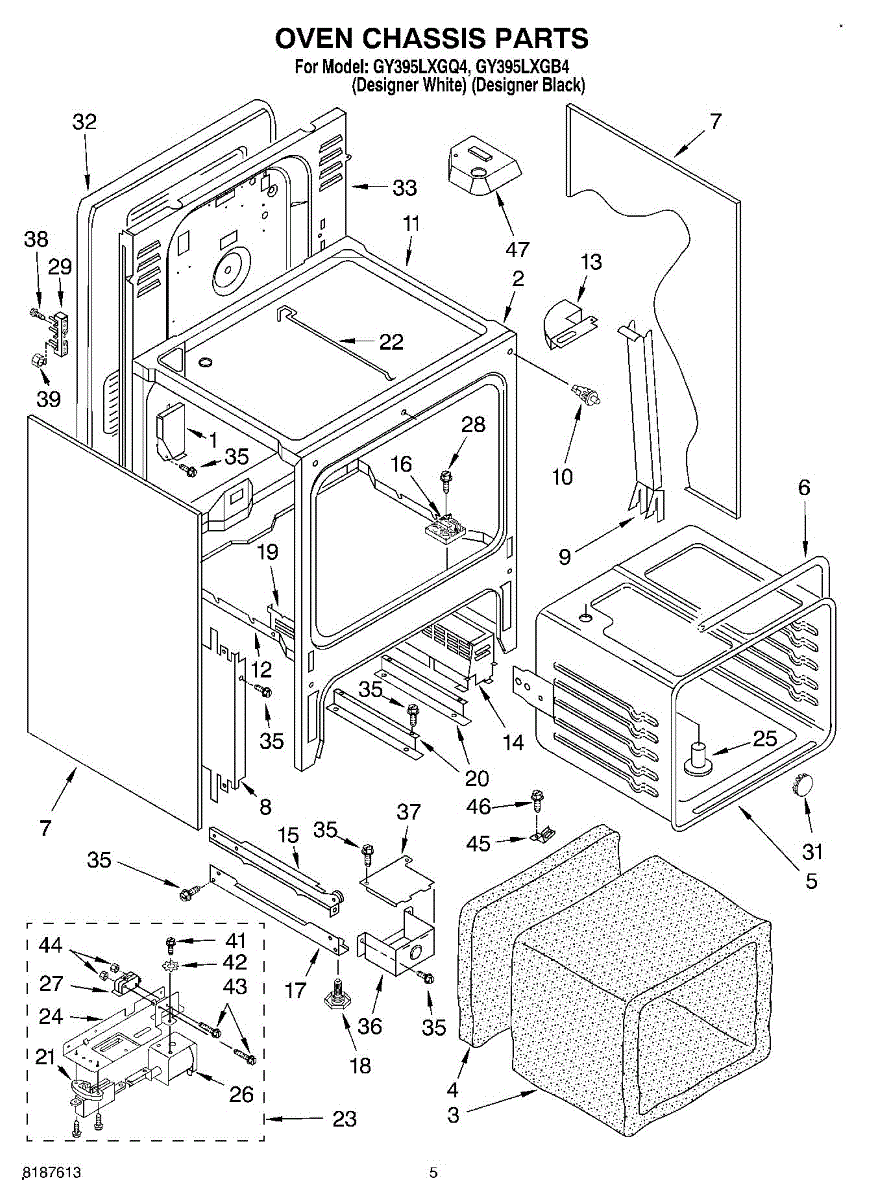

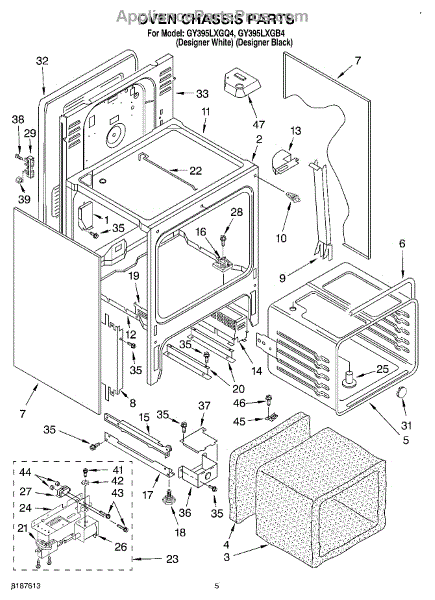

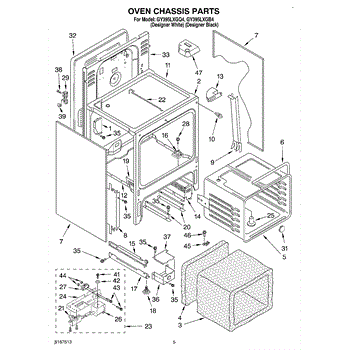

04-Oven Chassis Parts for Whirlpool GY395LXGQ4

Start New Search

Freestanding, Electric

Location on Diagram Part Description Price & Availability
1

Vent Box, Oven

by Whirlpool
Part Number AP3008065

  • Not available
2

Front Chassis

by Whirlpool
Part Number AP3131454

  • Not available
3

Insulation, Rear

by Whirlpool
Part Number AP3008575

  • Not available
4

Back Insulation

by Whirlpool
Part Number AP3008851

  • Not available
5

Oven Liner

by Whirlpool
Part Number AP2994847

  • Not available
6
Oven Door Gasket

Oven Door Gasket

by Whirlpool
Part Number AP3133059

  • Not available
7

Oven Side Panel (white)

by Whirlpool
Part Number AP3873328

Our Price
$29.98
Add to Cart
7
Panel. Oven Side

Panel. Oven Side

by Whirlpool
Part Number AP3873329

Our Price
$48.40
Add to Cart
8

Insulation Shield

by Whirlpool
Part Number AP2926620

  • Not available
9

Fan Duct, Side

by Whirlpool
Part Number AP3132828

  • Not available
10
Door Switch

Door Switch

by Whirlpool
Part Number AP3008355

Our Price
$21.39
Add to Cart
11

Burner Box

by Whirlpool
Part Number AP3008070

  • Not available
12

Retainer

by Whirlpool
Part Number AP2926623

  • Not available
13

Top Duct

by Whirlpool
Part Number AP2994396

  • Not available
14

Fan Support

by Whirlpool
Part Number AP2994397

  • Not available
15

Drawer Rail, Left Side

by Whirlpool
Part Number AP3008595

  • Not available
15
Drawer Rail, Right Side

Drawer Rail, Right Side

by Whirlpool
Part Number AP3132829

Our Price
$25.56
Add to Cart
16
Cooling Fan Motor Assembly.

Cooling Fan Motor Assembly.

by Whirlpool
Part Number AP2994399

Our Price
$143.96
Add to Cart
17

Bottom Rail

by Whirlpool
Part Number AP2926625

  • Not available
18
Leveling Leg

Leveling Leg

by Whirlpool
Part Number AP3967935

Our Price
$3.65
Add to Cart
19
Hinge Receiver

Hinge Receiver

by Whirlpool
Part Number AP3083979

  • Not available
20

Support Rail Pan

by Whirlpool
Part Number AP3008602

  • Not available
21
Door Lock/solenoid Assembly

Door Lock/solenoid Assembly

by Whirlpool
Part Number AP3130716

  • Not available
22

Lock Rod

by Whirlpool
Part Number AP2926672

  • Not available
23
Door Lock/solenoid Assembly

Door Lock/solenoid Assembly

by Whirlpool
Part Number AP3130716

  • Not available
24

Lock Bracket

by Whirlpool
Part Number AP2926665

  • Not available
25

Vent, Tube

by Whirlpool
Part Number AP3178812

  • Not available
26
Door Latch Solenoid

Door Latch Solenoid

by Whirlpool
Part Number AP3007999

Our Price
$77.10
Add to Cart
27
Switch, Interlock

Switch, Interlock

by Whirlpool
Part Number AP2926721

Our Price
$24.85
Add to Cart
28

Screw

by Whirlpool
Part Number AP3066839

  • Not available
29
Terminal Block

Terminal Block

by Whirlpool
Part Number AP3841238

Our Price
$10.85
Add to Cart
31

Plug Button (13.0 Mm)

by Whirlpool
Part Number AP2995385

  • Not available
32
Rear Cover Panel

Rear Cover Panel

by Whirlpool
Part Number AP3008128

  • Not available
33

Chassis Panel, Rear

by Whirlpool
Part Number AP2995492

  • Not available
35
Screw

Screw

by Whirlpool
Part Number AP3039697

Our Price
$1.93
Add to Cart
36

Terminal Box

by Whirlpool
Part Number AP2995018

  • Not available
37

Terminal Box Cover

by Whirlpool
Part Number AP3132961

  • Not available
38
Screw

Screw

by Whirlpool
Part Number AP4043568

Our Price
$4.11
Add to Cart
39
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3085249

Our Price
$1.93
Add to Cart
41

Screw

by Whirlpool
Part Number AP3066987

  • Not available
42

Washer

by Whirlpool
Part Number AP3066988

  • Not available
43

Screw

by Whirlpool
Part Number AP3066749

  • Not available
44

Nut, Vent Side

by Whirlpool
Part Number AP3071070

  • Not available
45

Clip, Ground Wire

by Whirlpool
Part Number AP3074478

Our Price
$4.29
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
45

Strap, Ground

by Whirlpool
Part Number AP3132832

  • Not available
46
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.35
Add to Cart
47

Balance Block

by Whirlpool
Part Number AP3083827

  • Not available
