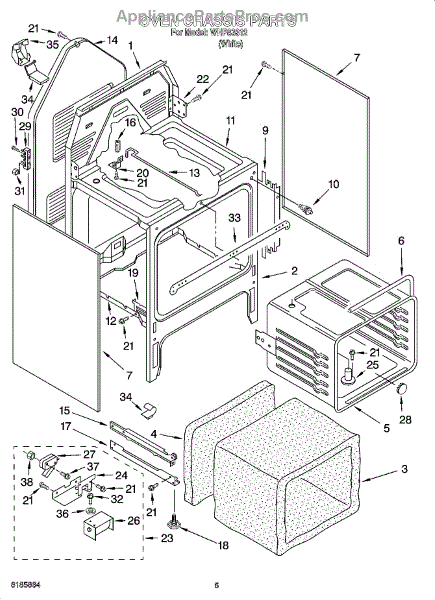

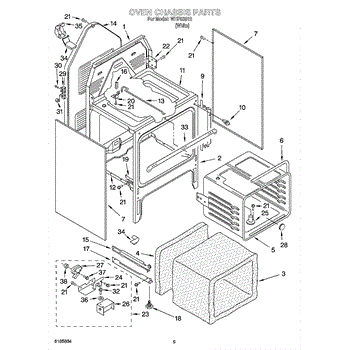

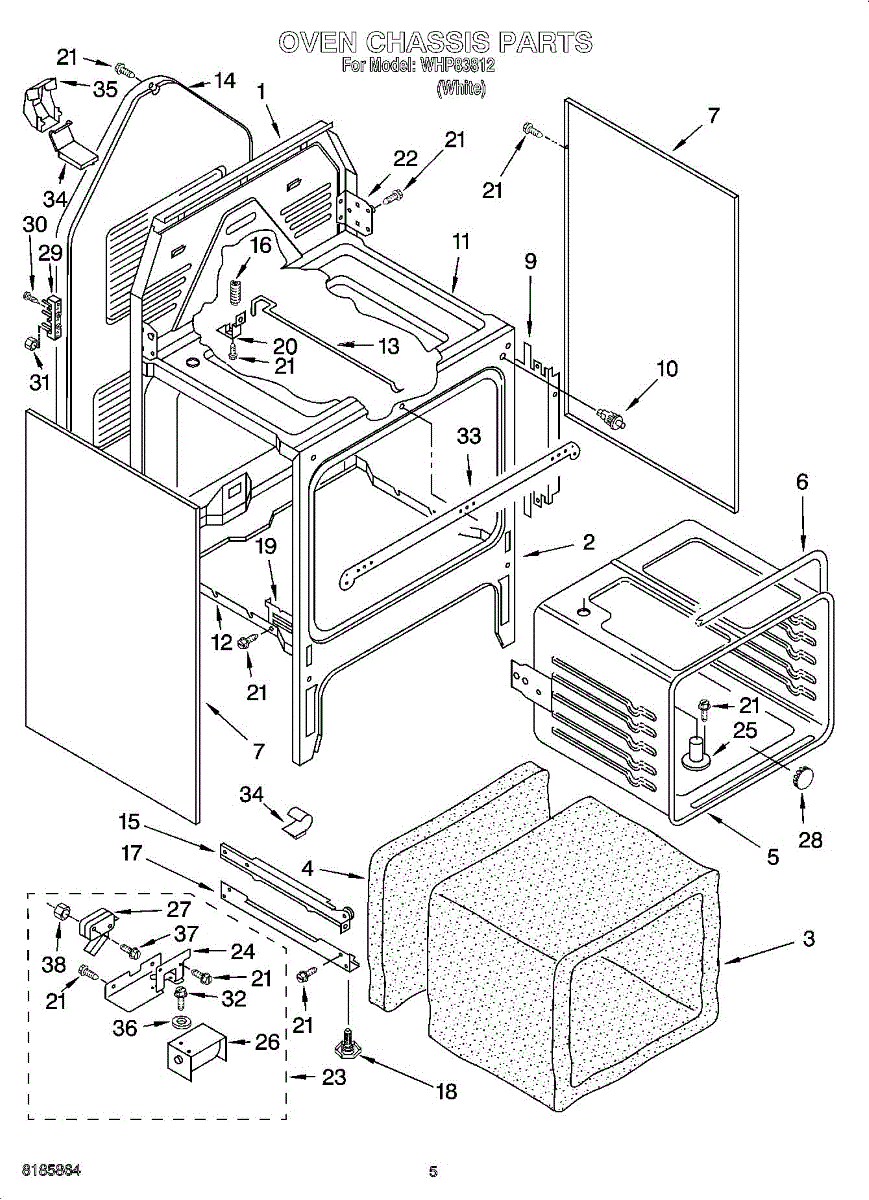

Parts for Whirlpool WHP83812: Oven Chassis Parts

Start New Search

30" Electric Range Ceran Cooktop Self Clean

Location on Diagram Part Description Price & Availability
1

Cover-Rear

by Whirlpool
Part Number AP3138605

  • Not available
2

Front Chassis

by Whirlpool
Part Number AP3131454

  • Not available
3

Insulation, Rear

by Whirlpool
Part Number AP3008575

  • Not available
4

Back Insulation

by Whirlpool
Part Number AP3008851

  • Not available
5

Oven Liner

by Whirlpool
Part Number AP2994847

  • Not available
6
Oven Door Gasket

Oven Door Gasket

by Whirlpool
Part Number AP3133059

  • Not available
7

Oven Side Panel (white)

by Whirlpool
Part Number AP3873328

Our Price
$24.91
Add to Cart
9

Insulation Shield

by Whirlpool
Part Number AP2926620

  • Not available
10
Door Switch

Door Switch

by Whirlpool
Part Number AP3008355

Our Price
$22.34
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
11

Burner Box

by Whirlpool
Part Number AP2926622

  • Not available
12

Retainer

by Whirlpool
Part Number AP2926623

  • Not available
13

Lock Rod

by Whirlpool
Part Number AP2926672

  • Not available
14

Panel, Rear

by Whirlpool
Part Number AP2995046

  • Not available
15

Drawer Rail, Left Side

by Whirlpool
Part Number AP3008595

  • Not available
15
Drawer Rail, Right Side

Drawer Rail, Right Side

by Whirlpool
Part Number AP3132829

Our Price
$26.16
Add to Cart
16

Spring, Door Lock

by Whirlpool
Part Number AP2926671

  • Not available
17

Bottom Rail

by Whirlpool
Part Number AP2926625

  • Not available
18
Leveling Leg

Leveling Leg

by Whirlpool
Part Number AP3967935

Our Price
$3.81
Add to Cart
19
Hinge Receiver

Hinge Receiver

by Whirlpool
Part Number AP3083979

  • Not available
20

Bracket, Spring

by Whirlpool
Part Number AP2926670

  • Not available
21
Screw

Screw

by Whirlpool
Part Number AP3039697

Our Price
$1.97
Add to Cart
22

Hinge, Cktp.-Left

by Whirlpool
Part Number AP2926629

  • Not available
22

Hinge, Cktp.-Right

by Whirlpool
Part Number AP3054798

  • Not available
23
Solenoid

Solenoid

by Whirlpool
Part Number AP4379824

  • Not available
24

Lock Bracket

by Whirlpool
Part Number AP2926665

  • Not available
25

Vent, Tube

by Whirlpool
Part Number AP3178812

  • Not available
26

Solenoid,

by Whirlpool
Part Number AP2994940

  • Not available
27
Switch, Interlock

Switch, Interlock

by Whirlpool
Part Number AP2926721

Our Price
$25.38
Add to Cart
28

Plug Button (13.0 Mm)

by Whirlpool
Part Number AP2995385

  • Not available
29
Terminal Block

Terminal Block

by Whirlpool
Part Number AP3841238

Our Price
$10.80
Add to Cart
30
Screw

Screw

by Whirlpool
Part Number AP4043568

Our Price
$4.29
Add to Cart
31
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3085249

Our Price
$1.93
Add to Cart
32

Screw

by Whirlpool
Part Number AP3066987

  • Not available
33

Guard, Wire

by Whirlpool
Part Number AP2995364

Our Price
$17.84
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
34

Cover, Vent

by Whirlpool
Part Number AP2995206

  • Not available
35

Cover, Back

by Whirlpool
Part Number AP3008387

  • Not available
36

Washer

by Whirlpool
Part Number AP3066988

  • Not available
37

Screw

by Whirlpool
Part Number AP3066749

  • Not available
38

Nut, Vent Side

by Whirlpool
Part Number AP3071070

  • Not available
