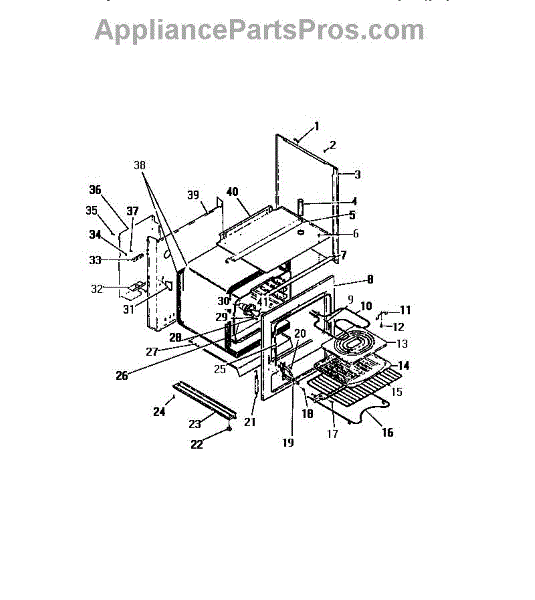

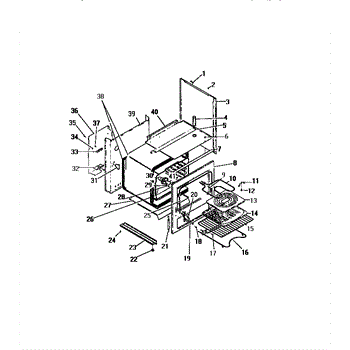

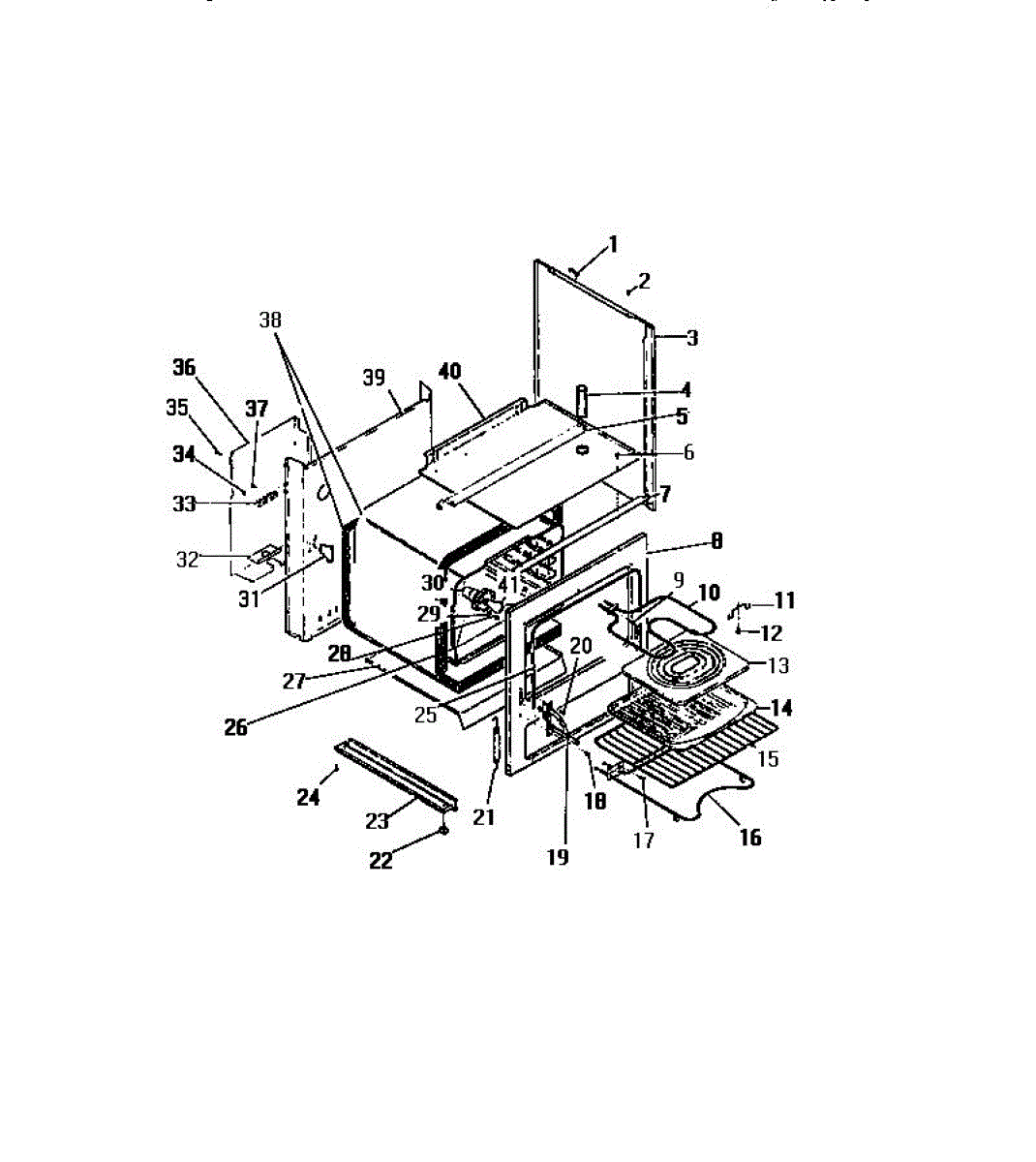

Parts for Frigidaire R21CL0: Oven Liner, Elements, Side Panels Parts

Start New Search

FRG(V1) / Free Standing Electric Range

Location on Diagram Part Description Price & Availability
1

Grommet-Cooktop, Rear

by Frigidaire
Part Number AP2159417

  • Not available
2

Grommet-Cooktop, Front

by Frigidaire
Part Number AP2156772

  • Not available
3

Panel-Side, Almond

by Frigidaire
Part Number AP2159557

  • Not available
4

Tube-Vent

by Frigidaire
Part Number AP2159058

  • Not available
5

Shield-Switch

by Frigidaire
Part Number AP2159552

  • Not available
5A

Shield-Switch

by Frigidaire
Part Number AP2159551

  • Not available
6

Screws

by Frigidaire
Part Number AP2156731

  • Not available
7

Support-Control Panel

by Frigidaire
Part Number AP2159562

  • Not available
7A

Support-Control Panel

by Frigidaire
Part Number AP2158287

  • Not available
8

Frame-Front

by Frigidaire
Part Number AP2159598

  • Not available
8A

Panel-Exterior Oven Drawer, Almond

by Frigidaire
Part Number AP2159597

  • Not available
9

Screw

by Frigidaire
Part Number AP2156777

  • Not available
10

Element-Broil

by Frigidaire
Part Number AP2136261

  • Not available
11

Support

by Frigidaire
Part Number AP2158257

  • Not available
12

Screw

by Frigidaire
Part Number AP2156777

  • Not available
13

Grid-Broiler Pan

by Frigidaire
Part Number AP2156804

  • Not available
14

Pan-Broiler

by Frigidaire
Part Number AP2158278

  • Not available
15

Shelf-Rack

by Frigidaire
Part Number AP2159451

  • Not available
15A

Shelf-Rack

by Frigidaire
Part Number AP2158250

  • Not available
16
Bake Element

Bake Element

by Frigidaire
Part Number AP2136260

  • Not available
16A

Bake Element

by Frigidaire
Part Number AP2136839

  • Not available
17

Screw

by Frigidaire
Part Number AP2156777

  • Not available
18

Screw

by Frigidaire
Part Number AP2156777

  • Not available
19

Hinge-Oven Door, Right Handle

by Frigidaire
Part Number AP2156775

  • Not available
19A

Hinge-Oven Door, Left

by Frigidaire
Part Number AP2156776

  • Not available
20

Screw

by Frigidaire
Part Number AP2156777

  • Not available
21
Spring, Oven Door

Spring, Oven Door

by Frigidaire
Part Number AP2136840

Our Price
$18.46
Add to Cart
22

Foot

by Frigidaire
Part Number AP2156785

  • Not available
23

Rail-Base

by Frigidaire
Part Number AP2158306

  • Not available
24

Screws

by Frigidaire
Part Number AP2156731

  • Not available
25

Seal-Oven Door

by Frigidaire
Part Number AP2159454

  • Not available
25A

Seal-Oven Door

by Frigidaire
Part Number AP2158253

  • Not available
26

Panel-Oven Lining, Right Side

by Frigidaire
Part Number AP2159515

  • Not available
26A

Panel-Oven Lining, Left Side

by Frigidaire
Part Number AP2159516

  • Not available
26B

Panel-Oven Lining, Top

by Frigidaire
Part Number AP2159524

  • Not available
26C

Panel-Oven Lining, Back

by Frigidaire
Part Number AP2159510

  • Not available
26D

Panel-Oven Lining, Bottom

by Frigidaire
Part Number AP2159536

  • Not available
27

Retainer-Insulation

by Frigidaire
Part Number AP2159527

  • Not available
27A

Retainer-Insulation

by Frigidaire
Part Number AP2158279

  • Not available
31

Support-Rear

by Frigidaire
Part Number AP2156786

  • Not available
32

Support-Conduit

by Frigidaire
Part Number AP2158286

  • Not available
33
Terminal Block Kit

Terminal Block Kit

by Frigidaire
Part Number AP2584987

Our Price
$3.24
Add to Cart
34

Nuts

by Frigidaire
Part Number AP2158242

  • Not available
35

Screws

by Frigidaire
Part Number AP2156731

  • Not available
36

Cover-Access

by Frigidaire
Part Number AP2159490

  • Not available
37

Screw

by Frigidaire
Part Number AP2156781

  • Not available
39

Panel-Back

by Frigidaire
Part Number AP2159481

  • Not available
39A

Panel-Back

by Frigidaire
Part Number AP2158784

  • Not available
40

Panel-Burner Box Bottom

by Frigidaire
Part Number AP2159485

  • Not available
40A

Panel-Burner Box Bottom

by Frigidaire
Part Number AP2159484

  • Not available
