Parts for Whirlpool GMC305PDB1: Oven, Literature Parts

Start New Search

Electric Oven M/w Combo

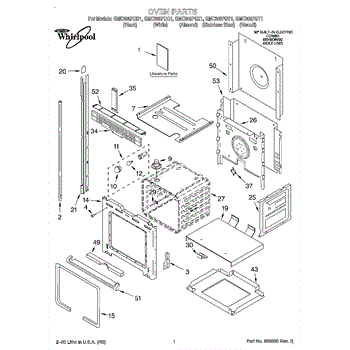

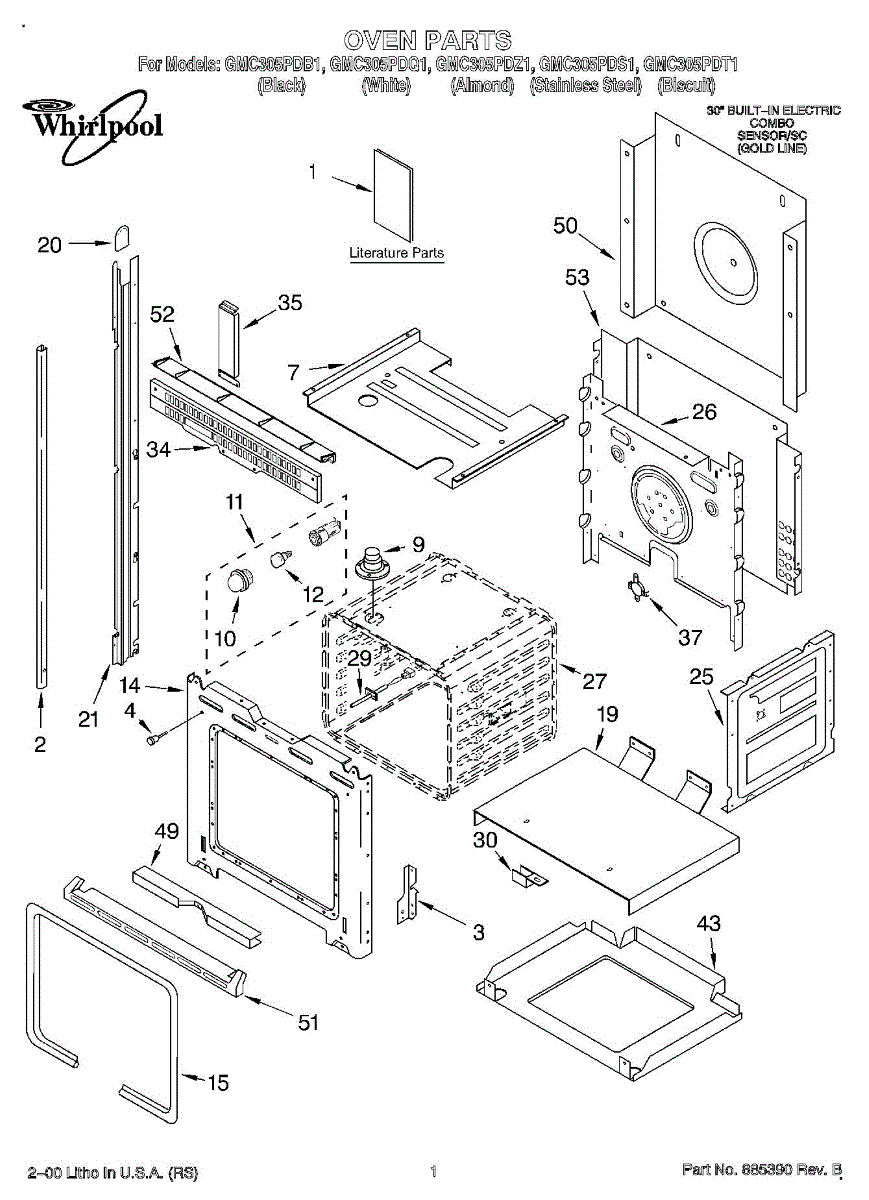

Location on Diagram Part Description Price & Availability
1

Cooking Guide (label)

by Whirlpool
Part Number AP3055335

  • Not available
1

Use & Care Guide (oven)

by Whirlpool
Part Number AP3077834

  • Not available
1

This Document Is Not Available

by Whirlpool
Part Number AP3132732

  • Not available
2
Trim, Side (rh Black)

Trim, Side (rh Black)

by Whirlpool
Part Number AP2929224

  • Not available
2
Trim, Side (rh White)

Trim, Side (rh White)

by Whirlpool
Part Number AP2929225

  • Not available
2
Trim, Side (lh Black)

Trim, Side (lh Black)

by Whirlpool
Part Number AP2929226

  • Not available
2

Trim, Side (rh Almond)

by Whirlpool
Part Number AP2929421

  • Not available
2

Trim, Side (lh Almond)

by Whirlpool
Part Number AP2929422

  • Not available
2

Trim, Side (rh Biscuit)

by Whirlpool
Part Number AP3030427

  • Not available
2

Trim, Side (lh Biscuit Screw)

by Whirlpool
Part Number AP3044373

  • Not available
2
Trim, Side (lh White Screw)

Trim, Side (lh White Screw)

by Whirlpool
Part Number AP3045846

  • Not available
2
Side Trim Screw

Side Trim Screw

by Whirlpool
Part Number AP3136113

Our Price
$3.68
Add to Cart
3
Hinge Receiver

Hinge Receiver

by Whirlpool
Part Number AP3119850

Our Price
$42.63
Add to Cart
4
Door Bumper

Door Bumper

by Whirlpool
Part Number AP2929165

Our Price
$3.66
Add to Cart
7
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
7

Top, Oven

by Whirlpool
Part Number AP3865918

Our Price
$47.28
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
9

Vent Tube

by Whirlpool
Part Number AP3008978

Our Price
$24.59
Add to Cart
9
Screw

Screw

by Whirlpool
Part Number AP3009552

Our Price
$1.97
Add to Cart
10
Light Lens

Light Lens

by Whirlpool
Part Number AP3030506

  • Not available
11
Rear Oven Light Assy

Rear Oven Light Assy

by Whirlpool
Part Number AP3892433

  • Not available
12
Light Bulb

Light Bulb

by Whirlpool
Part Number AP2924591

Our Price
$21.42
Add to Cart
14
Screw

Screw

by Whirlpool
Part Number AP3047318

Our Price
$3.66
Add to Cart
14
Frame, Front

Frame, Front

by Whirlpool
Part Number AP3673245

  • Not available
15
Gasket, Door

Gasket, Door

by Whirlpool
Part Number AP3892420

 (1)
Our Price
$37.29
Add to Cart
19

Support, Insulation

by Whirlpool
Part Number AP3009023

Our Price
$28.06
Add to Cart
19
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
20
Spacer Cap

Spacer Cap

by Whirlpool
Part Number AP3008980

Our Price
$3.66
Add to Cart
21
Screw

Screw

by Whirlpool
Part Number AP3009552

Our Price
$1.97
Add to Cart
21
Side Rail Grommet

Side Rail Grommet

by Whirlpool
Part Number AP3079472

Our Price
$3.20
Add to Cart
21
Rail-Mounting

Rail-Mounting

by Whirlpool
Part Number AP3119533

Our Price
$58.57
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
21
Rail-Mounting

Rail-Mounting

by Whirlpool
Part Number AP3119534

Our Price
$51.75
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
25
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
25
Chassis Side

Chassis Side

by Whirlpool
Part Number AP3119577

  • Not available
26
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
26

Chassis Back

by Whirlpool
Part Number AP3131320

  • Not available
29
Oven Sensor

Oven Sensor

by Whirlpool
Part Number AP3008972

 (2)
Our Price
$63.07
Add to Cart
29
Screw

Screw

by Whirlpool
Part Number AP3009552

Our Price
$1.97
Add to Cart
30
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
30
Support Bracket

Support Bracket

by Whirlpool
Part Number AP3132741

Our Price
$25.44
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
34
Screw

Screw

by Whirlpool
Part Number AP3030976

Our Price
$1.97
Add to Cart
34
Vent-Oven

Vent-Oven

by Whirlpool
Part Number AP3778693

Our Price
$46.15
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
35

Ext Filler

by Whirlpool
Part Number AP3132717

Our Price
$43.83
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
37
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
37
Thermal Overload

Thermal Overload

by Whirlpool
Part Number AP3885687

 (16)
Our Price
$34.64
Add to Cart
43
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
43

Bottm-Main

by Whirlpool
Part Number AP3759923

Our Price
$65.32
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
49
Screw

Screw

by Whirlpool
Part Number AP3009552

Our Price
$1.97
Add to Cart
49
Gasket Retainer

Gasket Retainer

by Whirlpool
Part Number AP3009663

Our Price
$4.29
Add to Cart
50
Back Cover

Back Cover

by Whirlpool
Part Number AP3008975

Our Price
$37.28
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
50
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart
51
Trim, Bottom (black)

Trim, Bottom (black)

by Whirlpool
Part Number AP3009510

Our Price
$42.99
Add to Cart
51

Trim, Bottom (biscuit)

by Whirlpool
Part Number AP3009711

  • Not available
51
Trim, Bottom (white)

Trim, Bottom (white)

by Whirlpool
Part Number AP3030275

Our Price
$60.93
Add to Cart
51

Trim, Bottom (almond)

by Whirlpool
Part Number AP3133123

  • Not available
52
Vent-Cntrl

Vent-Cntrl

by Whirlpool
Part Number AP3599513

  • Not available
53

Chassis, Back

by Whirlpool
Part Number AP3010007

Our Price
$37.20
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
53
Wrap Insulation

Wrap Insulation

by Whirlpool
Part Number AP3047229

Our Price
$50.97
Add to Cart
53

Back Insulation

by Whirlpool
Part Number AP3077989

Our Price
$46.78
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Wire Harness Clip

Wire Harness Clip

by Whirlpool
Part Number AP2914056

Our Price
$3.25
Add to Cart
Wrap Insulation

Wrap Insulation

by Whirlpool
Part Number AP3047229

Our Price
$50.97
Add to Cart
Filler Kit (bl)

Filler Kit (bl)

by Whirlpool
Part Number AP3047323

Our Price
$279.21
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Filler Kit (wh)

by Whirlpool
Part Number AP3047324

Our Price
$274.14
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Filler Kit (al)

by Whirlpool
Part Number AP3047325

  • Not available

Combo Conduit

by Whirlpool
Part Number AP3047331

Our Price
$62.02
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Door Removal Pin Kit

Door Removal Pin Kit

by Whirlpool
Part Number AP3066060

Our Price
$4.29
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.71
Add to Cart

Harness, Main

by Whirlpool
Part Number AP3077891

  • Not available

Back Insulation

by Whirlpool
Part Number AP3077989

Our Price
$46.78
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Ground Wire

by Whirlpool
Part Number AP3078004

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Ground Screw

by Whirlpool
Part Number AP3080529

Our Price
$3.68
Add to Cart
Screw

Screw

by Whirlpool
Part Number AP3080566

Our Price
$3.67
Add to Cart

Harness, Wire (latch, Lower)

by Whirlpool
Part Number AP3080684

  • Not available
Screw

Screw

by Whirlpool
Part Number AP3084280

Our Price
$4.30
Add to Cart

Harness Spacer

by Whirlpool
Part Number AP3133262

Our Price
$3.66
Add to Cart

Wire

by Whirlpool
Part Number AP3134025

  • Not available

Wire

by Whirlpool
Part Number AP3134026

  • Not available

Wire

by Whirlpool
Part Number AP3134027

  • Not available

Wire

by Whirlpool
Part Number AP3134028

  • Not available

Wire

by Whirlpool
Part Number AP3134029

  • Not available

Wire

by Whirlpool
Part Number AP3134031

  • Not available

Wire

by Whirlpool
Part Number AP3134033

Our Price
$198.34
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

 (4)
Our Price
$4.00
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

 (1)
Our Price
$4.65
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134049

Our Price
$17.03
Add to Cart
Silicone Adhesive Sealant

Silicone Adhesive Sealant

by Whirlpool
Part Number AP3134060

Our Price
$29.47
Add to Cart

Adhesive

by Whirlpool
Part Number AP3134061

  • Not available
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134080

Our Price
$6.71
Add to Cart

Wire

by Whirlpool
Part Number AP3134621

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$7.08
Add to Cart
Wire

Wire

by Whirlpool
Part Number AP3138337

  • Not available

Wire

by Whirlpool
Part Number AP3138338

  • Not available

Wire

by Whirlpool
Part Number AP3138339

  • Not available

Wire

by Whirlpool
Part Number AP3138340

Our Price
$78.11
Add to Cart

Wire

by Whirlpool
Part Number AP3138341

  • Not available
Wire Tie

Wire Tie

by Whirlpool
Part Number AP4588389

Our Price
$3.47
Add to Cart
