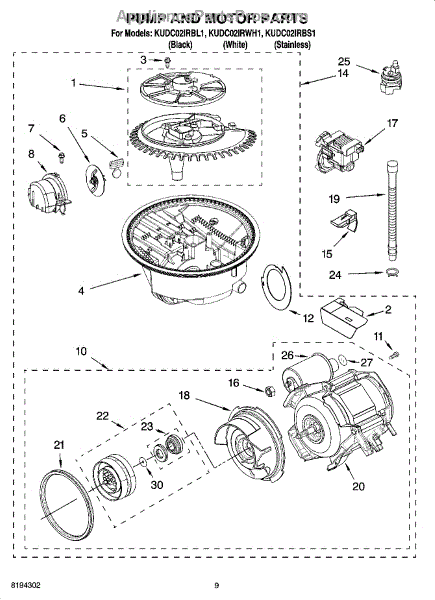

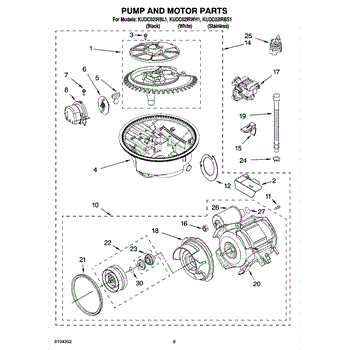

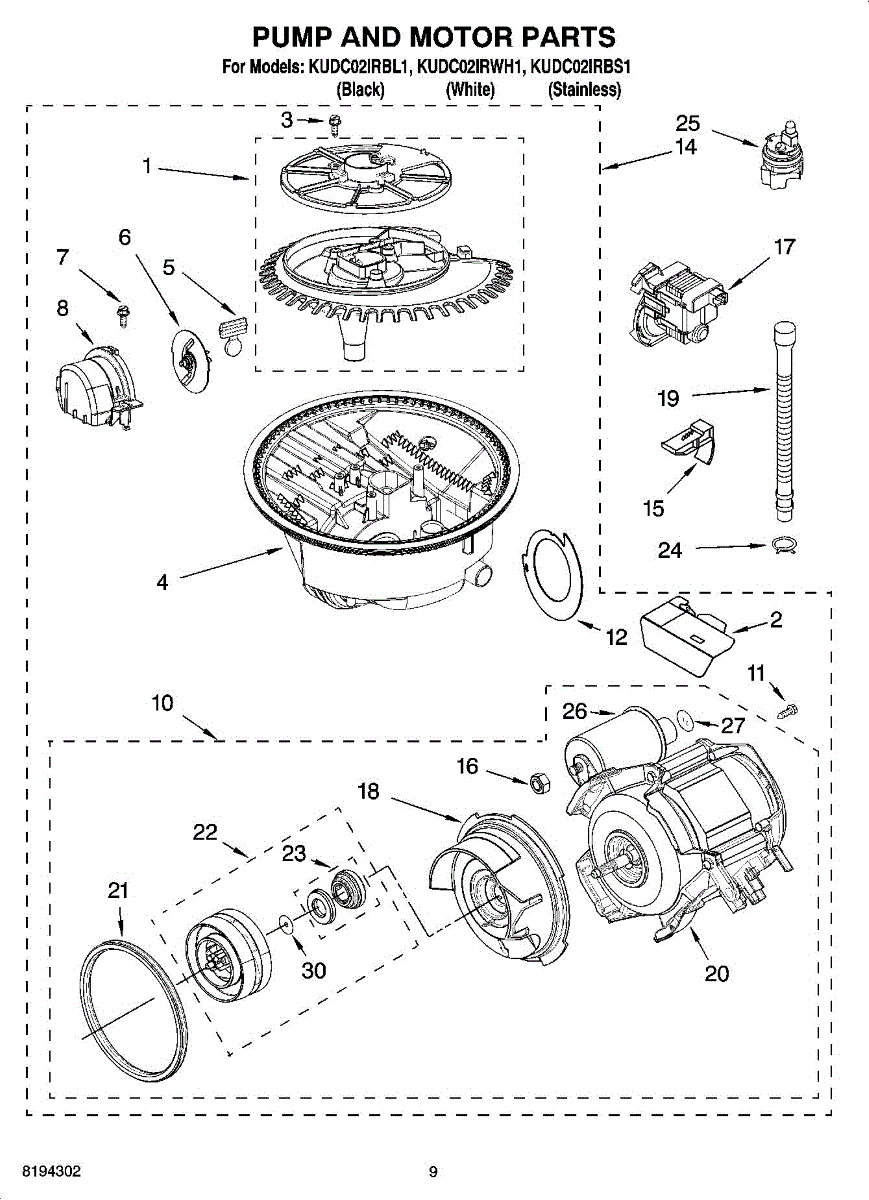

Parts for KitchenAid KUDC02IRBL1: Pump and Motor Parts

Start New Search

Undercounter Dishwasher

Location on Diagram Part Description Price & Availability
1
Accumulator Assembly

Accumulator Assembly

by Whirlpool
Part Number AP3609773

Our Price
$52.40
Add to Cart
2

Shield

by Whirlpool
Part Number AP3707109

Our Price
$46.72
Add to Cart
3
Screw

Screw

by Whirlpool
Part Number AP4982173

  • Not available
4
Sump Housing

Sump Housing

by Whirlpool
Part Number AP3866228

Our Price
$81.88
Add to Cart
5
Check Valve

Check Valve

by Whirlpool
Part Number AP3152971

 (10)
Our Price
$17.02
Add to Cart
6
Chopper Assembly

Chopper Assembly

by Whirlpool
Part Number AP3039186

 (40)
Our Price
$17.79
Add to Cart
7
Screw

Screw

by Whirlpool
Part Number AP3010928

 (2)
Our Price
$2.45
Add to Cart
8
Protector

Protector

by Whirlpool
Part Number AP3851156

 (2)
Our Price
$34.50
Add to Cart
10
Asm-Motor/impeller

Asm-Motor/impeller

by Whirlpool
Part Number AP5959487

 (25)
Our Price
$120.03
Add to Cart
11

Screw

by Whirlpool
Part Number AP3039190

Our Price
$3.91
Add to Cart
12
Screen, Pump Sump

Screen, Pump Sump

by Whirlpool
Part Number AP3039191

Our Price
$28.06
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
14
Asm-Sump/motor

Asm-Sump/motor

by Whirlpool
Part Number AP5962283

 (16)
Our Price
$156.26
Add to Cart
15
Tab-Sump

Tab-Sump

by Whirlpool
Part Number AP4701275

Our Price
$24.94
Add to Cart
16

Nut

by Whirlpool
Part Number AP3919146

Our Price
$27.11
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
17
Drain Pump

Drain Pump

by Whirlpool
Part Number AP5691922

 (14)
Our Price
$63.10
Add to Cart
18
Volute

Volute

by Whirlpool
Part Number AP4502038

 (1)
Our Price
$22.93
Add to Cart
19
Drain Hose

Drain Hose

by Whirlpool
Part Number AP4399659

 (2)
Our Price
$8.55
Add to Cart
20
Asm-Motor/impeller

Asm-Motor/impeller

by Whirlpool
Part Number AP5959487

 (25)
Our Price
$120.03
Add to Cart
21
Volute

Volute

by Whirlpool
Part Number AP4502038

 (1)
Our Price
$22.93
Add to Cart
22
Impeller and Seal Kit

Impeller and Seal Kit

by Whirlpool
Part Number AP3738238

 (9)
Our Price
$19.28
Add to Cart
23
Impeller and Seal Kit

Impeller and Seal Kit

by Whirlpool
Part Number AP3738238

 (9)
Our Price
$19.28
Add to Cart
24
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

 (1)
Our Price
$4.38
Add to Cart
25
Sensor

Sensor

by Whirlpool
Part Number AP4410881

  • Not available
26
Capacitor

Capacitor

by Whirlpool
Part Number AP4695694

 (1)
Our Price
$46.03
Add to Cart
27

Shield, Capacitor

by Whirlpool
Part Number AP3178889

Our Price
$4.47
Add to Cart
30
Washer

Washer

by Whirlpool
Part Number AP3179654

Our Price
$4.49
Add to Cart
