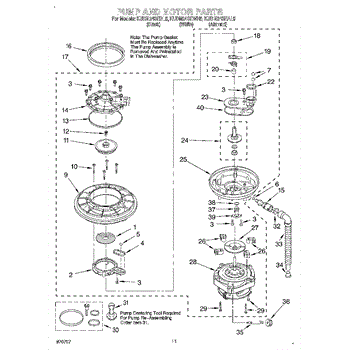

Parts for KitchenAid KUDM24SEBL5: Pump and Motor Parts

Start New Search

Undercounter Dishwasher

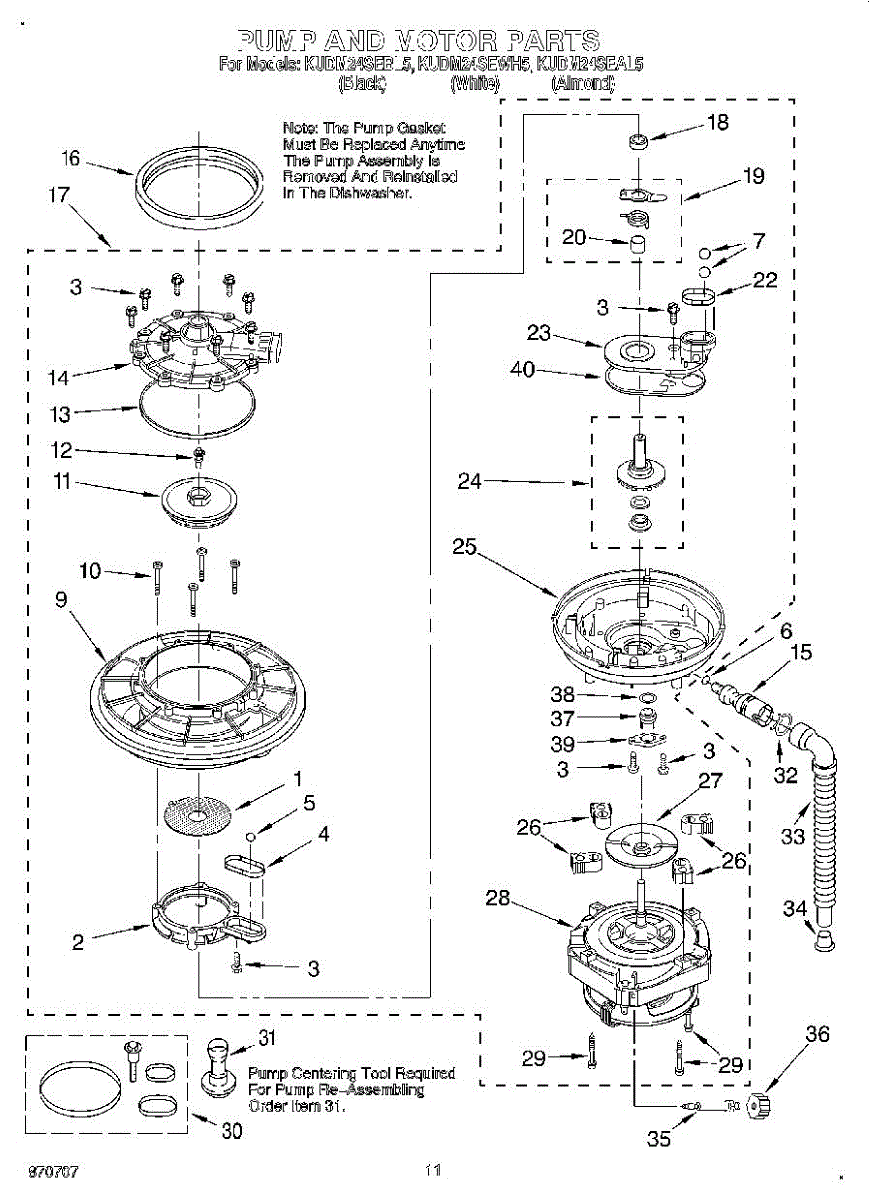

Location on Diagram Part Description Price & Availability
1
Perforated Plate

Perforated Plate

by Whirlpool
Part Number AP3115082

Our Price
$25.03
Add to Cart
2

Inlet Base

by Whirlpool
Part Number AP3115083

Our Price
$27.12
Add to Cart
3
Screw

Screw

by Whirlpool
Part Number AP3010928

Our Price
$2.35
Add to Cart
4
Inlet Base Seal

Inlet Base Seal

by Whirlpool
Part Number AP2904404

Our Price
$4.10
Add to Cart
5
Check Ball

Check Ball

by Whirlpool
Part Number AP2904405

Our Price
$3.66
Add to Cart
6
O-Ring

O-Ring

by Whirlpool
Part Number AP2906713

Our Price
$4.12
Add to Cart
7
Ball, Check

Ball, Check

by Whirlpool
Part Number AP3044166

Our Price
$3.54
Add to Cart
9
Pump Filter Housing

Pump Filter Housing

by Whirlpool
Part Number AP3085112

Our Price
$46.19
Add to Cart
10
Screw

Screw

by Whirlpool
Part Number AP3044435

Our Price
$1.93
Add to Cart
11
Drain & Wash Impeller Kit

Drain & Wash Impeller Kit

by Whirlpool
Part Number AP3115180

 (3)
Our Price
$30.56
Add to Cart
12
Screw & Seal

Screw & Seal

by Whirlpool
Part Number AP3010659

Our Price
$1.93
Add to Cart
13
Pump Cover Seal

Pump Cover Seal

by Whirlpool
Part Number AP2904413

Our Price
$21.86
Add to Cart
14
Outlet, Pump

Outlet, Pump

by Whirlpool
Part Number AP3964091

Our Price
$25.71
Add to Cart
15
Check Valve

Check Valve

by Whirlpool
Part Number AP2910020

 (1)
Our Price
$19.61
Add to Cart
16
Motor Gasket

Motor Gasket

by Whirlpool
Part Number AP2908993

Our Price
$18.76
Add to Cart
17
PUMP&MOTOR

PUMP&MOTOR

by Whirlpool
Part Number AP5305919

Our Price
$157.98
Add to Cart
18
Grind Bushing

Grind Bushing

by Whirlpool
Part Number AP2904417

  • Not available
19
Drain & Wash Impeller Kit

Drain & Wash Impeller Kit

by Whirlpool
Part Number AP3115180

 (3)
Our Price
$30.56
Add to Cart
20

Drain Impeller Sleeve

by Whirlpool
Part Number AP2920877

  • Not available
22
Drain Cover Seal

Drain Cover Seal

by Whirlpool
Part Number AP2904421

Our Price
$4.02
Add to Cart
23

Cover, Drain Sump

by Whirlpool
Part Number AP3115151

  • Not available
24
Drain & Wash Impeller Kit

Drain & Wash Impeller Kit

by Whirlpool
Part Number AP3115180

 (3)
Our Price
$30.56
Add to Cart
25
Pump Base Kit

Pump Base Kit

by Whirlpool
Part Number AP3120030

Our Price
$48.18
Add to Cart
26
Pump & Motor Mounting Support

Pump & Motor Mounting Support

by Whirlpool
Part Number AP2904982

Our Price
$3.52
Add to Cart
27
Motor Shaft Slinger

Motor Shaft Slinger

by Whirlpool
Part Number AP3059124

Our Price
$4.29
Add to Cart
28
Motor-Pump

Motor-Pump

by Whirlpool
Part Number AP3604401

Our Price
$129.85
Add to Cart
29

Screw

by Whirlpool
Part Number AP2909762

  • Not available
30
Pump Seal Kit

Pump Seal Kit

by Whirlpool
Part Number AP2920708

Our Price
$18.59
Add to Cart
31
Pump Housing Centering Tool

Pump Housing Centering Tool

by Whirlpool
Part Number AP2908817

Our Price
$24.12
Add to Cart
32
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.93
Add to Cart
33
Drain Hose Assembly

Drain Hose Assembly

by Whirlpool
Part Number AP3083678

Our Price
$26.86
Add to Cart
34
Drain Line Cap

Drain Line Cap

by Whirlpool
Part Number AP2920710

Our Price
$3.53
Add to Cart
35

Weight & Shaft

by Whirlpool
Part Number AP3115161

Our Price
$24.71
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36

Weight & Shaft

by Whirlpool
Part Number AP3115161

Our Price
$24.71
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
37
Cycling Thermostat Kit

Cycling Thermostat Kit

by Whirlpool
Part Number AP3115144

Our Price
$28.00
Add to Cart
38
O-Ring

O-Ring

by Whirlpool
Part Number AP2920714

Our Price
$3.53
Add to Cart
39

Thermostat Retainer

by Whirlpool
Part Number AP2920715

Our Price
$3.53
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
40
Drain Cover Gasket

Drain Cover Gasket

by Whirlpool
Part Number AP2920880

Our Price
$4.24
Add to Cart

Side Panel Kit (white)

by Whirlpool
Part Number AP3053495

Our Price
$159.49
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Side Panel Kit (black)

by Whirlpool
Part Number AP3053496

  • Not available

Frameless Outer Door Kit (white)

by Whirlpool
Part Number AP3053509

  • Not available

Frameless Outer Door Kit (black)

by Whirlpool
Part Number AP3053510

Our Price
$154.52
Add to Cart

Frameless Outer Door Kit (almond)

by Whirlpool
Part Number AP3053511

  • Not available

Side Panel Kit (almond)

by Whirlpool
Part Number AP3053522

  • Not available

Guide, Energy

by Whirlpool
Part Number AP3053543

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.09
Add to Cart

This Document Is Not Available

by Whirlpool
Part Number AP3079432

  • Not available
Floor Mount Kit

Floor Mount Kit

by Whirlpool
Part Number AP3080195

Our Price
$8.62
Add to Cart

Tech Sheet (english)

by Whirlpool
Part Number AP3080223

  • Not available

Tech Sheet (french)

by Whirlpool
Part Number AP3080224

  • Not available
Power Cord Kit

Power Cord Kit

by Whirlpool
Part Number AP3081233

Our Price
$12.54
Add to Cart
Outer Door Panel Kit (almond)

Outer Door Panel Kit (almond)

by Whirlpool
Part Number AP3115183

Our Price
$58.99
Add to Cart

Guide, Use & Care Tech Sheet

by Whirlpool
Part Number AP3128670

  • Not available
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

Our Price
$4.00
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

Our Price
$4.65
Add to Cart

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$7.19
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$11.60
Add to Cart
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$78.35
Add to Cart

Panel

by Whirlpool
Part Number AP5631264

Our Price
$142.50
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Panel

by Whirlpool
Part Number AP5646320

Our Price
$126.92
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Glisten Dishwasher Cleaner

Glisten Dishwasher Cleaner

by Pro
Part Number AP5691612

Our Price
$6.18
Add to Cart
