Assy-

Part Number: AP4209074
MFG Part Number: DC97-03716C
Made by: Samsung
Our Price
$15.83
Regularly You Save
$18.84 $3.01

In Stock — Ships Today Guaranteed

Questions & Answers

2 Questions & Answers



Genuine Samsung part.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to determine if this part will work with your appliance.

Where can I find my model number?

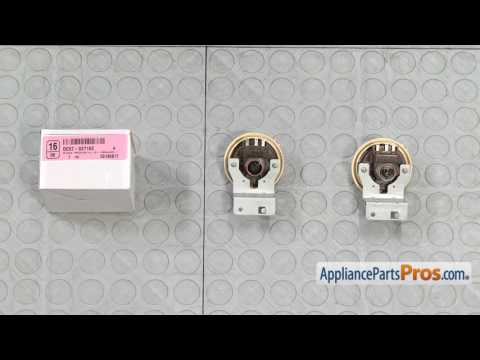

More Product Images

Repair Help


Cross Reference Information

Part Number DC97-03716C (AP4209074) replaces 2074918.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Ask a Question

Most Interesting

The machine displayed OE error code. I removed the dl-s14t pressure switch & checked continuity between terminals. The 2 outer terminals are closed & do not open when I blow through tube on switch (I hear the diaphragm move the switch when I blow on it) The middle terminal is open to both outer terminals & does not change. Based on this test, I ordered new switch #dc97-03716c from you. Is this the correct test & did I order the correct switch?

Gary for Model Number WF219ANW/XAA-0000

Answer

Was this helpful?

Looking at part #ap4209074 pressure switch. I suspect it is faulty. I am checking about 20 ohm resistance between the two outside terminals but applying pressure to the line that connects to the diaphram I can hear movement in the switch but there is no switching taking place. No resistance change nor any continuity between the center pole and either of the outside terminals. Question how do you check this switch? I am having erratic operation of the drain pump and the pump is fine. Caught between ordering a complete control board or making sure this switch is the problem. Thanks.

Ronald for Model Number samsung wf306law/xaa

Answer

Was this helpful?
