Evaporator Assembly

Part Number: AP4171999
MFG Part Number: DA96-00020Q
Made by: Samsung
Our Price
$83.30
Regularly You Save
$99.96 $16.66

In Stock — Ships Monday Guaranteed

Satisfaction Rating (4)

Questions & Answers

67 Questions & Answers



Description

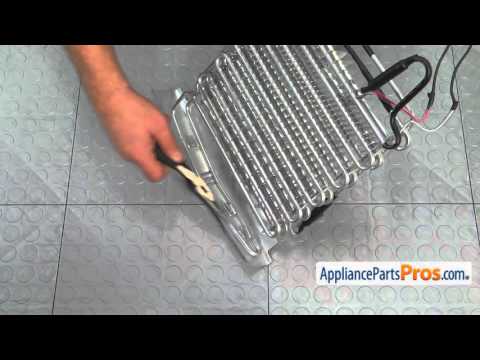

This refrigerator evaporator assembly includes two DA60-00040A spacers, two DA60-00041A spacers, one DA32-00006W sensor, one DA47-00095E sensor, mounting clip DA61-00453A and the defrost heater. Defrost heater not available separate.

Genuine Samsung part. See all items in Refrigerator Evaporator.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to determine if this part will work with your appliance.

Where can I find my model number?

More Product Images

Repair Help


Cross Reference Information

Part Number DA96-00020Q (AP4171999) replaces DA96-00020G, 1603261.

Do-It-Yourself Stories from Customers like You
Total Satisfaction Rating
(4)
View All Do-It-Yourself Stories Have questions? Ask our pros!
Bad defrost heater on refrigerator evaporator Steve W. • Vista, CA • July 04, 2014
Appliance: Model SAMSUNG

My Repair & Advice

Was this review helpful to you?

Most Helpful Stories

4 People found this story helpful
Do-It-Yourself Rating
  • 1
  • 2
  • 3
  • 4
  • 5
Easy Difficult
Repair Time Estimate

1-2 hours

Bad defrost heater and sensor (display showing code 3 at startup) Kenneth P. • Centerville, GA • September 22, 2014
Appliance: Samsung Samsung Refrigeration RS2578BB/XAA

My Repair & Advice

Was this review helpful to you?

3 People found this story helpful
Do-It-Yourself Rating
  • 1
  • 2
  • 3
  • 4
  • 5
Easy Difficult
Repair Time Estimate

1-2 hours

Refrigerator defroster burned out and ref warmed up due to ice build up Ronald S. • Snohomish, WA • November 16, 2014
Appliance: Samsung Samsung Refrigeration RS257BARB/XAA

My Repair & Advice

Was this review helpful to you?


Do-It-Yourself Rating
  • 1
  • 2
  • 3
  • 4
  • 5
Easy Difficult
Repair Time Estimate

1-2 hours

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Read all 67 Questions

Ask a Question

Most Interesting

Model RS267LASH is not listed in the cross reference and model information list below. Can you confirm that this is indeed the correct part (AP4171999) for this specific model? Another website has DA96-00021N (Samsung part number I believe) as the correct part for RS267LASH. Thanks, Will

Will N. for Model Number RS267LASH

Answer

1 person found this answer helpful.

Was this helpful?

My Samsung RS255BASB is not working, the freezer temperature reads 58 deg. and the Refrigerator temperature reads 59 deg. F. I unplugged the unit and left it unplugged for overnight and it starts working for a few hours, then stopped working again. What may be the problem? It appears both sides of the refrigerator is malfunctioning.

Hopeful Pedro for Model Number RS255BASB

Answer

Was this helpful?

I need to order the evaporator assembly AP4171999. I read a customer response about the part leading me to believe that I won't have to solder or worry about freon escaping It follows: Bad defrost heater and sensor (display showing code 3 at startup) Kenneth P. • Centerville, GA • September 22, 2014 Appliance: Samsung Samsung Refrigeration RS2578BB/XAA My Repair & Advice Purchased new evaporator/heater/sensor assembly from appliance parts. Removed new heater, sensor and wire harness from new assembly and from existing unit in refrig section. Then installed new heater and sensor on old refrig evaporator, avoiding complex soldering and recharge with Freon. Once repaired all failure indications cleared and refrigerator section performing like new. Also purchased new heater for water tank and several broken plastic parts that went in in 2 minutes. Changed door light switch which had become intermittent. Was this review helpful to you? 2 Read more: http://www.appliancepartspros.com/samsung-evaporator-assembly-da96-00020q-ap4171999.html#ixzz3HNs4fuSz http://www.appliancepartspros.com But, the parts ordering person says that it needs to be soldered. Which is correct? All service sites that I have contacted are a week out on any service calls! Also, I measured the resistance of my drain heater and it measure 4300 ohms, Part number AP4137756. Is that OK? Sounds a little high as it would yield about 3.5 Watts. Please advise soon so that I can possibly fix this myself. I am vey technical but don't have HVAC tools. - Thank you!

Robert B for Model Number RS267LASH/XAA

Answer

Was this helpful?

Latest Questions

My Refrigerator is warm (60) but the freezer is OK (-6). This is after I got 34 on the frig and flashing and pulled the power for 10 mins to reset things. I pulled the freezer inside back panel and the unit was not really frozen up, just a little frost. The circulation fan is running but I don't feel that much air blowing in the frige side with the door switch closed. What do you think I need? I opened the freezer door with the power off for about 15 mins and observed no Ice or frost, put the panel with fan back in and am observing the results. so far after about 1 1/2 hours I have 14 on the freezer and 63 on the fridge. I think that maybe the fridge won't get any cold air until the freezer reaches temp. ( I set it to a higher 8 degrees just to see if the fridge side starts dropping.) I don't know if my assumption is correct or not.

Robert B for Model Number RS267LASH/XAA

Answer

Was this helpful?

I am having the evaporative coil freeze up after a week or so (fridge side) ...I checked at the connect (red white) that comes of the ends if the tubes top and bottom of the coils...I believe this is the heater... Iam reading an open...Is my heater the problem...thanks

Joe for Model Number rs2545sh

Answer

Was this helpful?

The refrigerator is cool but the freezer and both ice makers top and bottom not making ice.

Roger for Model Number RF268ABWP/XAA-0000

Answer

Was this helpful?
