How hard is it to replace part #AP4138804 ? Or if necessary, part number AP4136842 and is there any place to get a drawing as to the location of the part?
Wade for Model Number rs2545sh

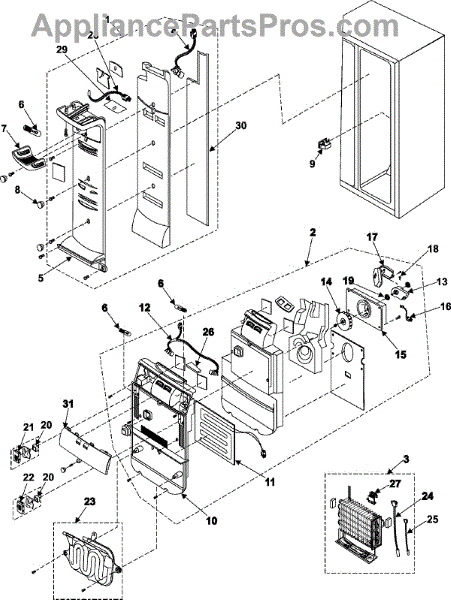

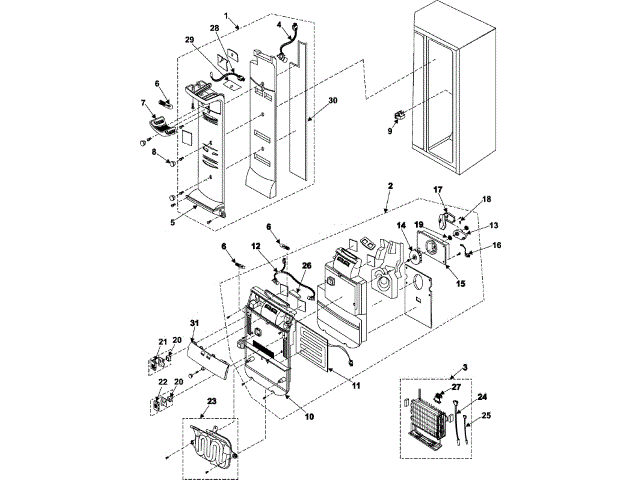

Answer Hi Wade. They do not show a pictorial view of the placement of the senser clip. It is part # DA61-00453A. It is clipped inside the upper and lower fresh food and freezer cavities. They hold in the sensor/ thermisters of each cavity that hace been upgraded. The senser is part # DA32-00006W. Thank you.
