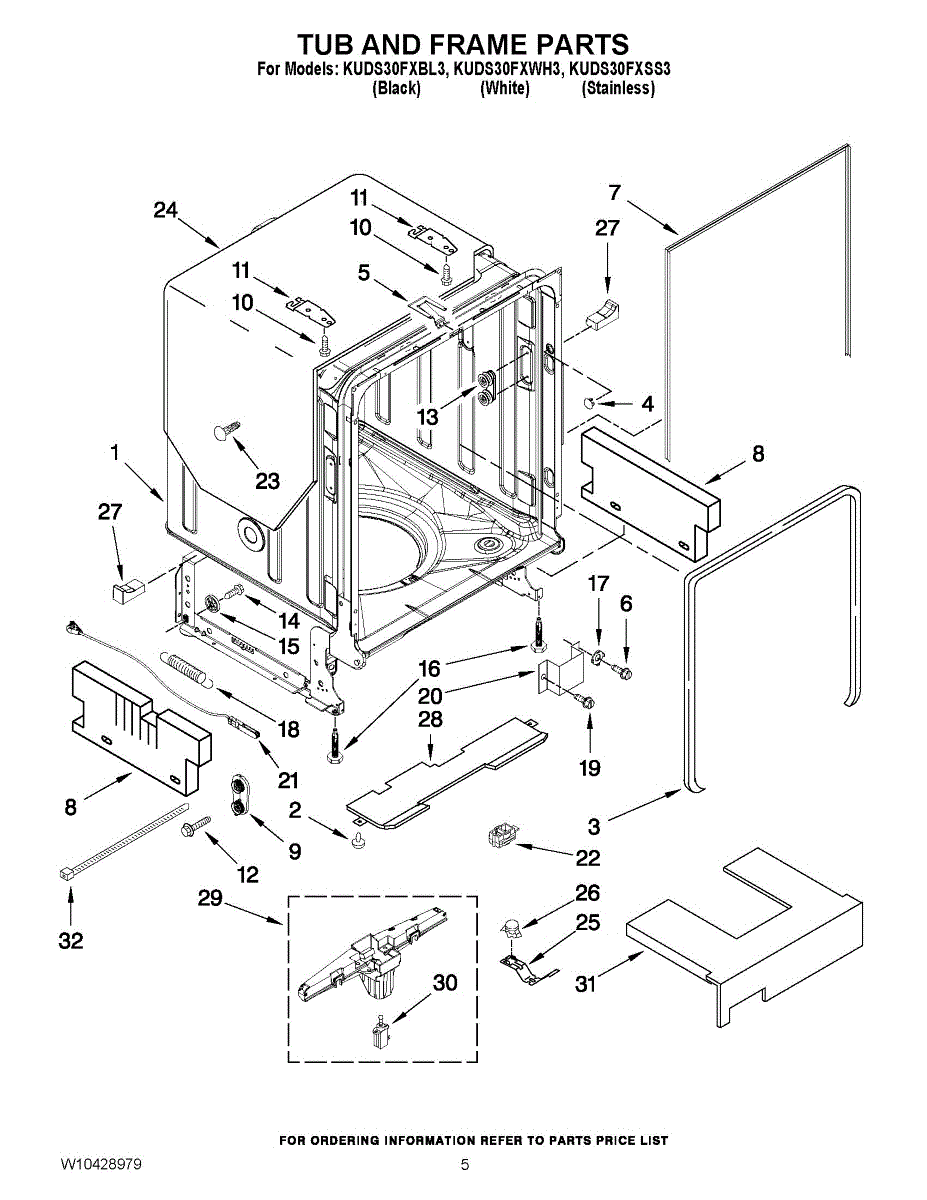

Parts for KitchenAid KUDS30FXBL3: Tub and Frame Parts

Start New Search

Undercounter Dishwasher

Location on Diagram Part Description Price & Availability
1

Service Tub-Atl, Hv

by Whirlpool
Part Number AP5669785

Our Price
$214.11
Add to Cart
2
Retainer (push-In)

Retainer (push-In)

by Whirlpool
Part Number AP3039246

Our Price
$20.60
Add to Cart
3
Gasket

Gasket

by Whirlpool
Part Number AP4567679

 (1)
Our Price
$48.57
Add to Cart
4
Cap

Cap

by Whirlpool
Part Number AP4295748

Our Price
$28.50
Add to Cart
5
Plate-Latch Strike

Plate-Latch Strike

by Whirlpool
Part Number AP4981917

Our Price
$26.85
Add to Cart
6

Screw

by Whirlpool
Part Number AP3044675

Our Price
$4.24
Add to Cart
7
Seal

Seal

by Whirlpool
Part Number AP4410816

 (1)
Our Price
$34.37
Add to Cart
8

Shield

by Whirlpool
Part Number AP4588488

Our Price
$21.37
Add to Cart
9
Mount

Mount

by Whirlpool
Part Number AP4357042

Our Price
$15.00
Add to Cart
10
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$1.93
Add to Cart
11
Undercounter Bracket

Undercounter Bracket

by Whirlpool
Part Number AP3039168

 (5)
Our Price
$7.11
Add to Cart
12
Screw

Screw

by Whirlpool
Part Number AP3039169

Our Price
$4.24
Add to Cart
13
Wheel-Tub

Wheel-Tub

by Whirlpool
Part Number AP5644243

 (1)
Our Price
$3.37
Add to Cart
14

Screw

by Whirlpool
Part Number AP5607073

Our Price
$20.28
Add to Cart
15
Wheel Leg

Wheel Leg

by Whirlpool
Part Number AP3039170

Our Price
$7.91
Add to Cart
16
Leg, Leveling

Leg, Leveling

by Whirlpool
Part Number AP3138177

Our Price
$25.89
Add to Cart
17

Washer, Pronged

by Whirlpool
Part Number AP3129620

Our Price
$4.25
Add to Cart
18
Door Balance Spring

Door Balance Spring

by Whirlpool
Part Number AP3039172

 (1)
Our Price
$12.39
Add to Cart
19
Screw

Screw

by Whirlpool
Part Number AP4514540

Our Price
$3.53
Add to Cart
20
Cover, Terminal Box

Cover, Terminal Box

by Whirlpool
Part Number AP3039174

Our Price
$26.33
Add to Cart
21
Door Balance Link Kit
Sale

Door Balance Link Kit

by Whirlpool
Part Number AP3775412

 (20)
Our Price
$17.95
Add to Cart
22

Housing

by Whirlpool
Part Number AP4539731

Our Price
$21.43
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
23
Push Retainer

Push Retainer

by Whirlpool
Part Number AP2909540

Our Price
$24.64
Add to Cart
24
Insulation

Insulation

by Whirlpool
Part Number AP3875491

Our Price
$54.20
Add to Cart
25

Brckt-Stat

by Whirlpool
Part Number AP5271008

Our Price
$21.99
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
26
Thermostat

Thermostat

by Whirlpool
Part Number AP4538380

Our Price
$21.32
Add to Cart
27

Spacer-Tnk

by Whirlpool
Part Number AP4566976

Our Price
$21.44
Add to Cart
27

Spacer-Tnk

by Whirlpool
Part Number AP4566977

Our Price
$21.45
Add to Cart
28

Pad-Ins

by Whirlpool
Part Number AP4588455

Our Price
$21.37
Add to Cart
29

Use Wpl 8557689

by Whirlpool
Part Number AP3881352

Our Price
$33.81
Add to Cart
30
Motor-Wax

Motor-Wax

by Whirlpool
Part Number AP4500248

Our Price
$20.78
Add to Cart
31
Insulation

Insulation

by Whirlpool
Part Number AP5328679

Our Price
$29.79
Add to Cart
32
Tie-Wire

Tie-Wire

by Whirlpool
Part Number AP3179457

Our Price
$3.53
Add to Cart
