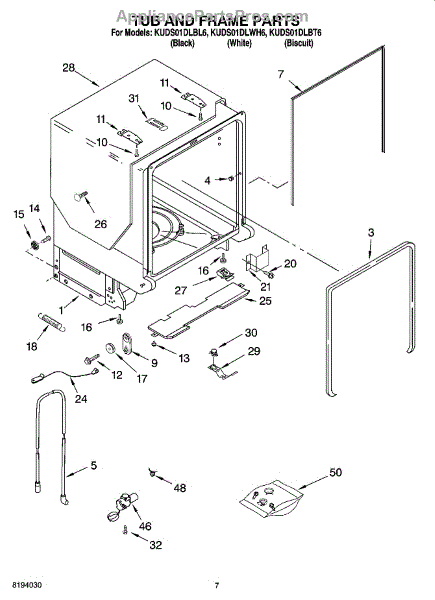

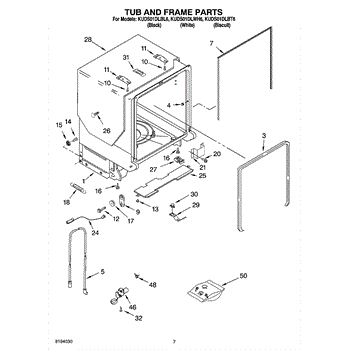

Parts for KitchenAid KUDS01DLBT6: Tub and Frame Parts

Start New Search

Undercounter Dishwasher

Location on Diagram Part Description Price & Availability
1

Tub-Dishwr

by Whirlpool
Part Number AP3964513

  • Not available
3
Door Gasket Kit

Door Gasket Kit

by Whirlpool
Part Number AP3672571

Our Price
$43.86
Add to Cart
4
Cap

Cap

by Whirlpool
Part Number AP4295748

Our Price
$29.32
Add to Cart
5
Hose, Drain

Hose, Drain

by Whirlpool
Part Number AP3178188

 (2)
Our Price
$32.23
Add to Cart
7
Seal

Seal

by Whirlpool
Part Number AP4410816

 (1)
Our Price
$35.27
Add to Cart
9
Door Balance Link Kit
Sale

Door Balance Link Kit

by Whirlpool
Part Number AP3775412

 (23)
Our Price
$17.95
Add to Cart
10
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$2.60
Add to Cart
11
Undercounter Bracket

Undercounter Bracket

by Whirlpool
Part Number AP3039168

 (6)
Our Price
$7.42
Add to Cart
12
Screw

Screw

by Whirlpool
Part Number AP3039169

Our Price
$4.43
Add to Cart
13
Retainer (push-In)

Retainer (push-In)

by Whirlpool
Part Number AP3039246

Our Price
$21.42
Add to Cart
14
Screw

Screw

by Whirlpool
Part Number AP2920758

Our Price
$4.44
Add to Cart
15
Wheel Leg

Wheel Leg

by Whirlpool
Part Number AP3039170

Our Price
$8.23
Add to Cart
16
Leg, Leveling

Leg, Leveling

by Whirlpool
Part Number AP3138177

Our Price
$26.57
Add to Cart
17
Door Balance Link Kit
Sale

Door Balance Link Kit

by Whirlpool
Part Number AP3775412

 (23)
Our Price
$17.95
Add to Cart
18
Door Balance Spring

Door Balance Spring

by Whirlpool
Part Number AP3039172

 (1)
Our Price
$12.89
Add to Cart
20
Screw

Screw

by Whirlpool
Part Number AP3045956

  • Not available
21
Cover, Terminal Box

Cover, Terminal Box

by Whirlpool
Part Number AP3039174

Our Price
$26.97
Add to Cart
24
Door Balance Link Kit
Sale

Door Balance Link Kit

by Whirlpool
Part Number AP3775412

 (23)
Our Price
$17.95
Add to Cart
25
Pad-Ins

Pad-Ins

by Whirlpool
Part Number AP4539657

Our Price
$33.42
Add to Cart
26
Push Retainer

Push Retainer

by Whirlpool
Part Number AP2909540

Our Price
$25.21
Add to Cart
27
Clip, Grounding

Clip, Grounding

by Whirlpool
Part Number AP3039176

Our Price
$1.98
Add to Cart
28
Insulation

Insulation

by Whirlpool
Part Number AP3875491

Our Price
$55.75
Add to Cart
29
Thermostat Bracket

Thermostat Bracket

by Whirlpool
Part Number AP2920768

Our Price
$5.98
Add to Cart
30
High Limit Thermostat

High Limit Thermostat

by Whirlpool
Part Number AP3010530

 (1)
Our Price
$16.38
Add to Cart
31
Strike

Strike

by Whirlpool
Part Number AP3885288

 (1)
Our Price
$26.68
Add to Cart
32
Screw

Screw

by Whirlpool
Part Number AP3010928

Our Price
$2.46
Add to Cart
46
Switch, Pressure

Switch, Pressure

by Whirlpool
Part Number AP3182693

Our Price
$58.61
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
48
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$2.59
Add to Cart
50
Parts-Misc

Parts-Misc

by Whirlpool
Part Number AP4514602

Our Price
$26.26
Add to Cart
