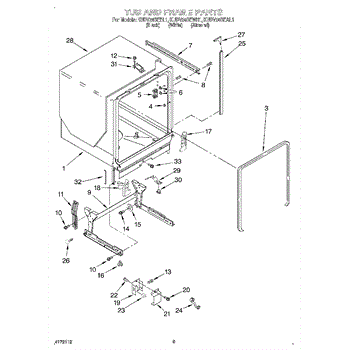

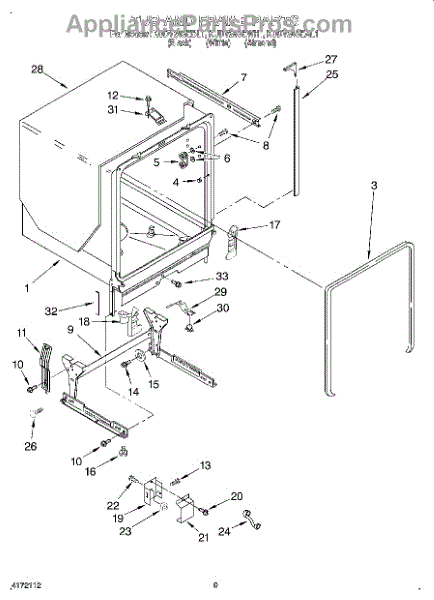

08-Tub and Frame Parts for Whirlpool KUDV24SEBL1

Start New Search

Under Counter Dishwasher

Location on Diagram Part Description Price & Availability
1
Tub Assembly

Tub Assembly

by Whirlpool
Part Number AP3124319

  • Not available
3
Door Gasket

Door Gasket

by Whirlpool
Part Number AP3969232

 (1)
Our Price
$32.84
Add to Cart
4

Tub Plug Button

by Whirlpool
Part Number AP2920750

  • Not available
5
Wheel Assembly (upper Rack)

Wheel Assembly (upper Rack)

by Whirlpool
Part Number AP2920751

Our Price
$3.65
Add to Cart
6
Mounting Bracket Gasket

Mounting Bracket Gasket

by Whirlpool
Part Number AP2920752

Our Price
$3.75
Add to Cart
7

Tub Stiffener

by Whirlpool
Part Number AP2920753

  • Not available
8
Screw

Screw

by Whirlpool
Part Number AP5331738

Our Price
$3.69
Add to Cart
9

Rear Support Assembly

by Whirlpool
Part Number AP2920755

  • Not available
10

Screw

by Frigidaire
Part Number AP2154142

Our Price
$0.82
Add to Cart
11

Connector Tub to Brace

by Whirlpool
Part Number AP2920756

  • Not available
12
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.50
Add to Cart
13
Screw

Screw

by Whirlpool
Part Number AP3134934

Our Price
$2.36
Add to Cart
14
Screw

Screw

by Whirlpool
Part Number AP2920758

Our Price
$3.32
Add to Cart
15
Wheel Leg

Wheel Leg

by Whirlpool
Part Number AP2920759

Our Price
$3.30
Add to Cart
16
Leg, Leveling

Leg, Leveling

by Whirlpool
Part Number AP3138177

Our Price
$23.03
Add to Cart
17
Lower Door Seal Kit

Lower Door Seal Kit

by Whirlpool
Part Number AP3102987

 (2)
Our Price
$26.49
Add to Cart
18
Lower Door Seal Kit

Lower Door Seal Kit

by Whirlpool
Part Number AP3102987

 (2)
Our Price
$26.49
Add to Cart
19

Terminal Box

by Whirlpool
Part Number AP2920873

  • Not available
20

Screw

by Whirlpool
Part Number AP3010615

Our Price
$1.97
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
21
Power Supply Cover

Power Supply Cover

by Whirlpool
Part Number AP2909944

Our Price
$22.69
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
22

Screw

by Whirlpool
Part Number AP3138811

Our Price
$3.31
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
23
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3126895

Our Price
$1.93
Add to Cart
24

Strain Reliever

by Whirlpool
Part Number AP3136034

Our Price
$15.81
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
25

Tub Trim Strip

by Whirlpool
Part Number AP2920765

  • Not available
26
Push Retainer

Push Retainer

by Whirlpool
Part Number AP2909540

Our Price
$22.25
Add to Cart
27

Tank Corner Trim

by Whirlpool
Part Number AP2920766

  • Not available
28
Cabinet Shield

Cabinet Shield

by Whirlpool
Part Number AP3885201

Our Price
$52.12
Add to Cart
29
Thermostat Bracket

Thermostat Bracket

by Whirlpool
Part Number AP2920768

Our Price
$5.71
Add to Cart
30
Hi-Limit Thermostat

Hi-Limit Thermostat

by Whirlpool
Part Number AP3010530

 (1)
Our Price
$19.09
Add to Cart
31
Latch Strike

Latch Strike

by Whirlpool
Part Number AP2920770

  • Not available
32

Friction Pad Black

by Whirlpool
Part Number AP3046169

Our Price
$17.72
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
33
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$1.93
Add to Cart

Instructions, Installation

by Whirlpool
Part Number AP3053491

  • Not available

Side Panel Kit (white)

by Whirlpool
Part Number AP3053495

Our Price
$159.49
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Side Panel Kit (black)

by Whirlpool
Part Number AP3053496

  • Not available

Energy Guide

by Whirlpool
Part Number AP3053506

  • Not available

Guide, Use & Care

by Whirlpool
Part Number AP3053507

  • Not available

Frameless Outer Door Kit (white)

by Whirlpool
Part Number AP3053509

  • Not available

Frameless Outer Door Kit (black)

by Whirlpool
Part Number AP3053510

Our Price
$154.35
Add to Cart

Frameless Outer Door Kit (almond)

by Whirlpool
Part Number AP3053511

  • Not available

Side Panel Kit (almond)

by Whirlpool
Part Number AP3053522

  • Not available

Svc Manual

by Whirlpool
Part Number AP3053525

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.01
Add to Cart
Floor Mount Kit

Floor Mount Kit

by Whirlpool
Part Number AP3080195

Our Price
$8.70
Add to Cart
Power Cord Kit

Power Cord Kit

by Whirlpool
Part Number AP3081233

Our Price
$9.11
Add to Cart
Outer Door Panel Kit (almond)

Outer Door Panel Kit (almond)

by Whirlpool
Part Number AP3115183

Our Price
$49.59
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

Our Price
$3.57
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

Our Price
$4.65
Add to Cart

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$6.95
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$11.60
Add to Cart
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$73.05
Add to Cart

Panel

by Whirlpool
Part Number AP5631264

Our Price
$142.50
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart

Panel

by Whirlpool
Part Number AP5646320

Our Price
$126.92
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
