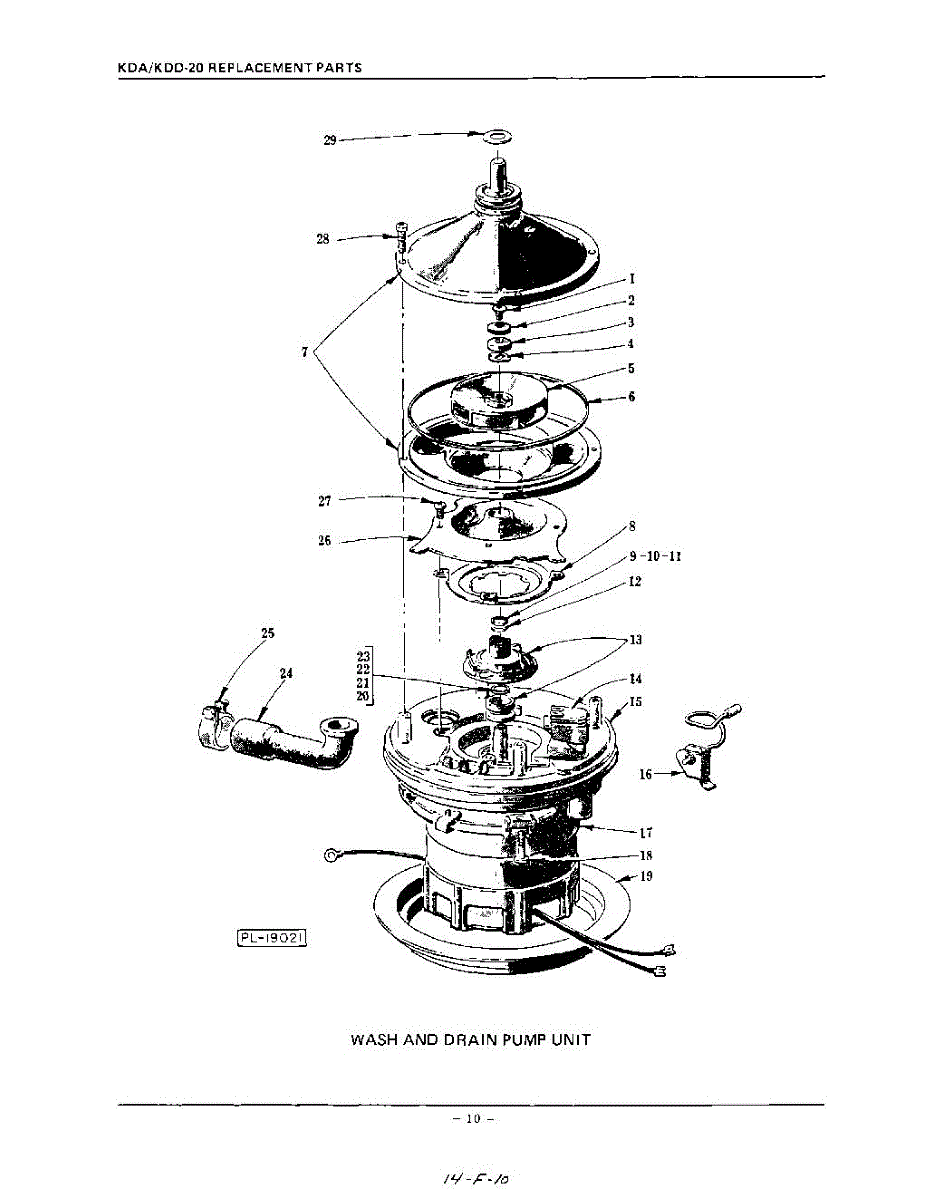

07-Wash and Drain Pump Parts for Whirlpool KDD20

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1

Mach. Screw-NO.10-32 X 7/16`` Phil. Truss Head

by Whirlpool
Part Number AP2931049

  • Not available
2

Washer-Spring (impeller)

by Whirlpool
Part Number AP2931050

  • Not available
3

Cap-Washer

by Whirlpool
Part Number AP2931051

  • Not available
4

Washer-Key

by Whirlpool
Part Number AP2931052

  • Not available
5

Impeller-Wash Pump

by Whirlpool
Part Number AP2931053

  • Not available
6

Gasket-Ring (wash Pump)

by Whirlpool
Part Number AP2931054

  • Not available
7
  • Not available
8

Top-Drain Pump

by Whirlpool
Part Number AP2931056

  • Not available
9

Washer-Shim (.005`` Thk.)

by Whirlpool
Part Number AP2931057

  • Not available
10

Washer-Shim (.015`` Thk.)

by Whirlpool
Part Number AP2931058

  • Not available
11

Washer-Shim (.030`` Thk.)

by Whirlpool
Part Number AP2931059

  • Not available
12

``o`` Ring

by Whirlpool
Part Number AP2931060

  • Not available
13
  • Not available
14

Channel-Drain (top Half)

by Whirlpool
Part Number AP2931062

  • Not available
15

Plate-Motor Mounting

by Whirlpool
Part Number AP2931063

  • Not available
16

Motor Clamp Assembly

by Whirlpool
Part Number AP2930929

  • Not available
17
  • Not available
18

Mach. Screw 1/4-20 X 1 Pan Head

by Whirlpool
Part Number AP2932051

  • Not available
19

Gasket-Motor Mounting Plate

by Whirlpool
Part Number AP2931066

  • Not available
20

Washer-Shim (.005`` Thk.)

by Whirlpool
Part Number AP2931067

  • Not available
21

Washer-Shim (.015`` Thk.)

by Whirlpool
Part Number AP2931068

  • Not available
22

Washer-Shim (.030`` Thk.)

by Whirlpool
Part Number AP2931069

  • Not available
23

Washer-Shim (.048`` Thk.)

by Whirlpool
Part Number AP2931070

  • Not available
24

Connector-Overhead

by Whirlpool
Part Number AP2931071

  • Not available
25

Clamp-Hose (1.468`` Dia.)

by Whirlpool
Part Number AP2930935

  • Not available
26

Cover-Inlet

by Whirlpool
Part Number AP2931072

  • Not available
27

Mach. Screw 8-32 X 1/2 Phil. Pan Head

by Whirlpool
Part Number AP2932045

  • Not available
28

Mach. Screw 10-24 X 1 Phil. Pan Head

by Whirlpool
Part Number AP2932016

  • Not available
29

Washer-Wear

by Whirlpool
Part Number AP2930936

  • Not available
