Replaced motor with 12002353 motor. What is wiring diagram for 12002353 motor?
Answer JT Stinson,
The wire harness that comes with the part will have the same color wires on it that the original harness and would connect in the same pattern. Brown to brown, orange to orange, yellow to yellow, red to red, black to black, and white to white.
Washer fills with water, but there is no agitation. There is no motor hum when the washer should be agitating. It is as if the motor is not getting the signal that it is time to start agitating. However, the spin cycle works fine--water drains and machine spins and the timer advances the spin cycle ok. I tried replacing the timer, part no. 206228, but it doesn't change anything. Any advice?
Answer Robert, First check the speed control switch, make sure one of the buttons is pressed and locked down in place, then check the switch circuit. Since you've already tried a timer, and you're sure you wired it correctly, you'll need to check the wires to the motor for damage or loose connections. The timer reverses the polarity (direction of electrical current) to the motor to make it reverse directions, if the motor runs in the spin cycle, it should also run in the agitate direction as well.

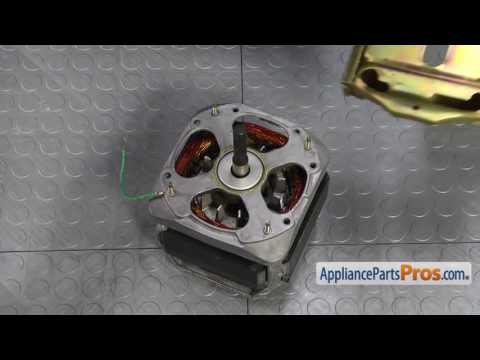

We just purchased Part Number: AP4009168 motor and jumper - and see that the wiring colors and locations of the jumper that was included do not match up with those on the motor.
Should we use this anyway or did you send the wrong jumper?
Answer Frank, The Black multi plug cobnnector is attached to the centrifugal switch on the motor, it only fits one way,and locks in place if done properly. The individual wires with the clear plastic terminal covers, attach to the corresponding colored wire in the cabinet wire harness to the motor.
